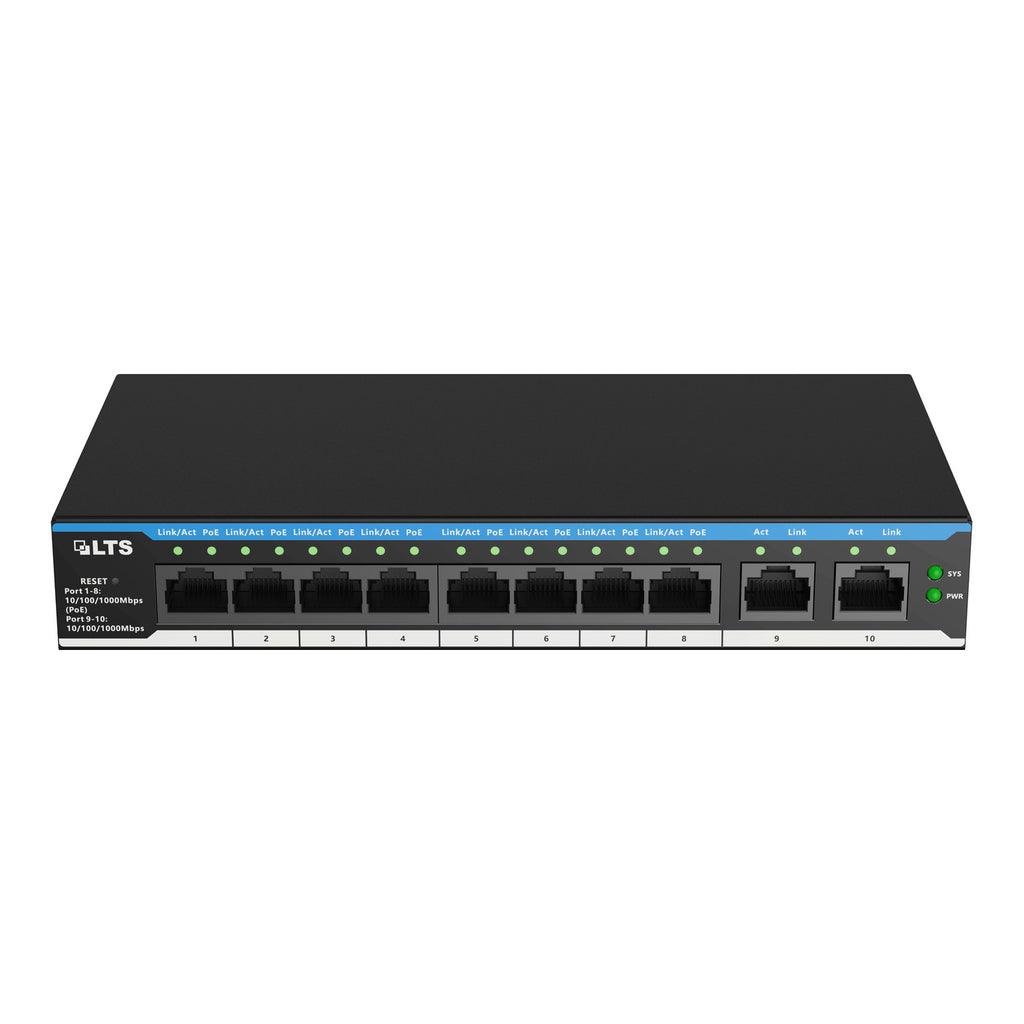

LTS XCPOE-SW802G Pro-X, 10-Port Cloud Managed Desktop Switch with 8-Port PoE
Sale price
$163.90
Regular price
$215.00
Skip to product information
LTS XCPOE-SW802G Pro-X, 10-Port Cloud Managed Desktop Switch with 8-Port PoE
Sale price
$163.90
Regular price
$215.00
The LPS1108-E PoE Injector/Extender/Repeater enhances network reach and power delivery for PoE devices, supporting IEEE 802.3af/at standards with up to 30 W PoE output per port, automatic power negotiation, and plug-and-play operation. It extends PoE beyond standard cable limits for flexible IP camera deployments, improves installation simplicity, and offers reliable performance and durability for professional surveillance networks.
Features
- 8 x Gigabit PoE ports
- 2 x Gigabit uplink ports (2 x RJ-45 ports)
- 110W PoE power budget
- IEEE802.3af, IEEE802.3at, and IEEE802.3bt power supply standards.
- Easy-to-use web-based and Cloud-based management interface
- Extend PoE signal up to 820 ft./250m at 10Mbps
- 20Gbps switching capacity
Specifications
| Model | XCPOE-SW802G |
| General | |
| PoE Ports | 8 x 10/100/1000Mbps PoE/PoE+/PoE++ ports |
| Uplink Ports | 2 x 10/100/1000Mbps RJ-45 ports |
| PoE Standards | IEEE802.3af; IEEE802.3at(PoE+); IEEE802.3bt(PoE++) |
| Network Standards | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab |
| PoE Ports Power | Ports 1 ≤ 90 W(PoE++), Port 2-8 ≤ 30 W(PoE+) |
| Total Power Budget | 110W |
| PoE Pin Assignment | 1,2,4,5 (V+) ,3,6,7,8 (V-) |
| Performance | |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.8 Mpps |
| MAC Table Capacity | 8000 |
| Packet Buffer Size | 4.1 Mbit |
| MTBF | 127.3 years |
| Feature | |
| Layer | Layer 2 |
| Port Configuration | Port rate configuration, flow control, and ports enabling |
| PoE Watchdog | Ports 1 to 8 auto detect and restart the cameras that do not respond. |
| Long Distance Transmission | Up to 820 ft./250m at 10Mbps on PoE ports |
| VLAN | Port based VLAN |
| VLAN Number | 32 |
| IEEE 802.3x Flow Control | Support |
| Storm Control | Storm control of unknown unicast, multicast and broadcast |
| Port Mirroring | Support |
| Port Isolation | Support |
| LLDP | Support |
| Port Isolation | Support |
| DHCP Function | DHCP Client |
| Physical & Environmental | |
| Power Supply | 54 VDC, 2.22 A, external power supply |
| Power Consumption in Idle | 6W |
| Power Consumption in Total | 110 W |
| Surge Protection | Power port: 4 kV/2 kV Telecom port: 8 kV |
| Operating Temperature | "10 °C to +55 °C(+14 °F to +131 °F) |
| Storage Temperature | "40 °C to +70 °C("40 °F to +158 °F) |
| Operating Humidity | 5%"95% (RH), non-condensing |
| Storage Humidity | 5%"95% (RH), non-condensing |
| Dimensions | 190 mm x 106 mm x 30 mm (7.48" x 4.17" x 1.18") (L" W x H) |
| Net Weight | 0.55 kg (1.21 lb) |
| Gross Weight | 1.3 kg (2.87 lb) |
| Shell | Metal material |
| Certifications | FCC: Part 15 Subpart B |
