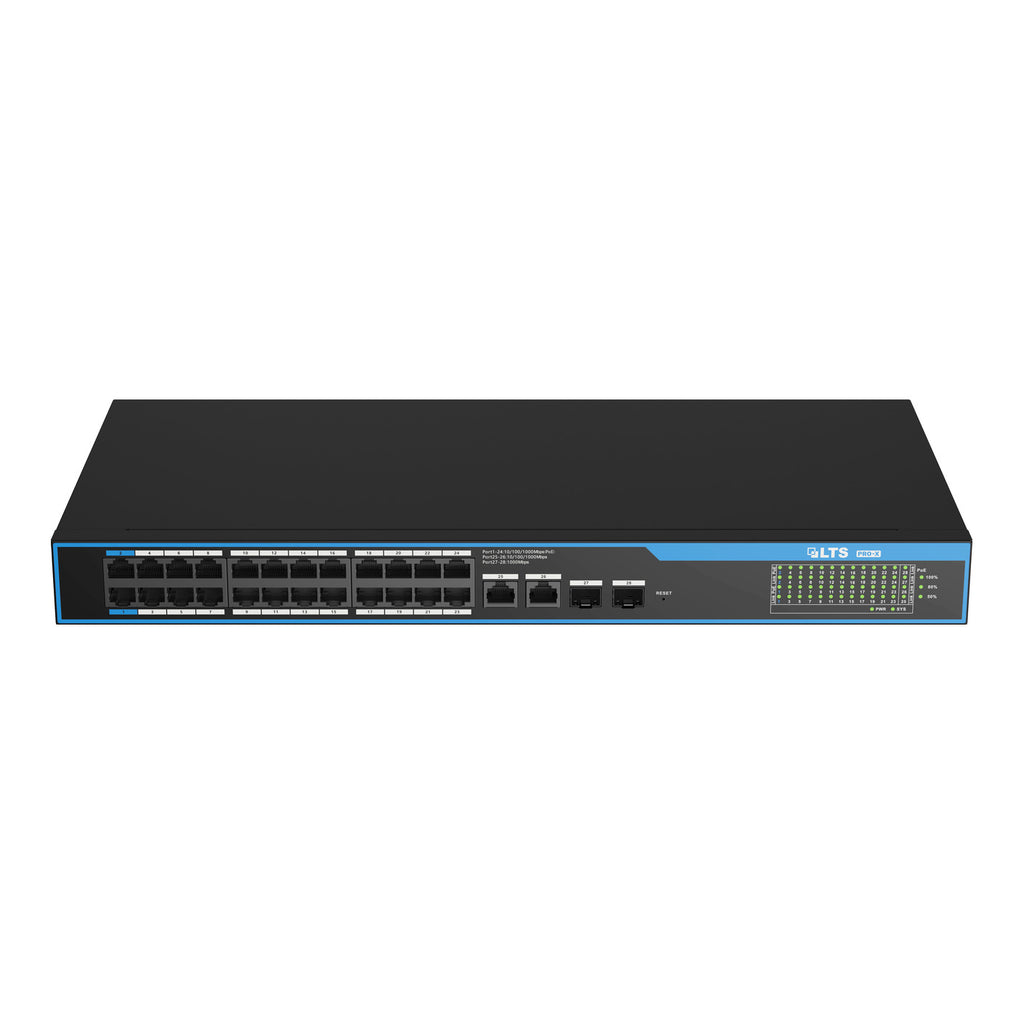

LTS XCPOE-SW2402G Pro-X, 28-Port Gigabit Swtich with 24 PoE ports
Sale price
$460.90
Regular price
$600.00
The LPS1102-E PoE Injector/Extender/Repeater delivers reliable PoE power and network extension for IP devices, supporting IEEE 802.3af/at standards with up to 30 W PoE output per port and automatic power negotiation. It simplifies long-distance camera installations by extending PoE reach beyond standard limits, offers plug-and-play setup, and provides durable performance and dependable connectivity for professional surveillance deployments.
Features
- 24 x Gigabit PoE ports
- 4 x Gigabit uplink ports (2 x SFP ports plus 2 x RJ-45 ports)
- 375W PoE power budget
- IEEE802.3af, IEEE802.3at, and IEEE802.3bt power supply standards.
- Easy-to-use web-based and Cloud-based management interface
- Extend PoE signal up to 820 ft./250m at 10Mbps
- 56Gbps switching capacity
Specifications
| Model | XCPOE-SW2402G |
| General | |
| PoE Ports | 24 x 10/100/1000Mbps PoE/PoE+/PoE++ ports |
| Uplink Ports | 2 x 100/1000Mbps SFP ports and 2 x 10/100/1000Mbps RJ-45 ports |
| PoE Standards | IEEE802.3af; IEEE802.3at(PoE+); IEEE802.3bt(PoE++) |
| Network Standards | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab;IEEE802.3z |
| PoE Ports Power | Ports 1-2 ≤ 90 W(PoE+), Port 3-24 ≤ 30 W(PoE+) |
| Total Power Budget | 375W |
| PoE Pin Assignment | 1,2,4,5 (V+) ,3,6,7,8 (V-) |
| Performance | |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 42 Mpps |
| MAC Table Capacity | 8000 |
| Packet Buffer Size | 4.1 Mbit |
| MTBF | 67.80 years |
| Feature | |
| Layer | Layer 2 |
| Port Configuration | Port rate configuration, flow control, and ports enabling |
| PoE Watchdog | Ports 1 to 24 auto detect and restart the cameras that do not respond. |
| Long Distance Transmission | Up to 820 ft./250m at 10Mbps on PoE ports |
| VLAN | Port based VLAN |
| VLAN Number | 32 |
| IEEE 802.3x Flow Control | Support |
| Storm Control | Storm control of unknown unicast, multicast and broadcast |
| Port Mirroring | Support |
| Port Isolation | Support |
| LLDP | Support |
| Port Isolation | Support |
| DHCP Function | DHCP Client |
| Physical & Environmental | |
| Power Supply | 100-240 VDC, 47-63 Hz, max 7 A, internal power supply |
| Power Consumption in Idle | 12.5W |
| Power Consumption in Total | 400 W |
| Surge Protection | Power port: 4 kV/2 kV Telecom port: 8 kV |
| Operating Temperature | "10 °C to +55 °C(+14 °F to +131 °F) |
| Storage Temperature | "40 °C to +70 °C("40 °F to +158 °F) |
| Operating Humidity | 5%"95% (RH), non-condensing |
| Storage Humidity | 5%"95% (RH), non-condensing |
| Dimensions | 440 mm x 220 mm x 44 mm (17.32" x 8.66" x 1.73") (L" W x H) |
| Net Weight | 2.66 kg (5.85 lb) |
| Gross Weight | 3.26 kg (7.17 lb) |
| Shell | Metal material |
| Certifications | FCC: Part 15 Subpart B |
