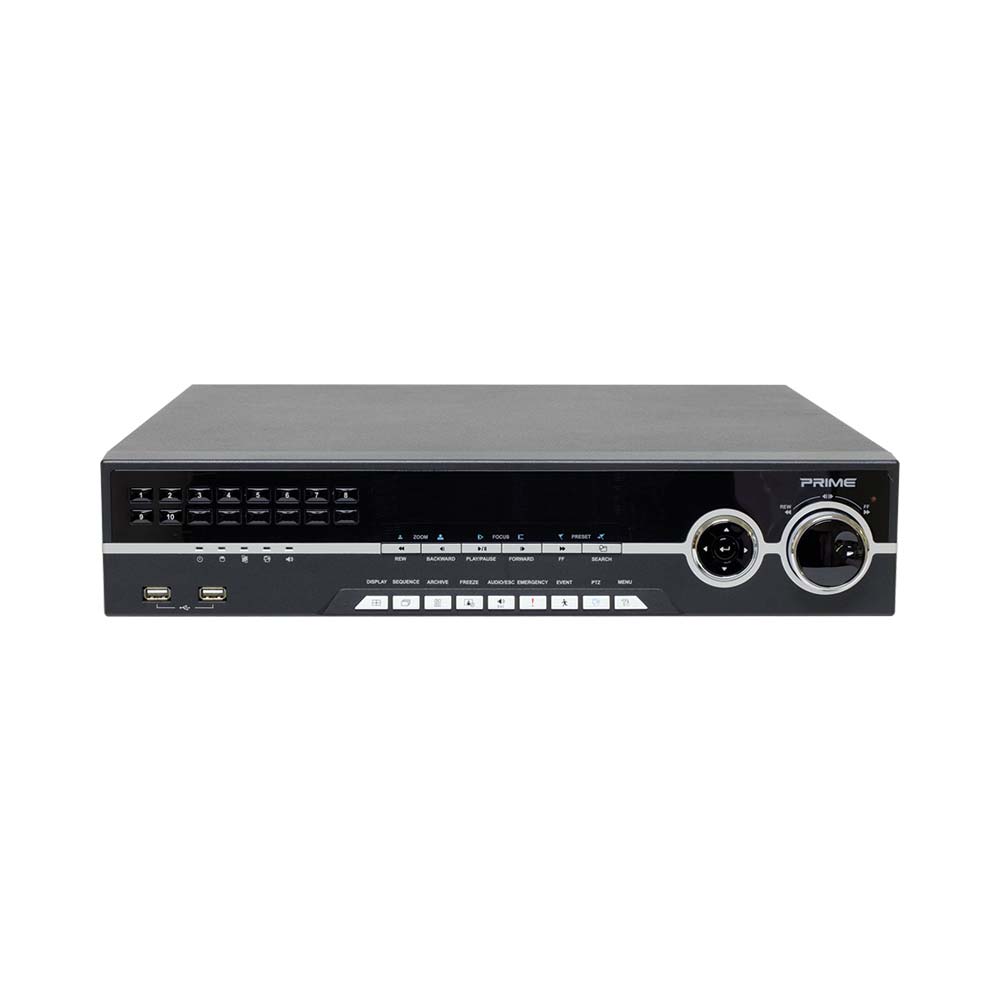

Prime DVST-ULTIMA-12 ULTIMA FULL D1 Recording
Sale price
$278.60
Regular price
$360.00
Skip to product information
Prime DVST-ULTIMA-12 ULTIMA FULL D1 Recording
Sale price
$278.60
Regular price
$360.00
360FPS D1 REALTIME REC • H.264 HIGH COMPRESSION CODEC • HIGH-RES CLEAR IMAGE QUALITY • HIGH SPEED NETWORK VIDEO TRANSMISSION • ROCK SOLID STABILITY • EASY TO OPERATE
- Real time Recording and playback
- Real HD Live Display and Playback
- Full Graphic User Interface (Multiple Language Support)
- SATA Support
- Full Graphic Scheduler
- Pre and Post Alarm & Motion Recording
- Individual Channel Recording Setup (Resolution ,Frame Rates and Quality)
- PTZ (Pan / Tilt / Zoom) Control
- External Storage Support (USB 2.0)
- 12ch Audio Input
- USB Mouse Compatible
- Mirroring
- POS Interface (Text Inserter)
- Powerful Client software (Live, Search, and Setup)
- Remote Access Via Internet Explorer (Live and Search)
- DDNS and Multi Port Support
- Embedded LINUX OS
- High Resolution & High Quality H.264 Algorithm
- Real Pentaplex Operation
- Dual Streaming – Independent Network Transmission
- Full GUI with alpha blending
- Individual setting of resolution, frame rates and picture quality
- Instant Replay
- Digital Zoom
- Mouse Control
- Weekly scheduler with holiday by 10 minutes setting
- Covert, Disable and Private function of cameras
- Motion Detection with 352 area setting
- Relay alarm output
- PTZ control by RS-485
- Daylight saving time and Network Time setting
- Multi User Authority up to 8 users
- De-interlace upon live and playback
- 12 languages with full graphic
- Individual Network port setting
- Auto Deletion
- Import and Export the configuration
- Private Area
- Dual CODEC engine for independent video transmission
- Interactive setup via network
- POS Interface (Text Inserter)
| Video | Camera input | 12 BNC / Loop out |
| Output | 1 HDMI / 1 VGA / 1 Spot | |
| Audio | Audio input | 12 |
| Output | 1 RCA | |
| Sensor in | 12 (NC,NO selectable) | |
| Alarm out | 12 (1 relay / 5 TTL) | |
| Operating system | Embedded Linux OS | |
| Display | Speed | Realtime |
| Resolution | upto 1920 × 1080 | |
| Split screen | 1 / 4 / 6 / 9 / 12 | |
| Record | CODEC | Dual H.264 / JPEG for 3G |
| Resolution | D1 / 2CIF / CIF mixed | |
| Picture quality | 4 steps (Super / High / Medium / Low) | |
| Speed | 360 frames based on D1 | |
| Playback | Display | 1 / 6 / 12 |
| Search mode | Calendar / Event | |
| Speed | Normal, REW & FF (recorded speed × 2, × 4, × 8, × 16, × 32, × 64, × 1/2, × 1/4) Frame by Frame, Pause | |
| Network | Interface | Ethernet, PPPoE |
| Protocol | TCP/IP / HTTP / DHCP | |
| Application | Windows 2000 / XP / Vista / 7 (PC Client system & IE) | |
| Web Browser | Internet Explorer | |
| Backup | Interface | USB 2.0 × 2 |
| Device | Ext. DVD/CD-RW/HDD, Network, USB Thumb Drive | |
| HDD | 2 SATA | |
| Power consumption | 60W | |
| Operating Temperature | 5°C ~ 40°C (41 ~ 104°C) | |
| Relative Humidity | Maximum 80% non-condensing | |
| Dimension | 430 (W) × 420 (D) × 88 (H) mm | |
