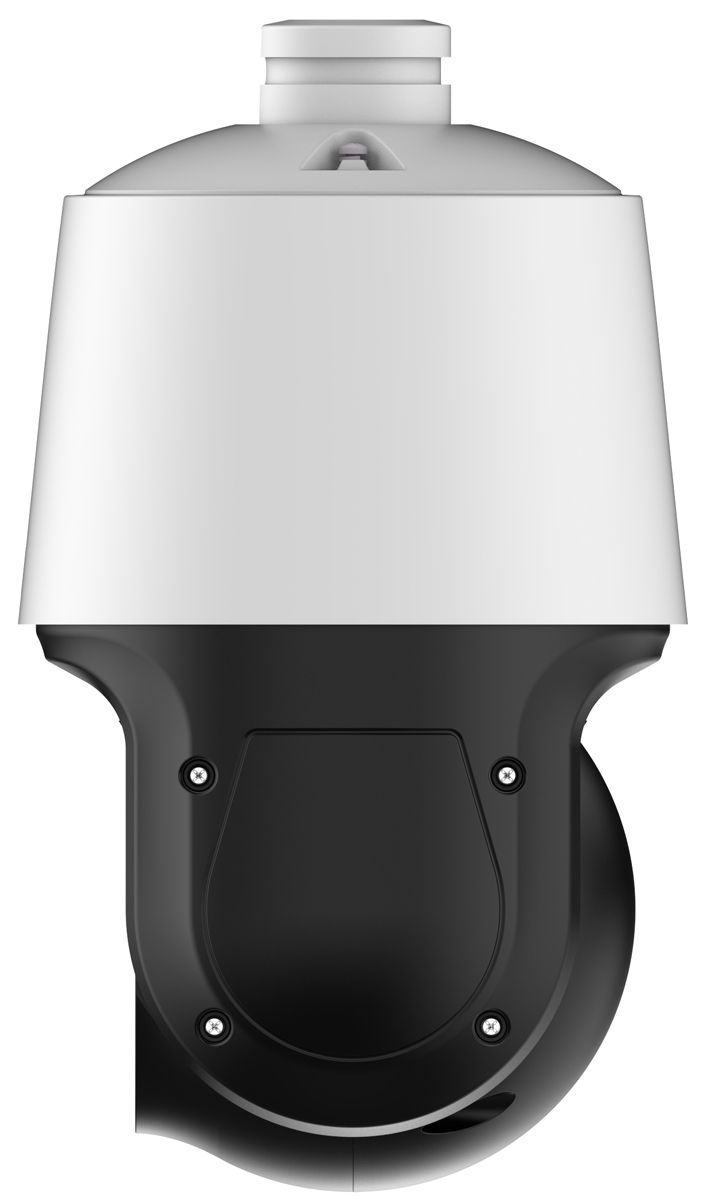

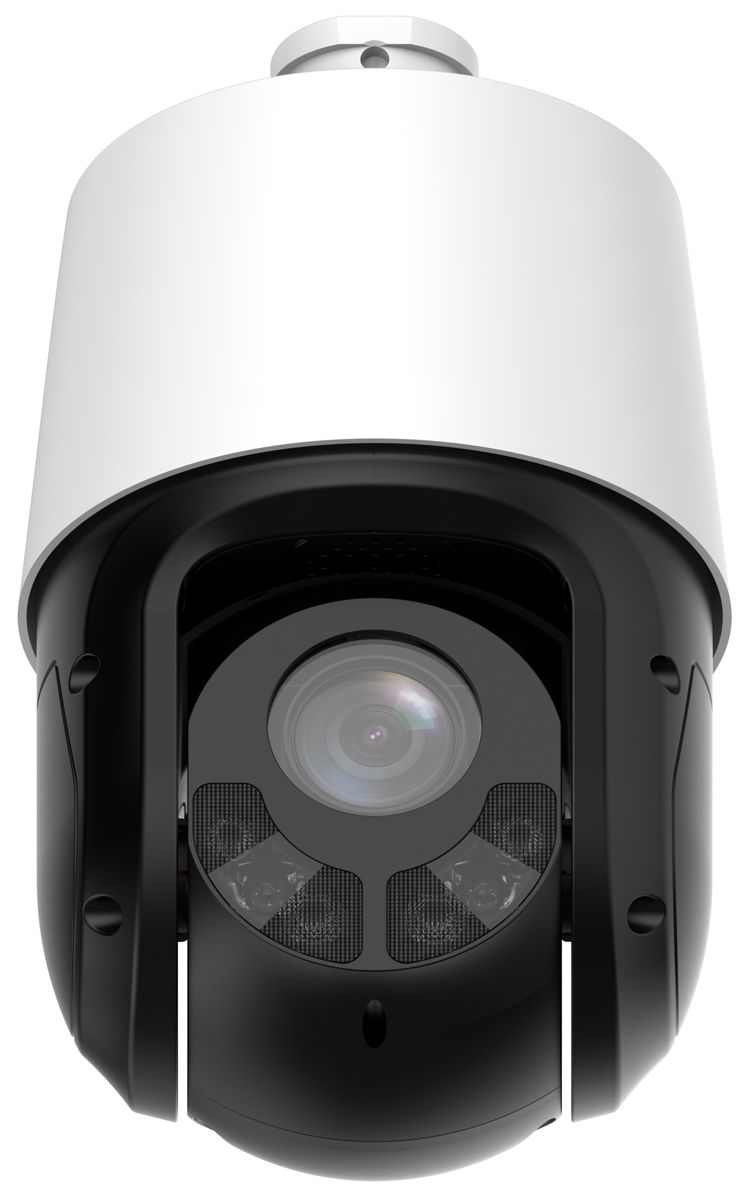

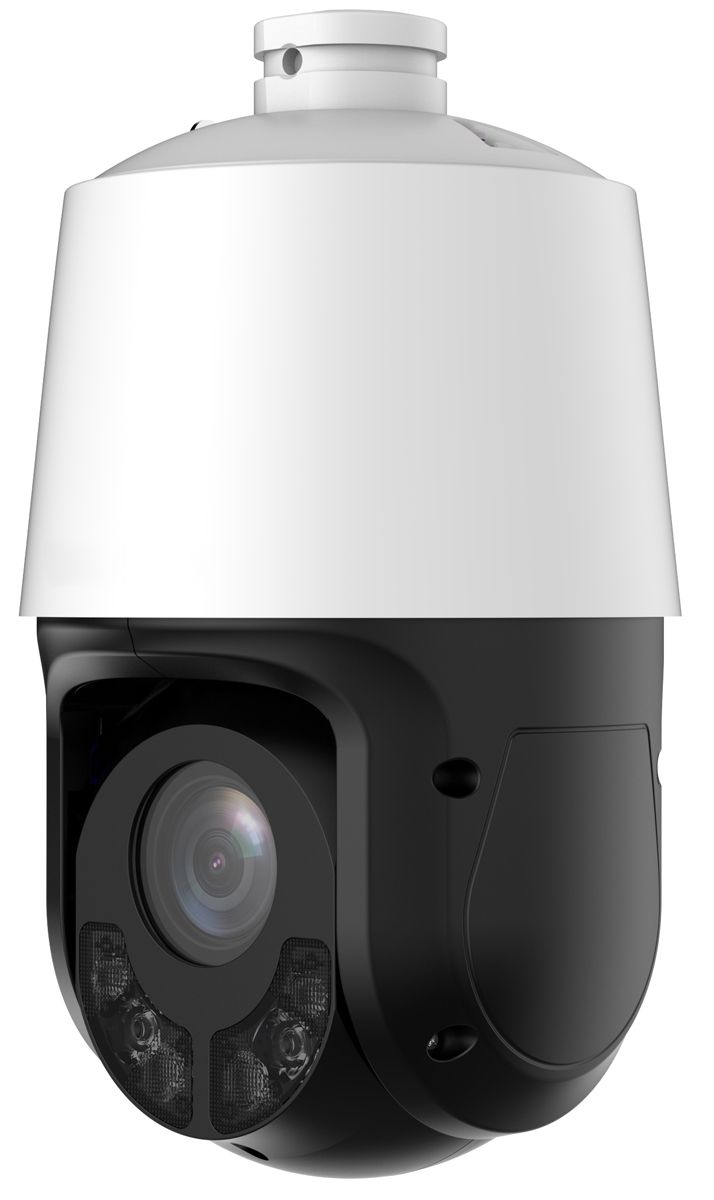

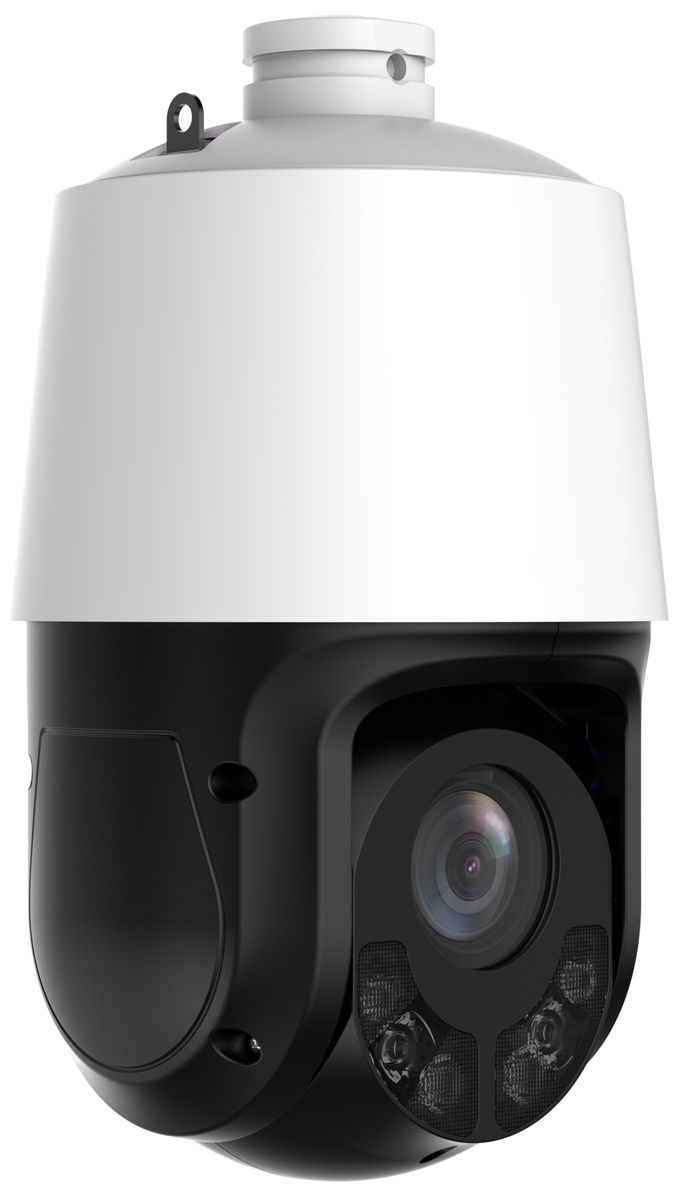

LTS Pro-X 8MP 4" Active Deterrence PTZ IP Camera, 25x Zoom, NDAA (LXPTZIP4C8WI-X25SDL)
Sale price
$922.90
Regular price
$1,200.00
Skip to product information
LTS Pro-X 8MP 4" Active Deterrence PTZ IP Camera, 25x Zoom, NDAA (LXPTZIP4C8WI-X25SDL)
Sale price
$922.90
Regular price
$1,200.00
The LTS 8 MP 4K IP Camera delivers crisp ultra-high-definition video with strong night vision and True WDR for clear detail in any light. Built-in smart motion detection and microphone help you catch and review events easily, while PoE power and rugged IP67 weatherproof design make setup simple and reliable for outdoor home or business surveillance.
Features
- Maximum 8MP/30fps
- 1/2.8" CMOS and F1.6 aperture
- 25x optical zoom
- Built-in warm white lights and IR lights, the max. IR illumination distance is up to 330ft
- VCA with Line Crossing and Intrusion by AI algorithm
- MD2.0 focus on Human and Vehicle
- Face Detection
- Auto Tracking
- Active Deterrence with built-in Red & Blue Lights
- Built-in Micro SD card slot, up to 512 GB
- Built-in Speaker
- Built-in heater used to defog for the lens.
- 12V DC and PoE +
- IP66
Specifications
| Model | LXPTZIP4C8WI-X25SDL |
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Min. Illumination | 0.006 Lux @ F1.6 (Color), 0.0006 Lux @ F1.6(B/W), 0Lux (IR light on) |
| E-shutter Speed | Auto/Manual 1/1s~1/30000s |
| S/N Ratio | > 56 dB |
| Noise Reduction | 3D NR |
| Wide Dynamic Range | 120 dB |
| Day & Night | Auto (ICR)/Color/B/W |
| Angle Adjustment | Pan: 0° to 360° endless Tilt: "15° to +90°, auto flip 180° |
| Zoom | 25x optical(5-125mm) |
| Lens Type | Motorized Vari-Focal, 5mm at F1.6 to 13.5mm at F3.6 |
| Iris Type | Auto/Manual |
| Field of View | Horizontal: 53.1°-3.4° Vertical: 30.4°-1.9° Diagonal: 59.3°-3.9° |
| Close Focus Range | 0.33 ft"4.92 ft (0.1m-1.5 m) |
| DORI | Detect: 452.52 ft "11313.10 ft (137.9 m " 3448.3 m) Observe: 181.01 ft "4525.24 ft (55.2 m " 1379.3 m) Recognize: 90.50 ft "2262.62 ft (27.6 m " 689.7 m) Identify: 45.25 ft "1131.31 ft (13.8 m " 344.8 m) |
| Illuminators | 2 x IR lights, 2 x Warm white lights |
| Illumination Range | Up to 330ft (100m) with IR lights on; Up to 165ft (50m) with Warm white lights on |
| Illuminator Control | Zoom Prio, Manual, Auto, Off |
| Video | |
| Video Compression | H.265, H.264, MJPEG (Sub Stream1 Only) |
| Resolution | 8MP (3840 * 2160), 4MP (2560 * 1440), 3MP (2304 * 1296), 3MP (2548 * 1036), 1080p (1920 * 1080), 1.3MP (1280 * 960), 720p (1280 * 720), D1 (704 * 480), VGA (640 * 480), CIF (352 * 240) |
| Maximum Frame Rate | Main stream: 8MP (3840 * 2160) at 30 fps Sub stream1: D1(704*480) at 30 fps, 720P (1280*720) at 30 fps Sub stream2: Sub steam2: 1080p (1920 * 1080) at 30fps |
| Video Stream | 3 Streams: Main Stream, Sub Stream1, Sub Stream2 |
| Bit Rate Control | CBR, VBR |
| ROI | Supported (8 areas) |
| Image Rotation | 0°and 180° |
| Mirror | Unsupported |
| Privacy Mask | Supported (8 areas) |
| Audio | |
| Built-in MIC | Unsupported |
| Audio Compression | PCM, G.711a, G.711Mu, AAC |
| PTZ | |
| Range | Pan: 0°-360° endless, Tilt: -15° to 90°, auto flip 180° |
| Pan Speed | Manual Control: 0.1°/s-120°/s Preset: 0.1°/s-240°/s |
| Tilt Speed | Manual Control: 0.1°/s-120°/s Preset: 0.1°/s-240°/s |
| Preset | 300 |
| Patrol | 8 (up to 32 presets per patrol) |
| Pattern | 5 |
| Scan | 5 |
| Scheduled Task | Preset, Pattern, Tour, Scan |
| Preset Freezing | Supported |
| 3D Positioning | Supported |
| Intelligent Analysis | |
| VCA (Video Content Analytics) | Intrusion, Line Crossing, Crossing Virtual Fence, Abandoned Object, Parking Detection, Missing Object Aggregate Detection, Loitering Detection |
| MD2.0 | Supported |
| Face Detection | Supported |
| Deep Learning Function | Not Supported |
| Auto Tracking | Supported |
| Event | |
| Alarm Event | Motion Detection, Audio Detection, Video Tampering, Scene Changing, Disk Full, Disk Error, Security Warning, External Alarm, AI Event |
| Network | |
| Protocol | IPv4, IPv6, DNS, DHCP, TCP, HTTP, HTTPS, 802.1x, RTSP, DDNS, P2P, SMTP, RTMP, PPPoE, UPnP, SNMP, Bonjour, QoS, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, NFS |
| Interoperability | ONVIF (Profile S & Profile G & Profile T), CGI |
| Storage | FTP, SFTP, Micro SD card (support max. 512 GB), NAS |
| Web Browser | Chrome, Firefox |
| PC Client | X-Station |
| Maobile APP | Pro-x Next |
| Interface | |
| Network port | RJ-45 (10/100 Base-T) |
| Micro SD card Slot | Yes |
| Reset Button | Supported |
| Auido in/out | 1/1 |
| Alarm in/out | 1/1 |
| Built in Spekaer | Yes |
| General | |
| Power Supply | 12 VDC / PoE+ (802.3at) |
| Power Consumption | 12 VDC: Max 12W, Typical 8W |
| Housing | Cover: Metal, Dome: Plastic |
| Dimensions | Φ160.0mm*280.5mm (Φ6.3in*11.04in) |
| Dimensions with Box | 10.51" * 10.51" * 9.33" (267.0mm * 267.0mm * 437.0mm) (L "W "H) |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% RH |
| Storage Conditions | -40°C to +60°C (-40°F to +140°F) |
| Protection Grade | IP66 |
| Net Weight | 6.02lb (2.72 kg) |
| Gross Weight | 9.90lb (4.49 kg) |
| Certification | FCC |
