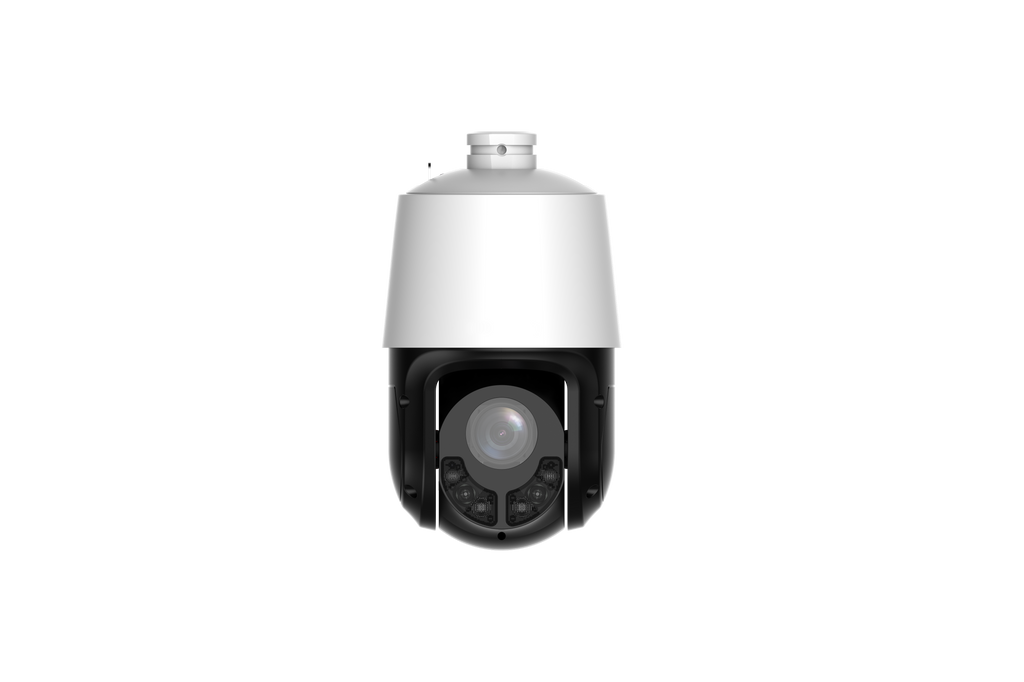

LTS LXPTZIP4C4WI-X25SDL 4MP 4-inch Active Deterrence PTZ Camera, 25x Optical Zoom
Sale price
$834.90
Regular price
$1,085.00
Skip to product information
LTS LXPTZIP4C4WI-X25SDL 4MP 4-inch Active Deterrence PTZ Camera, 25x Optical Zoom
Sale price
$834.90
Regular price
$1,085.00
The LTS 4 MP Active Deterrence PTZ Camera delivers sharp 4 MP live video with powerful 25" optical zoom and smart AI detection to track people and vehicles. Built-in red/blue deterrence lights, warm white/IR illumination, and auto-tracking boost security, while mic, speaker, and MicroSD support make reviewing footage simple. PoE+/12 V and rugged weather-resistant design ensure reliable outdoor surveillance.
Features
- Maximum 4MP/30FPS
- 1/2.8" CMOS and F1.6 aperture
- 25x optical zoom
- Built-in warm white lights and IR lights, the max. IR illumination distance is up to 330 ft
- VCA with Line Crossing and Intrusion by AI algorithm
- MD2.0 focus on Human and Vehicle
- X search technology
- Face Detection
- Auto Tracking
- Active Deterrence with built-in Red & Blue Lights
- Built-in Micro SD card slot, up to 512 GB
- Built-in Speaker
- Built-in heater used to defog for the lens.
- 12V DC and PoE+
- IP66
Specifications
| Model | LXPTZIP4C4WI-X25SDL |
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Min. Illumination | 0.006 Lux @ F1.6 (Color), 0.0006 Lux @ F1.6(B/W), 0 Lux (warm white lights on) |
| E-shutter Speed | Auto/Manual 1/1s~1/30000s |
| S/N Ratio | > 56 dB |
| Noise Reduction | 3D NR |
| Wide Dynamic Range | 120 dB |
| Day & Night | Auto (ICR)/Color/B/W |
| Angle Adjustment | Pan: 0° to 360° endless Tilt: "15° to +90°, auto flip 180° |
| Zoom | 25x optical(5-125mm) |
| Lens Type | Motorized Vari-Focal, 5mm at F1.6 to 13.5mm at F3.6 |
| Iris Type | Auto/Manual |
| Field of View | Horizontal: 51.9°"3.0° Vertical: 39.7°"2.2° Diagonal: 63.1°"3.7° |
| Close Focus Range | 0.33 ft"4.92 ft (0.1m-1.5 m) |
| DORI | Detect: 378.75 ft "8202.75 ft (100.2 m " 2500.2 m) Observe: 131.90 ft " 3281.50 ft (40.2 m " 1000.2 m) Recognize: 66.27 ft "1641.08 ft (20.2 m " 500.2 m) Identify: 33.46 ft " 820.86 ft (10.2 m " 250.2 m) |
| Illuminators | 2 x IR lights, 2 x Warm white lights |
| Illumination Range | Up to 330ft (100m) with IR lights on; Up to 165ft (50m) with Warm white lights on |
| Illuminator Control | Zoom Prio, Manual, Auto, Off |
| Video | |
| Video Compression | H.265, H.264, MJPEG (Sub Stream1 Only) |
| Resolution | 4MP (2560 * 1440), 3MP (2048 * 1536), 3MP (2304 * 1296), 1080p (1920 * 1080), 1.3MP (1280 * 960), 720P (1280 * 720), D1 (704*480), VGA (640*480), CIF (352 * 288), CIF (352 * 240) |
| Maximum Frame Rate | Main stream: 4MP (2560*1440) at 30 fps Sub stream1: D1 (704*480) at 30 fps, 720P (1280*720) at 30 fps Sub steam2: 1080p (1920 * 1080) at 30fps |
| Video Stream | 3 Streams: Main Stream, Sub Stream1, Sub Stream2 |
| Bit Rate Control | CBR, VBR |
| ROI | Supported (8 areas) |
| Image Rotation | 0°and 180° |
| Mirror | Unsupported |
| Privacy Mask | Supported (8 areas) |
| Audio | |
| Built-in MIC | Unsupported |
| Audio Compression | PCM, G.711a, G.711Mu, AAC |
| PTZ | |
| Range | Pan: 0°-360° endless, Tilt: -15° to 90°, auto flip 180° |
| Pan Speed | Manual Control: 0.1°/s-120°/s Preset: 0.1°/s-240°/s |
| Tilt Speed | Manual Control: 0.1°/s-120°/s Preset: 0.1°/s-240°/s |
| Preset | 300 |
| Patrol | 8 (up to 32 presets per patrol) |
| Pattern | 5 |
| Scan | 5 |
| Scheduled Task | Preset, Pattern, Tour, Scan |
| Preset Freezing | Supported |
| 3D Positioning | Supported |
| Intelligent Analysis | |
| VCA (Video Content Analytics) | Intrusion, Line Crossing, Crossing Virtual Fence, Abandoned Object, Parking Detection, Missing Object Aggregate Detection, Loitering Detection |
| MD2.0 | Supported |
| Face Detection | Supported |
| X search | Supported |
| Deep Learning Function | Not Supported |
| Auto Tracking | Supported |
| Event | |
| Alarm Event | Motion Detection, Audio Detection, Video Tampering, Scene Changing, Disk Full, Disk Error, Security Warning, External Alarm, AI Event |
| Network | |
| Protocol | IPv4, IPv6, DNS, DHCP, TCP, HTTP, HTTPS, 802.1x, RTSP, DDNS, P2P, SMTP, RTMP, PPPoE, UPnP, SNMP, Bonjour, QoS, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, NFS |
| Interoperability | ONVIF (Profile S & Profile G & Profile T), CGI |
| Storage | FTP, SFTP, Micro SD card (support max. 512 GB), NAS |
| Web Browser | Chrome, Firefox |
| PC Client | X-Station |
| Maobile APP | Pro-x Next |
| Interface | |
| Network port | RJ-45 (10/100 Base-T) |
| Micro SD card Slot | Yes |
| Reset Button | Supported |
| Auido in/out | 1/1 |
| Alarm in/out | 1/1 |
| Built in Spekaer | Yes |
| General | |
| Power Supply | 12 VDC / PoE+ (802.3at) |
| Power Consumption | 12 VDC: Max 13W, Typical 8W |
| Housing | Cover: Metal, Dome: Plastic |
| Dimensions | Φ160.0mm*280.5mm (Φ6.3in * 11.04in) |
| Dimensions with Box | 10.51" * 10.51" * 9.33" (267.0mm * 267.0mm * 437.0mm) (L "W "H) |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% RH |
| Storage Conditions | -40°C to +60°C (-40°F to +140°F) |
| Protection Grade | IP66 |
| Net Weight | 6.02lb (2.72 kg) |
| Gross Weight | 9.90lb (4.49 kg) |
| Certification | FCC |
