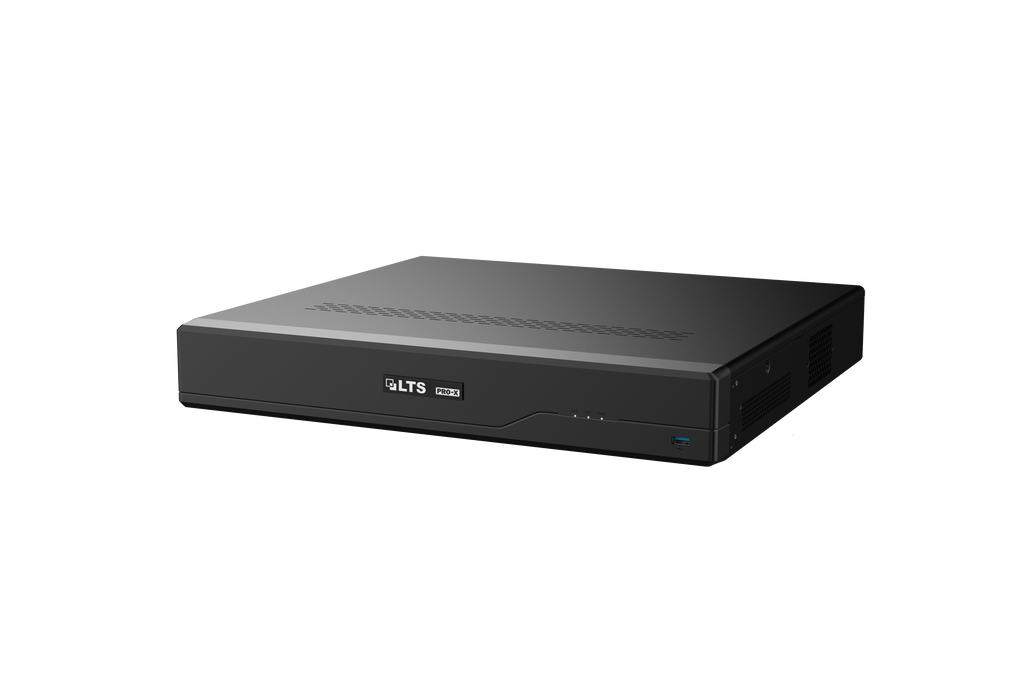

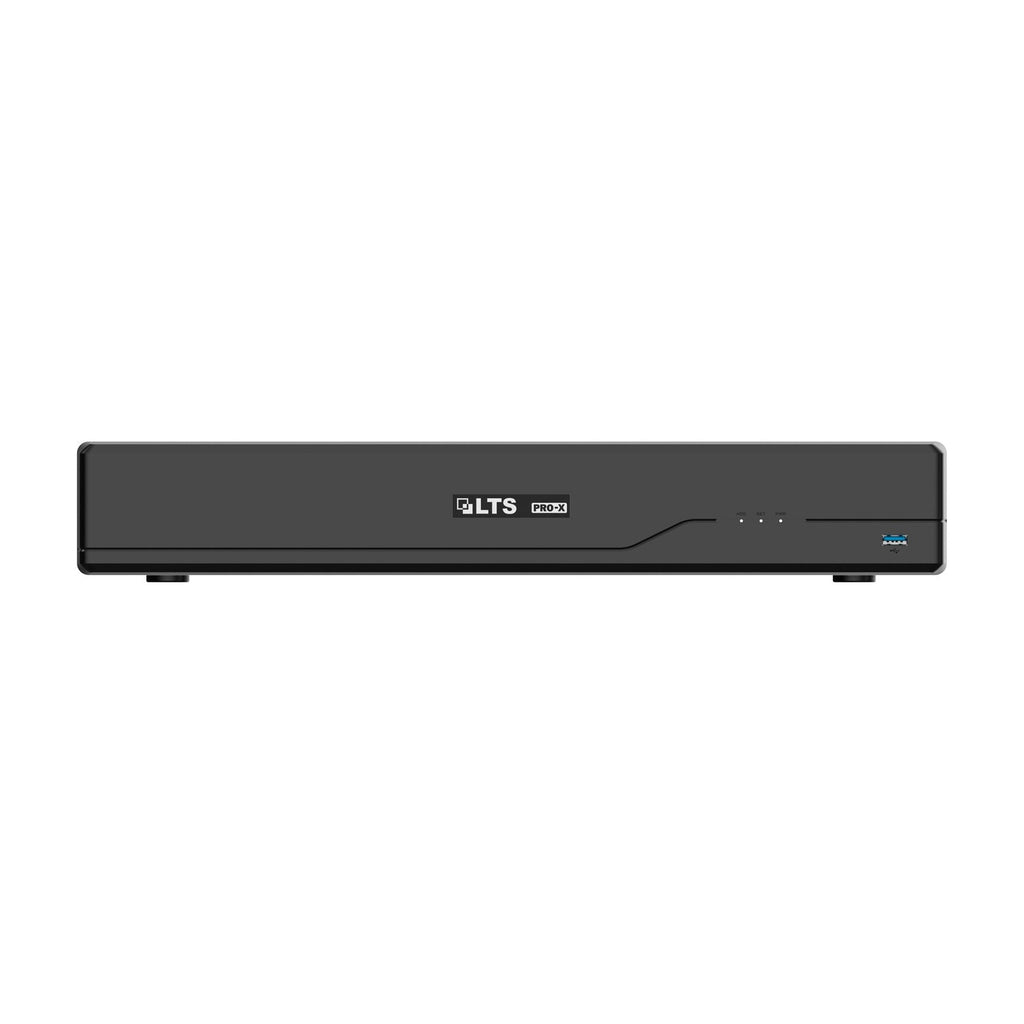

LTS LXN9432D 32CH 4 HDD Dual-NIC Pro AI NVR
Sale price
$889.90
Regular price
$1,155.00
The LXN9432D 32-Channel Pro-X NVR is a professional network recorder supporting up to 32 IP channels and 32 MP resolution recording, smart H.265/H.264 compression for efficient storage, dual 4K HDMI and VGA outputs, advanced AI analytics including face detection, VCA and MD 2.0, remote configuration and management, dual NIC network, and reliable multi-camera recording for enterprise surveillance deployments.
Features
- Smart Encoding/H.265/H.264 video Compression
- Up to 32 MP Resolution Recording
- 2x Independent HDMI Ports (4K, 3840×2160) and VGA Ports
- Camera AI Compatibility: Face Detection, VCA, MD2.0, License Plate Recognition, People Counting, Heat Map, Object Monitoring
- Recorder AI Feature: Face Recognition, VCA, MD2.0, X Search Technology
- Supports remote configuration and management of IPC, such as setting parameters, getting information, batch upgrading
- Support X Search Technology
Specifications
| Model | LXN9432D |
| Video/Audio | |
| IP Video Input | 32-ch |
| Recording Resolution | 32MP, 16MP; 12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1; VGA; CIF |
| HDMI Output Resolution | 2-ch, 4K (3840 x 2160), 1920 x 1080, 1280 x 1024 |
| VGA Output Resolution | 2-ch, 1920 x 1080, 1280 x 1024 |
| Video Output Mode | HDMI1/HDMI2 independent output, HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output |
| Two-way Audio Input | 1-ch, RCA |
| Audio Output | 2-ch, RCA |
| Third-party Camera Access | ONVIF; RTSP |
| Decoding | |
| Decoding Format | Smart Encoding; H.265; H.264; H.264H; H.264B; MJPEG |
| Live View/Playback Resolution | 32MP, 16MP; 12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1; VGA; CIF |
| Decoding Capability | AI ON: 1-ch@32MP(30fps)/2-ch@16 MP (30 fps)/4-ch@8 MP (30 fps)/12-ch@4 MP (30 fps)/24-ch@1080p (30 fps) AI OFF: 2-ch@32MP(30fps)/4-ch@16 MP (30 fps)/8-ch@8 MP (30 fps)/16-ch@4 MP (30 fps)/32-ch@1080p (30 fps) |
| Live View Window Division | 1, 4, 8, 9, 16, 25, 36 views |
| Aux Port Window Division | 1, 4, 8, 9, 16 views |
| Synchronous Playback | 16-ch |
| Intelligent | |
| Intelligent Motion Detection | 16-ch, MD2.0 by Camera 8-ch, MD2.0 by NVR |
| VCA | 16-ch, Line Crossing by Camera 4-ch, Line Crossing by NVR 10 rules for each Channel |
| Face Recognition | 2-ch, human face capture and recognition 16-ch, face picture comparison alarm, (Face picture captured From Camera) |
| Face Picture Database | Up to 20 face picture libraries, with up to 20,000 face pictures in total |
| X Search | 16-ch, Specific AI Camera Required |
| Video Metadata | 8-ch, Specific AI Camera Required |
| License Plate Recognition | 8-ch, LPR Camera Required |
| LPR Database | 2 Blocklist and Allowlist, up to 20,000 plate numbers |
| Network | |
| Incoming Bandwidth | 384 Mbps (200 Mbps with AI enabled) |
| Outgoing Bandwidth | 384 Mbps (200 Mbps with AI enabled) |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS |
| Network Interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet Interface |
| PoE Interface | N/A |
| PoE Standard | N/A |
| Mobile Phone Access | PRO-X |
| Auxiliary Interface | |
| SATA | 4 SATA interface |
| Capability | Up to 16 TB for each hard disk |
| eSATA | 1 eSATA interface |
| Alarm In/Out | 16/6 |
| USB Interface | Front panel: 1 x USB 2.0; Rear panel: 2 x USB 3.0 |
| Serial Port | RS232 |
| General | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Power Consumption | < 13 W (HDD not included) |
| Working Temperature | "10 °C to +55 °C (+14 °F to +131 °F) |
| Working Humidity | 10% to 93% |
| Product Dimensions | 442.0 mm x 414.1 mm x 68.0 mm (17.4" x 16.3" x 2.68") (W x D x H) |
| Weight | 4.7kg(10.45 lb), without HDD |
| Installation | Rack or desktop |
| Certifications | FCC: Part 15 Subpart B |
