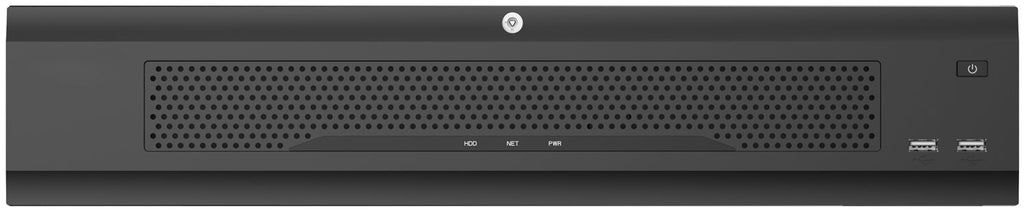

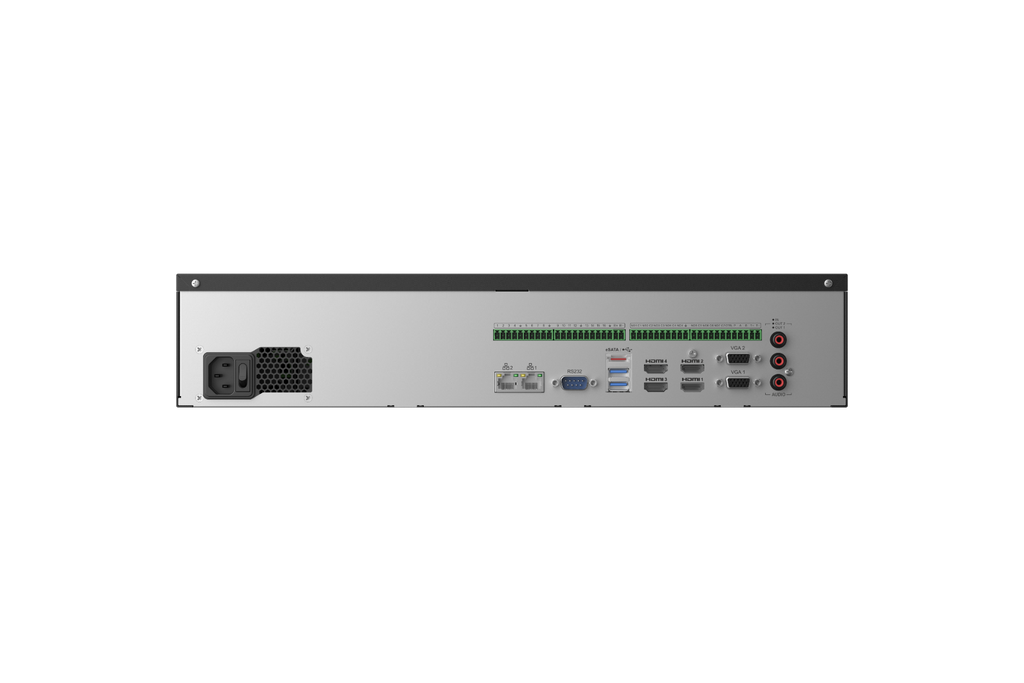

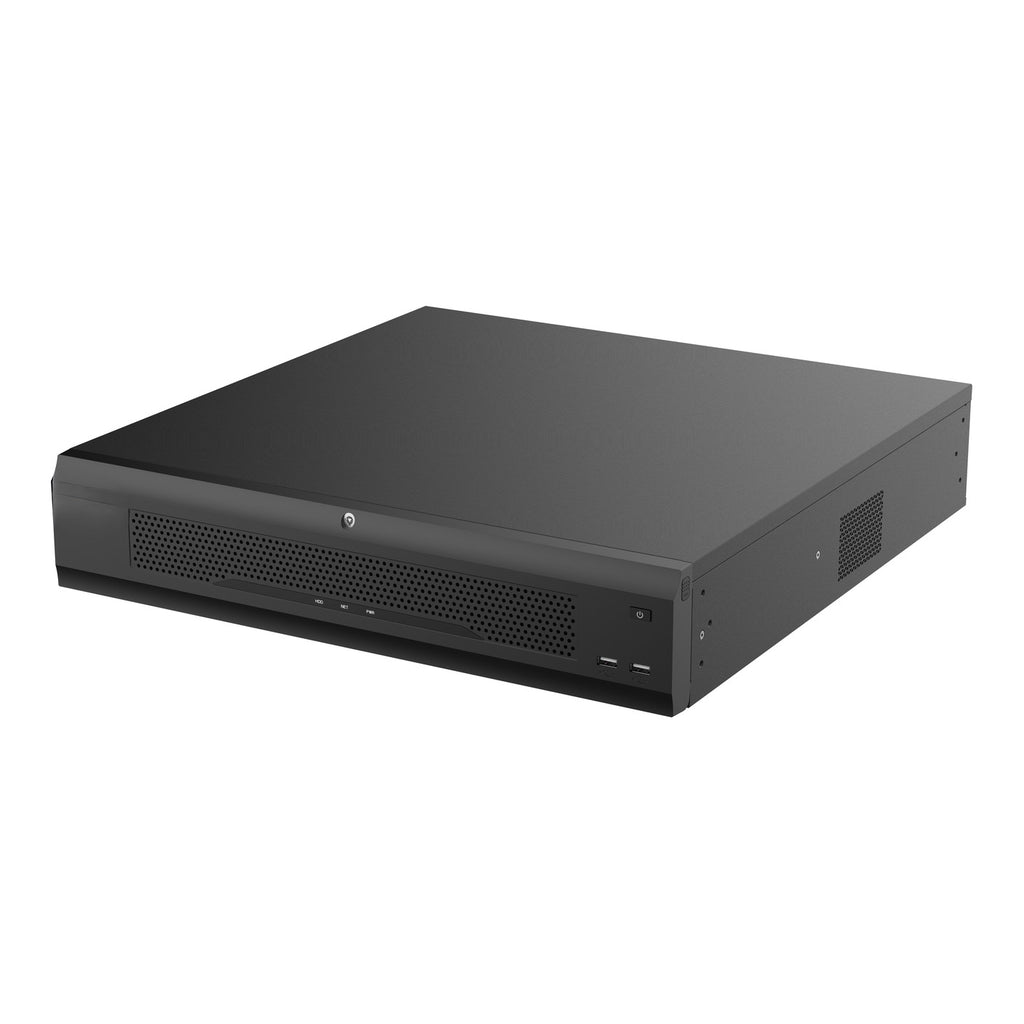

LTS LXN10864D 64CH 8 HDD Dual-NIC Ultra AI NVR
Sale price
$2,638.90
Regular price
$3,430.00
The LXN9332D-P32 64-Channel PoE NVR is a high-performance network recorder supporting up to 320 Mbps recording throughput with 32 built-in PoE ports for easy camera connections, smart H.265+/H.265/H.264 compression for efficient storage use, dual 4K HDMI outputs, multiple SATA bays with large capacity support, USB backup, and advanced MD 2.0 analytics including human and vehicle detection for reliable large-scale surveillance performance.
Features
- Up to 8K (32MP) Resolution Recording
- 4 HDMI Ports and 2 VGA Ports
- Camera AI Compatibility: Face Detection, Face Recognition, VCA, MD2.0, License Plate Recognition, People Counting, Heat Map, Object Monitoring, Metadata
- Recorder AI Feature: Face Recognition, VCA, MD2.0, Metadata
- Supports remote configuration and management of IPC, such as setting parameters, getting information, batch upgrading
- X-Search 2.0
- Supports N+M hot-spare
- Raid 0/1/5/6/10
Specifications
| Model | LXN10864D |
| Video/Audio | |
| IP Video Input | 64-ch |
| Recording Resolution | 32MP, 24MP;16MP; 12MP; 8MP; 4MP; 1080p; 720p; D1; VGA; CIF |
| HDMI Output Resolution | 4-ports HDMI1&2: 3840 x 2160, 1920 x 1080, 1280 x 1024; HDMI3: 7680 x 4320, 3840 x 2160, 1920 x 1080, 1280 x 1024; HDMI4: 1920 x 1080, 1280 x 1024 |
| VGA Output Resolution | 2-ports 1920 x 1080, 1280 x 1024 |
| Video Output Mode | Simultaneous mode: HDMI 1, HDMI 2, HDMI 3, HDMI 4 and VGA1, VGA 2 provide simultaneous output The maximum resolution for HDMI 3 is 8K, the maximum resolution for HDMI 1 and HDMI 2 is 4K, the maximum resolution for HDMI 4, VGA 1 and VGA 2 is 1080p Independent mode: simultaneous outputs video sources for the VGA1 and HDMI1, or VGA2 and HDMI2. It also outputs independent video sources for HDMI1×4. The maximum resolution for HDMI 1-3 is 4K, the maximum resolution for HDMI 4, VGA 1 and VGA 2 is 1080p |
| Two-way Audio Input | 1-ch, RCA |
| Audio Output | 2-ch, RCA |
| Third-party Camera Access | ONVIF; RTSP |
| Decoding | |
| Decoding Format | H.265; H.264; MJPEG |
| Live View/Playback Resolution | 32MP, 24MP;16MP; 12MP; 8MP; 4MP; 1080p; 720p; D1; VGA; CIF |
| Decoding Capability | AI OFF: 2-ch@32MP(30fps)/2-ch@24MP(30fps)/4-ch@16MP(30fps)/5-ch@12MP(30fps)/8-ch@8MP(30fps)/16-ch@4MP(30fps)/32-ch@1080p(30fps)/128-ch@D1(30fps) AI ON: 1-ch@32MP(30fps)/1-ch@24MP(30fps)/2-ch@16MP(30fps)/2-ch@12MP(30fps)/4-ch@8MP(30fps)/8-ch@4MP(30fps)/16-ch@1080p(30fps)/80-ch@D1(30fps) |
| Live View Window Division | 1, 4, 8, 9, 16, 25, 36, 64 views |
| Aux Port Window Division | 1, 4, 8, 9, 16,32 views |
| Synchronous Playback | 16-ch |
| Intelligent | |
| MD2.0 | 64-ch, MD2.0 by Camera, 128 targets/s in total 32-ch, MD2.0 by NVR |
| VCA | 64-ch, Line Crossing and Intrusion by Camera, 64 targets/s in total 32-ch, Line Crossing and Intrusion by NVR in simultaneous video output mode 24-ch, Line Crossing and Intrusion by NVR in Independent video output mode |
| Face Detection | 64-ch, Face Detection by Camera 8-ch, Face Detection by NVR in simultaneous video output mode 5-ch, Face Detection by NVR in Independent video output mode |
| Face Recognition | Simultaneous video output mode: 64-ch, face picture comparison alarm, (Face picture captured from Camera) 8-ch, face picture comparison alarm, (Face picture captured from NVR) Independent video output mode: 64-ch, face picture comparison alarm, (Face picture captured from Camera) 8-ch, face picture comparison alarm, (Face picture captured from NVR) |
| Face Picture Database | Up to 40 face picture libraries, with up to 300,000 face pictures in total |
| X Search | 64-ch, Specific AI Camera Required |
| Video Metadata | 64-ch, Metadata by Camera 8-ch, Metadata by NVR |
| License Plate Recognition | 64-ch, License Plate Recognition Camera Required, 64 targets/s in total |
| LPR Database | Blocklist and Allowlist, up to 20,000 plate numbers |
| Network | |
| Incoming Bandwidth | 1408Mbps (704 Mbps with AI enabled) |
| Outgoing Bandwidth | 1024 Mbps (512 Mbps with AI enabled) |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS |
| Network Interface | 2 (10/100/1000/2500 Mbps Ethernet port, RJ-45) |
| PoE Interface | N/A |
| PoE Standard | N/A |
| APP | Pro-X Next |
| Auxiliary Interface | |
| SATA | 8 SATA interface |
| Capability | Up to 20 TB for each hard disk |
| eSATA | 1 eSATA interface |
| Alarm In/Out | 16/8 |
| USB Interface | Front panel: 2 x USB 2.0; Rear panel: 2 x USB 3.0 |
| Serial Port | RS232/RS485 |
| General | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Power Consumption | < 18 W (HDD not included) |
| Working Temperature | "10 °C to +55 °C (+14 °F to +131 °F) |
| Working Humidity | 10% to 93% |
| Product Dimensions | 442.0 mm x 457.3 mm x 88.0 mm (17.4" x 18.0" x 3.5") (W x D x H) |
| Weight | 7.16kg(15.79 lb), without HDD |
| Installation | Rack or desktop |
| Certifications | FCC |
