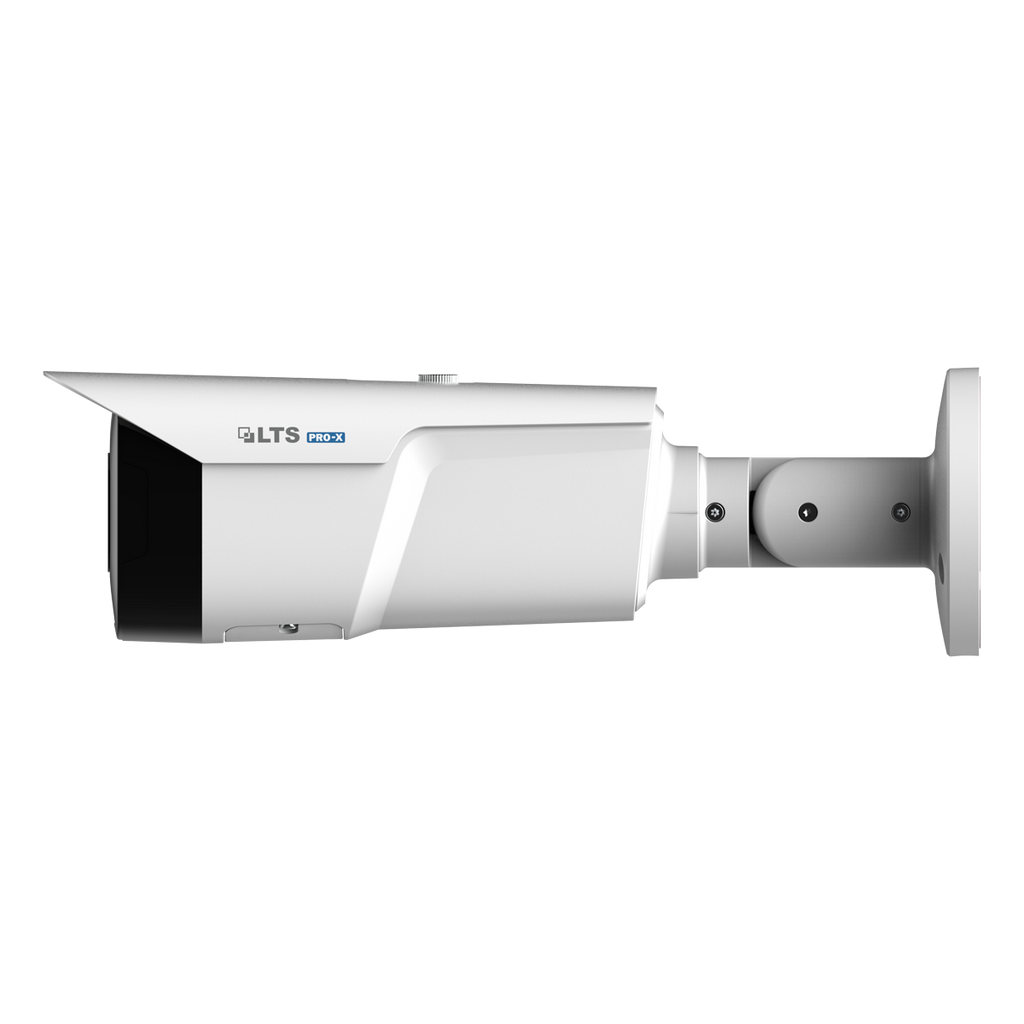

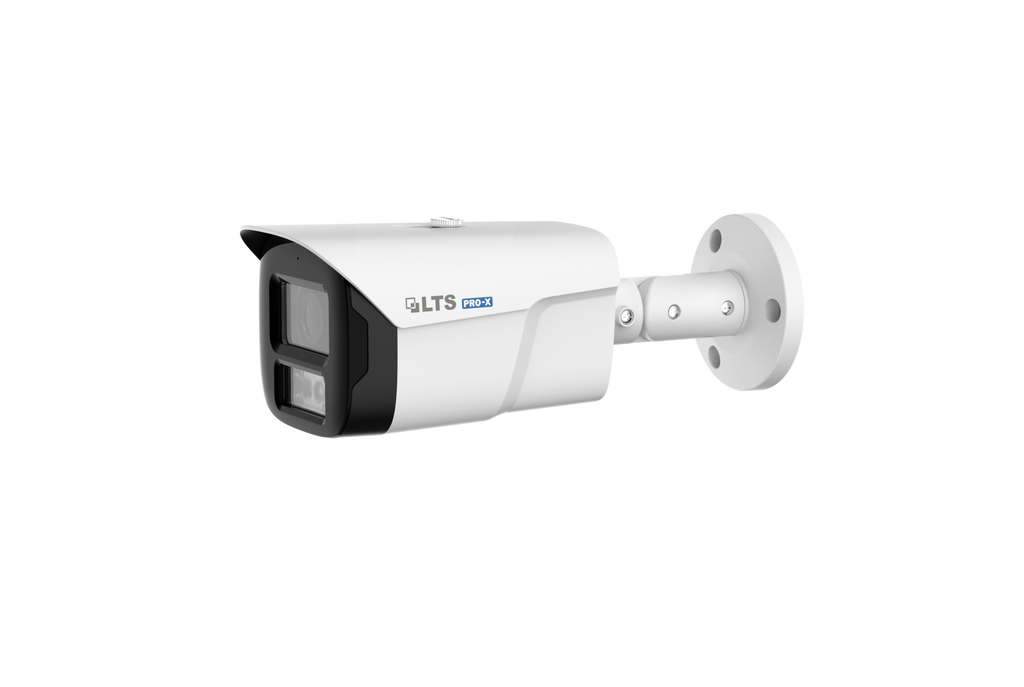

LTS LXIP9C42W-28AISP 4MP AI ISP Fixed Bullet Network Camera
Sale price
$240.90
Regular price
$315.00
Skip to product information
LTS LXIP9C42W-28AISP 4MP AI ISP Fixed Bullet Network Camera
Sale price
$240.90
Regular price
$315.00
The LTS 4 MP AI ISP Fixed Bullet IP Camera delivers crisp 4 MP video with AI-ISP color processing and powerful warm white lights for clear day-night surveillance up to ~150 ft. Built-in AI motion analytics, human/vehicle detection, mic, and MicroSD support make reviewing clips easy. PoE/12 V DC power and IP67 weather resistance ensure reliable outdoor performance.
Features
- Max.4MP Resolution
- Maximum 20fps at 4MP (2688×1520)
- 1/1.8" CMOS and F1.0 aperture
- With AI-ISP technology to effectively handle image color inconsistencies
- Built-in 4x warm white lights, and the max. illumination distance is 150ft
- VCA with Line Crossing and Intrusion by AI algorithm
- MD2.0 focus on Human and Vehicle
- Built in MIC
- Built-in Micro SD card slot, up to 256 GB
- 12V DC and PoE
- IP67
Specifications
| Model | LXIP9C42W-28AISP |
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Min. Illumination | 0.0001 lux at F1.0 |
| E-shutter Speed | Auto/Manual 1/3 s"1/100,000 s |
| S/N Ratio | > 50 dB |
| Noise Reduction | 3D NR |
| Wide Dynamic Range | 120 dB |
| Day & Night | Color/B/W |
| Angle Adjustment | Pan and Rotation: 0°-360° Tilt: 0°-90° |
| Lens Type | Fixed-focal 2.8mm@F1.0 |
| Iris Type | Fixed |
| Field of View | Horizontal: 112°, Vertical: 60°, Diagonal: 134° |
| Close Focus Range | 2 m (6.56 ft) |
| DORI | Detect: 189.30 ft (57.7 m) Observe: 75.46 ft (23.0 m) Recognize: 37.40 ft (11. 4m) Identify: 18.37 ft (5.6 m) |
| Illuminators | 4x Warm White Lights |
| Illumination Range | Up to 150ft |
| Illuminator Control | Auto, Manual, Off |
| Video | |
| Video Compression | H.265; H.264; MJPEG (Sub Stream Only) |
| Smart Codec | Supported |
| Resolution | 4MP (2688*1520), 4MP (2560*1440), 1080p (1920*1080), 720P (1280*720), D1 (704*480), VGA (640*480), CIF (352*240) |
| Maximum Frame Rate | Main stream: 4MP (2688*1520) / 20fps, 4MP (2560*1440) / 30 fps Sub stream: D1 (704*480) / 30 fps |
| Video Stream | 2 streams |
| Bit Rate Control | CBR, VBR |
| ROI | Supported (4 areas) |
| Image Rotation | 0°, 90°, 180° and 270° (90° and 270° only for 2688×1520 resolution and lower) |
| Mirror | Supported |
| Privacy Mask | Supported (4 areas) |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | PCM, G.711a, G.711Mu, ACC |
| Intelligent Analysis | |
| VCA (Video Content Analytics) | Intrusion, Line Crossing |
| MD2.0 | Supported |
| Event | |
| Alarm Event | Line Crossing, Intrusion, Motion Detection, MD2.0, Audio Detection, Video Tampering, Disk Full, Disk Error, Offline, IP conflict, Voltage Detection, Security Warning |
| Network | |
| Protocol | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1x, RTSP, DDNS, P2P, SMTP, RTMP, PPPoE, UPnP, SNMP, Bonjour, QoS, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| Interoperability | ONVIF (Profile S & Profile G & Profile T), CGI |
| Storage | FTP, SFTP, Micro SD card (support max. 256 GB), NAS |
| Web Browser | Chrome, Firefox |
| PC client | X-Station |
| Mobile APP | Pro-x Next |
| Interface | |
| Network port | RJ-45 (10/100 Base-T) |
| Micro SD Card Slot | Yes |
| Reset Button | Supported |
| General | |
| Power Supply | 12 VDC / PoE (802.3af) |
| Power Consumption | 12 VDC: Max 5.5W, Typical 2.0W / PoE: Max 7.2W, Typical 3.0W |
| Housing | Metal |
| Dimensions | 220.1 mm " 87.4 mm " 78.8 mm (8.67" " 3.44" " 3.1") (L " W " H) |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% RH |
| Storage Conditions | -40°C to +60°C (-40°F to +140°F) |
| Protection Grade | IP67 |
| Net Weight | 1.4lb (0.65Kg) |
| Gross Weight | 1.9lb (0.89Kg) |
| Certification | FCC |
