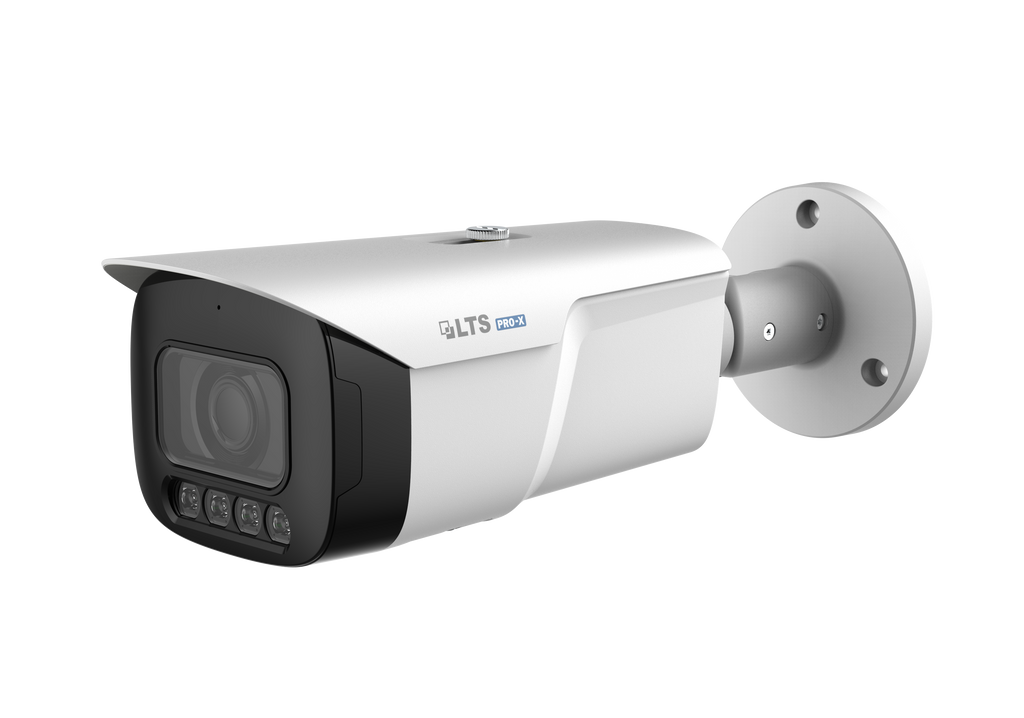

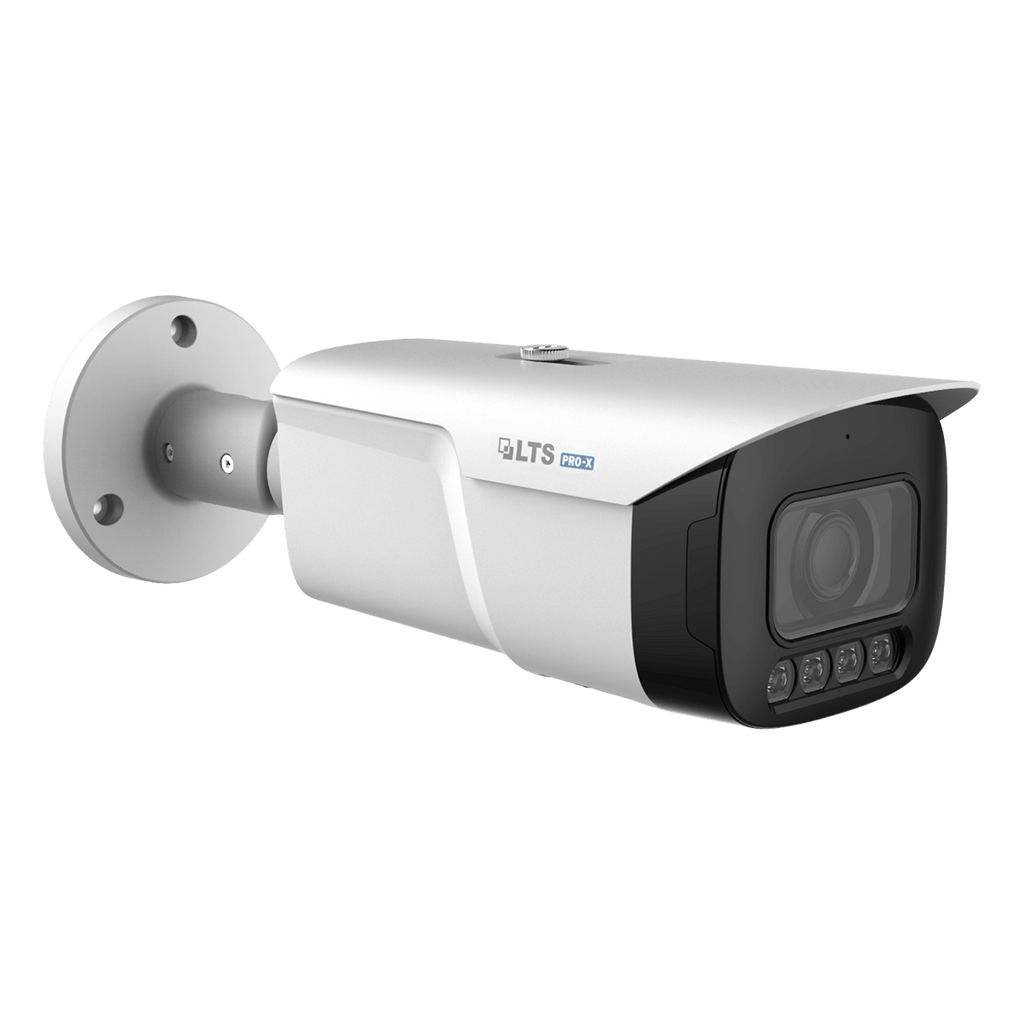

LTS LXIP9C122WI-28MDA 5K, Bullet IP Camera, with X-Search and Hybrid Illumination
Sale price
$372.90
Regular price
$485.00
Skip to product information
LTS LXIP9C122WI-28MDA 5K, Bullet IP Camera, with X-Search and Hybrid Illumination
Sale price
$372.90
Regular price
$485.00
The LTS 12MP Hybrid Illumination Bullet IP Camera delivers ultra-clear 12 MP video with powerful HDR and 3D DNR, ensuring sharp surveillance day and night. With advanced AI detection, built-in mic, intelligent VCA analytics, and flexible PoE/12 V DC power, it"s easy to monitor people and vehicles accurately. Rugged IP67 build and X-Search features make footage review simple and dependable.
Features
- Outputs max. 12MP (4512×2512) @15fps
- 1/2.5" CMOS image sensor
- Min. Illumination 0.0005 Lux @ F1.6
- Built-in IR and warm light LED, Matrix distance up to 98.43ft
- Smart encoding H.265/H.264
- HDR, 3D DNR, HLC, BLC
- MD 2.0 focuses on human & vehicle
- Intelligent Detection: VCA, video metadata, face detection, people counting, etc.
- Built-in MIC
- Alarm: 1 in, 1 out; audio: 1 in, 1 out
- Built-in Micro SD card slot, up to 512GB
- 12V DC/PoE power supply, X-PoE
- IP67 protection
- X-Search 2.0: Target Trajectory, In-area search, Attributes Search. (Requires Pro-X 9 Series NVR with the latest firmware.)
Specifications
| Model | LXIP9C122WI-28MDA |
| Camera | |
| Image Sensor | 1/2.5" 12 Megapixel progressive CMOS |
| Min. Illumination | 0.0005 Lux @ F1.6 |
| Shutter | Auto/Manual 1/3 s-1/100, 000 s |
| S/N Ratio | > 50 dB |
| Noise Reduction | 3D NR |
| Wide Dynamic Range | DWDR |
| Day & Night | Color/B/W |
| Angle Adjustment | Pan: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360° |
| Lens Type | Fixed-focal 2.8mm@F1.6 |
| Iris Type | Fixed |
| Field of View | Horizontal:112°, Vertical: 58°, Diagonal: 139° |
| Close Focus Range | 1.8 m (5.91 ft) |
| DORI | Detect: 98.9m(324.15 ft), Observe: 39.6 m(129.92 ft), Recognize: 19.8 m(64.96 ft), Identify: 9.9 m(32.48 ft) |
| Illuminator | 4 (2 warm LEDs and 2 IR LEDs) |
| Illumination Range | 30 m (98.43 ft) |
| Illuminator Control | Auto/Manual |
| Video | |
| Video Compression | H.265, H.264, MJPEG(only supported by sub stream) |
| Smart Codec | Supported |
| Resolution | 11.3M (4512 x 2512), 8M (3840 x 2160), 6M (3072 x 2048), 5M (3072 x 1728/2592×1944), 4M (2688 x 1520), 3.6M (2560 x 1440), 3M (2048 x 1536), 1080p (1920 x 1080), 1.3M (1280 x 960), 720p (1280 x 720), D1 (704 x 576/704 x 480), VGA (640 x 480), CIF (352 x 288/352 x 240) |
| Video Frame Rate | Main stream: 4512 x 2512 @ (1 fps- 15 fps) Sub stream: D1 @ (1 fps- 15 fps) Third stream: 1920 x 1080 @ (1 fps- 15 fps) |
| Video Stream | 3 streams |
| Bit Rate Control | CBR, VBR |
| Video Bit Rate | H.264: 192 kbps-14336 kbps; H.265: 192 kbps-14336 kbps |
| ROI | Supported (4 areas) |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 x 1520 resolution and lower.) |
| Mirror | Supported |
| Privacy Mask | Supported (4 areas) |
| Event | |
| Perimeter Protection | Tripwire, intrusion, fast moving (Support the classification and accurate detection of vehicle and human); Loitering detection, people gathering, and parking detection |
| Intelligent Motion Detection | Supported |
| Face Detection | Face detection, snapshot, face attributes extraction including 6 attributes and 8 expressions |
| People Counting | Tripwire people counting and people counting in area, generating and exporting report (day/ month/year) |
| Heat Map | Supported |
| Video Metadata | Motor vehicle, non-motor vehicle, face, and human body detection Extraction of motor vehicle and non-motor vehicle attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle. Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body |
| Alarm Event | No SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering, voltage detection, security exception, tripwire, intrusion, fast moving, abandoned object, missing object, loitering detection, people gathering, scene changing, audio detection, external alarm, face detection, IMD, area people counting, stay alarm, people counting, people number exception detection |
| Network | |
| Protocol | IPv4, IPv6, HTTP, TCP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DDNS, QoS, UpnP, NTP, Multicast, NFS, PPPoE, SNMP, P2P |
| Interoperability | ONVIF(Profile S/Profile G/Profile T), CGI |
| Storage | FTP, SFTP, Micro SD Card (support max. 512G), NAS |
| Web Browser | IE, Chrome, Firefox, Safari |
| Client | QuickView, QuickView Plus |
| Interface | |
| Built-in MIC | Supported |
| Audio I/O | 1 channel (RCA port) in, 1 channel (RCA port) out |
| Alarm I/O | 1 channel in: 5mA 3V-5VDC, 1 channel out: 300mA 12VDC |
| Network | RJ-45 (10/100 Base-T) |
| General | |
| Power | 12V DC/PoE (802.3af)/X-POE, < 13W |
| Housing | Metal + Plastic |
| Dimensions | 292.8 mm x 94.8 mm x 85.2 mm (11.53'' x 3.73'' x 3.35'') (L x W x H) |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% RH |
| Storage Conditions | -40°C to +60°C (-40°F to +140°F) |
| Protection Grade | IP67 |
| Net Weight | 0.80 kg (1.8 lb) |
| Gross Weight | 1.07 kg (2.4 lb) |
| Certification | FCC |
