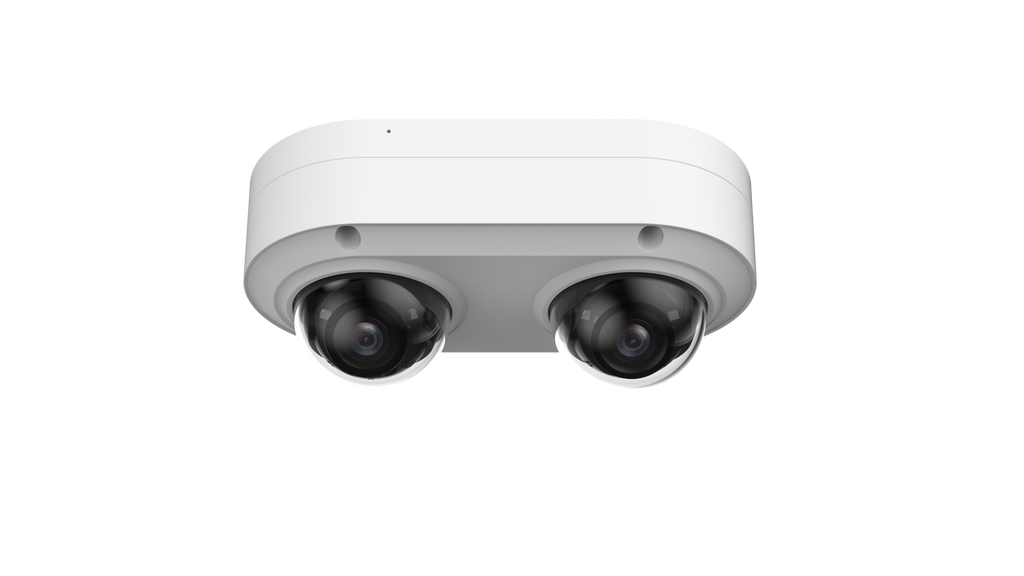

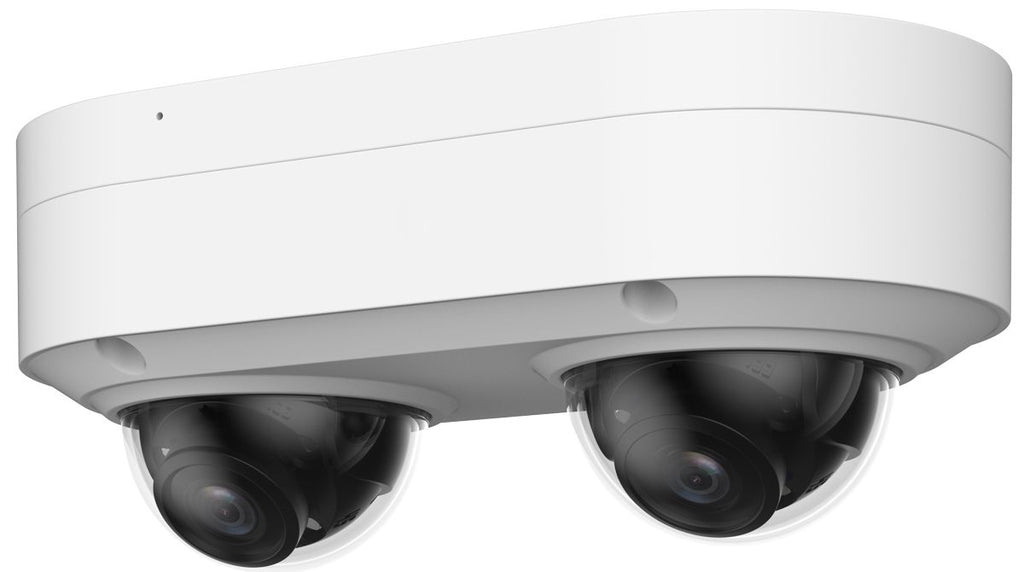

LTS LXIP7742W2-28MDA 2 x 4MP Dual-Directional Fixed-focal Dome Network Camera
Sale price
$394.90
Regular price
$515.00
Skip to product information
LTS LXIP7742W2-28MDA 2 x 4MP Dual-Directional Fixed-focal Dome Network Camera
Sale price
$394.90
Regular price
$515.00
The LXIP7742W2-28MDA is an 8 MP dual-direction fixed-focal dome network camera designed for professional surveillance use, featuring two 4 MP sensors that provide real-time dual coverage of a monitored area. It also features IR illumination for night-time viewing, advanced video content analysis functionality and advanced motion detection technology 2.0, an integrated microphone, the ability to be powered through Power over Ethernet (PoE) or 12V DC power sources, support for MicroSD secure storage, and rugged, high-efficacy IP67-rated housing for all-weather reliability.
Features
- Max. 2 x 4MP Resolution
- Maximum 20fps @ 4MP (2688×1520)
- 1/2.7" CMOS and F1.6 aperture
- Built-in 2 x 2 IR lights, the max. illumination distance is 100ft
- VCA and MD2.0
- Built in MIC
- Built-in Micro SD card slot, up to 256 GB
- 12V DC and PoE
- IP67
Specifications
| Model | LXIP7742W2-28MDA |
| Camera | |
| Image Sensor | Dual 1/2.7" CMOS sensor |
| Min. Illumination | 0.0007 Lux @ F1.6(B/W) |
| E-shutter Speed | Auto/Manual 1/3 s"1/100,000 s |
| S/N Ratio | > 56 dB |
| Noise Reduction | 3D NR |
| Wide Dynamic Range | 120 dB |
| Day & Night | Color/B/W |
| Angle Adjustment | For both cameras: Pan: "90° to 90°; Tilt: 0° to 55°; Rotation: 0° to 360°; |
| Lens Type | Fixed-focal 2.8mm@F1.6 |
| Iris Type | Fixed |
| Field of View | Horizontal: 101°, Vertical: 54°, Diagonal: 120° |
| Close Focus Range | 1.1 m (3.61 ft) |
| DORI | Detect: 207.02 ft (63.1 m) Observe: 82.02 ft (25.0m) Recognize: 41.01 ft (12.5m) Identify: 20.67 ft (6.3m) |
| Illuminators | 2 x IR Lights |
| Illumination Range | Up to 100 ft (30m) |
| Illuminator Control | Auto; Manual |
| Video | |
| Video Compression | H.265; H.264; MJPEG (Sub Stream1 Only) |
| Resolution | 4MP (2688*1520), 4MP (2560*1440), 1080p (1920*1080), 720P (1280*720), D1 (704*480), VGA (640*480), CIF (352*288), CIF (352*240) |
| Maximum Frame Rate | Main stream: 4MP (2688*1520) /20fps, 4MP (2560*1440) /30 fps Sub stream: D1 (704*480) / 30 fps |
| Video Stream | 3 streams |
| Bit Rate Control | CBR, VBR |
| ROI | Supported (4 areas) |
| Image Rotation | 0°, 90°, 180° and 270° (90° and 270° only for 2688×1520 resolution and lower) |
| Mirror | Supported |
| Privacy Mask | Supported (4 areas) |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | PCM; G.711a; G.711Mu; |
| Intelligent Analysis | |
| VCA (Video Content Analytics) | Intrusion, Line Crossing |
| MD 2.0 | Supported |
| Event | |
| Alarm Event | Line Crossing, Intrusion, Motion Detection, MD2.0, Audio Detection, Video Tampering, Disk Full, Disk Error, Offline, IP conflict, Voltage Exception, Security Warning |
| Network | |
| Protocol | IPv4; IPv6; DNS; TCP; UDP; DHCP; HTTP; HTTPS; 802.1X; RTSP; DDNS; P2P; SMTP; RTMP; PPPoE; UPnP; SNMP; Bonjour; QoS; Auto Registration; ICMP; IGMP; FTP; SFTP; RTP; RTCP; NTP; NFS |
| Interoperability | ONVIF (Profile S & Profile G & Profile T),CGI |
| Storage | FTP, SFTP, Micro SD card (support max. 256 GB), NAS |
| Web Browser | Chrome, Firefox |
| PC client | X Station |
| Mobile APP | Pro-X Next |
| Interface | |
| Network port | RJ-45 (10/100 Base-T) |
| Micro SD card Slot | Yes |
| Audio In and Out | 1"Input;1"Output |
| Alarm In and Out | 1 channel in: wet contact, 5 mA 3×5 VDC; 1 channel out: wet contact, 300 mA 12 VDC |
| Reset Button | Supported |
| General | |
| Power Supply | 12 VDC / PoE (802.3af) |
| Power Consumption | 12 VDC: Max 13W, Typical 4.8W / PoE: Max 15.9W, Typical 6.5W |
| Housing | Metal |
| Dimensions | 6.46" " 3.31" " 2.73" (164 mm " 84 mm " 69.4 mm) (L " W " H) |
| Dimension With Box | 8.07" " 4.76" " 3.98" (205mm " 121 mm " 101 mm) (L "W "H) |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% RH |
| Storage Conditions | -40°C to +60°C (-40°F to +140°F) |
| Protection Grade | IP67 |
| Net Weight | 624.65g(1.38lb) |
| Gross Weight | 820.5g(1.82lb) |
| Certification | FCC |
