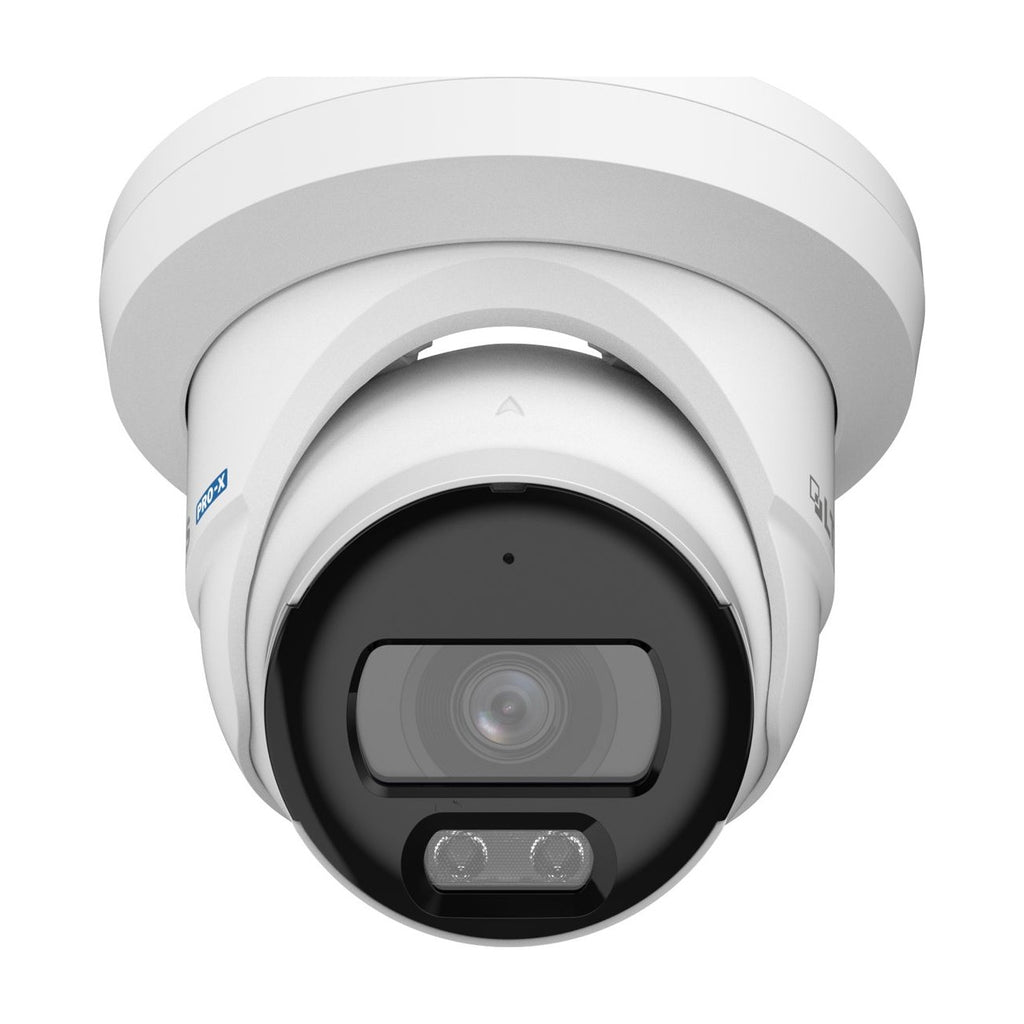

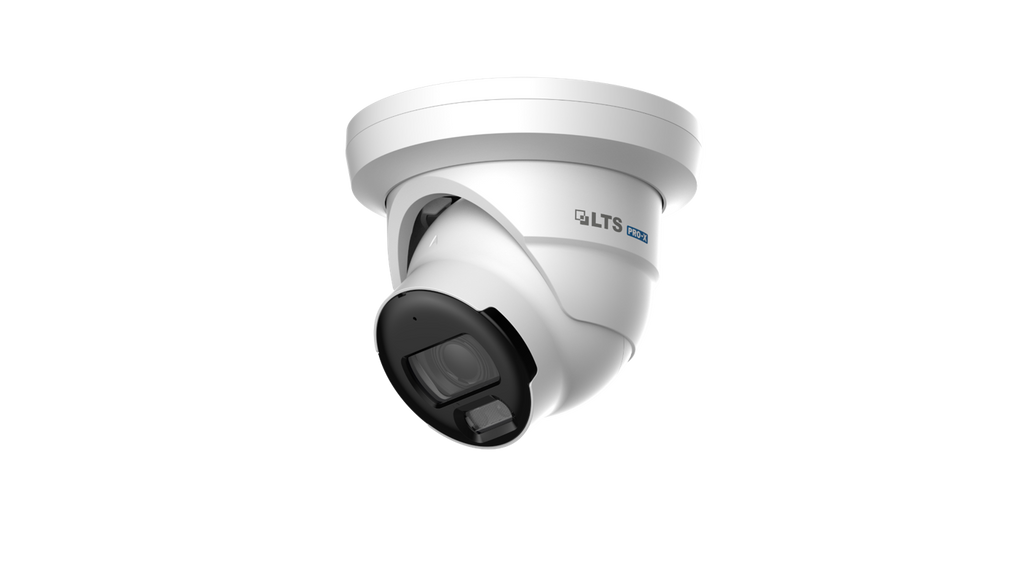

LTS LXIP3C82W-28AISP 8MP AI ISP Fixed Turret Network Camera
Sale price
$196.90
Regular price
$255.00
Skip to product information
LTS LXIP3C82W-28AISP 8MP AI ISP Fixed Turret Network Camera
Sale price
$196.90
Regular price
$255.00
The LTS 8 MP AI ISP Turret IP Camera captures crisp 4K detail with advanced AI-ISP color processing and built-in warm white lights for clear images even at night. Smart AI analytics detect human and vehicle motion quickly, and the built-in mic and MicroSD slot make reviewing footage easy. PoE/12 V power and rugged IP67 weather resistance ensure dependable outdoor security.
Features
- Max.8MP Resolution
- Maximum 20fps at 8MP (3840×2160)
- 1/1.8" CMOS and F1.0 aperture
- With AI-ISP technology to effectively handle image color inconsistencies
- The Min. illumination is 0.0001 Lux at F1.0
- Built-in 2x warm white lights, and the max. illumination distance is 100ft
- VCA with Line Crossing and Intrusion by AI algorithm
- MD2.0 focus on Human and Vehicle
- Built in MIC
- Built-in Micro SD card slot, up to 256 GB
- 12V DC and PoE
- IP67
Specifications
| Model | LXIP3C82W-28AISP |
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Min. Illumination | 0.0001 lux at F1.0 |
| E-shutter Speed | Auto/Manual 1/3 s"1/100,000 s |
| S/N Ratio | > 56 dB |
| Noise Reduction | 3D NR |
| Wide Dynamic Range | 120 dB |
| Day & Night | Color/B/W |
| Angle Adjustment | Pan and Rotation: 0°-360° Tilt: 0°-78° |
| Lens Type | Fixed-focal 2.8mm at F1.0 |
| Iris Type | Fixed |
| Field of View | Horizontal: 110°, Vertical: 59°, Diagonal: 131° |
| Close Focus Range | 9.19 ft (2.8 m) |
| DORI | Detect: 275.59 ft (84 m) Observe: 110.24 ft (33.6 m) Recognize: 55.12 ft (16.8 m) Identify: 8.4 ft (27.56 m) |
| Illuminators | 2x Warm white Lights |
| Illumination Range | Up to 100 ft |
| Illuminator Control | Auto, Manual, Off |
| Video | |
| Video Compression | H.265; H.264; MJPEG (Sub Stream Only) |
| Resolution | 8MP (3840*2160), 6M (3072*2048), 5M (3072*1728), 5M (2880*1620), 4M (2688*1520), 3M (2048*1536), 3M(2304*1296), 1080p (1920*1080), 1.3M (1280*960), 720p (1280*720), D1 (704*576), D1(704*480), VGA (640* 480), CIF (352*288), CIF (352*240) |
| Maximum Frame Rate | Main stream: 8MP (3840*2160) at 20fps, 4MP (2688*1520) at 30 fps Sub stream: D1 (704*576) at 25 fps, D1(704*480) at 30 fps |
| Video Stream | 2 streams |
| Bit Rate Control | CBR, VBR |
| ROI | Supported (4 areas) |
| Image Rotation | 0°, 90°, 180° and 270° (90° and 270° only for 2688×1520 resolution and lower) |
| Mirror | Supported |
| Privacy Mask | Supported (4 areas) |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | PCM, G.711a, G.711Mu |
| Intelligent Analysis | |
| VCA (Video Content Analytics) | Intrusion, Line Crossing |
| MD2.0 | Supported |
| Event | |
| Alarm Event | Line Crossing, Intrusion, Motion Detection, MD2.0, Audio Detection, Video Tampering, Disk Full, Disk Error, Offline, IP conflict, Voltage Detection, Security Warning |
| Network | |
| Protocol | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1x, RTSP, DDNS, P2P, SMTP, RTMP, PPPoE, UPnP, SNMP, Bonjour, QoS, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| Storage | FTP, SFTP, Micro SD card (support max. 256 GB), NAS |
| Web Browser | Chrome, Firefox |
| PC client | X-Station |
| Mobile APP | Pro-x Next |
| Interface | |
| Network port | RJ-45 (10/100 Base-T) |
| Micro SD card Slot | Yes |
| Reset Button | Supported |
| General | |
| Power Supply | 12 VDC / PoE (802.3af) |
| Power Consumption | 12 VDC: Max 5.6W, Typical 2.4W / PoE: Max 6.4W, Typical 3W |
| Housing | Metal |
| Dimensions | Φ4.8" x 4.49" (Φ122.0 mm x 114.0 mm) |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% RH |
| Storage Conditions | -40°C to +60°C (-40°F to +140°F) |
| Protection Grade | IP67 |
| Net Weight | 1.19lb (539.77g) |
| Gross Weight | 1.57lb (712.14g) |
| Certification | FCC |
