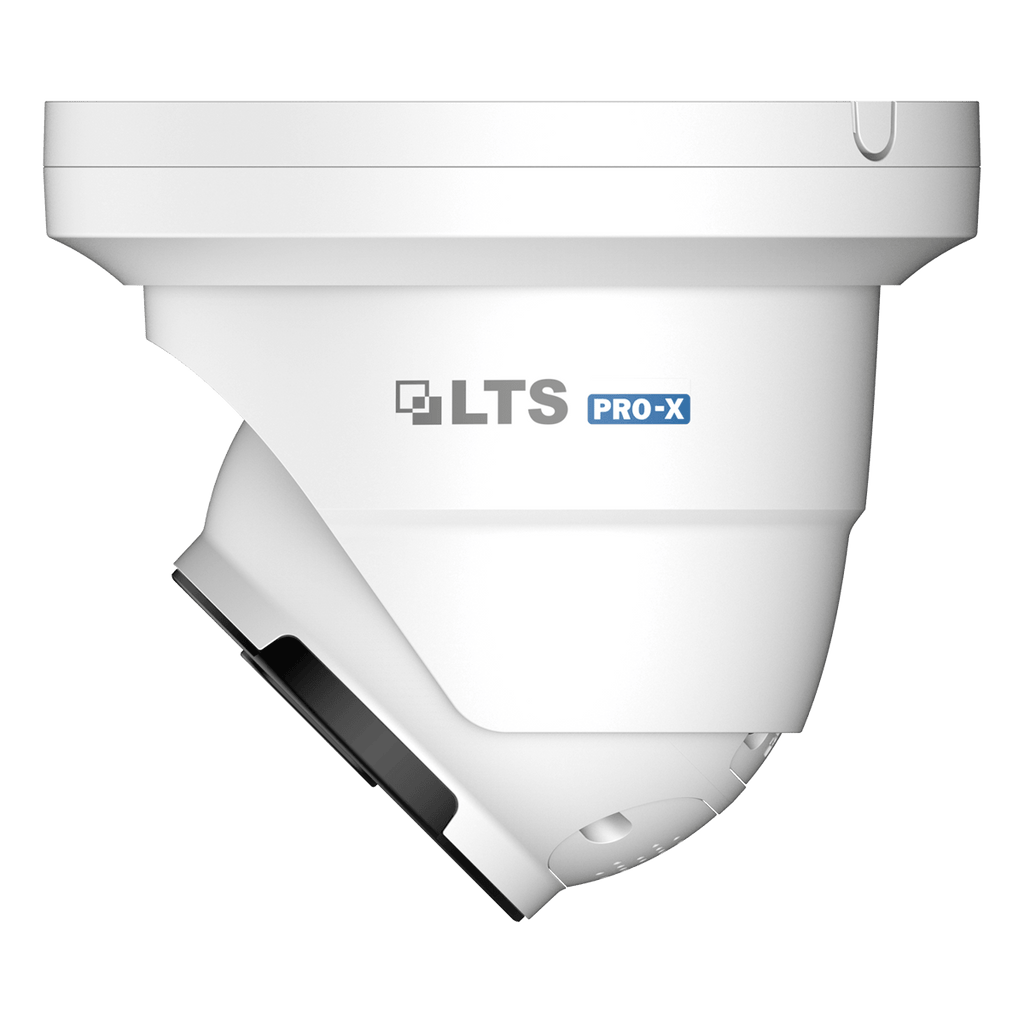

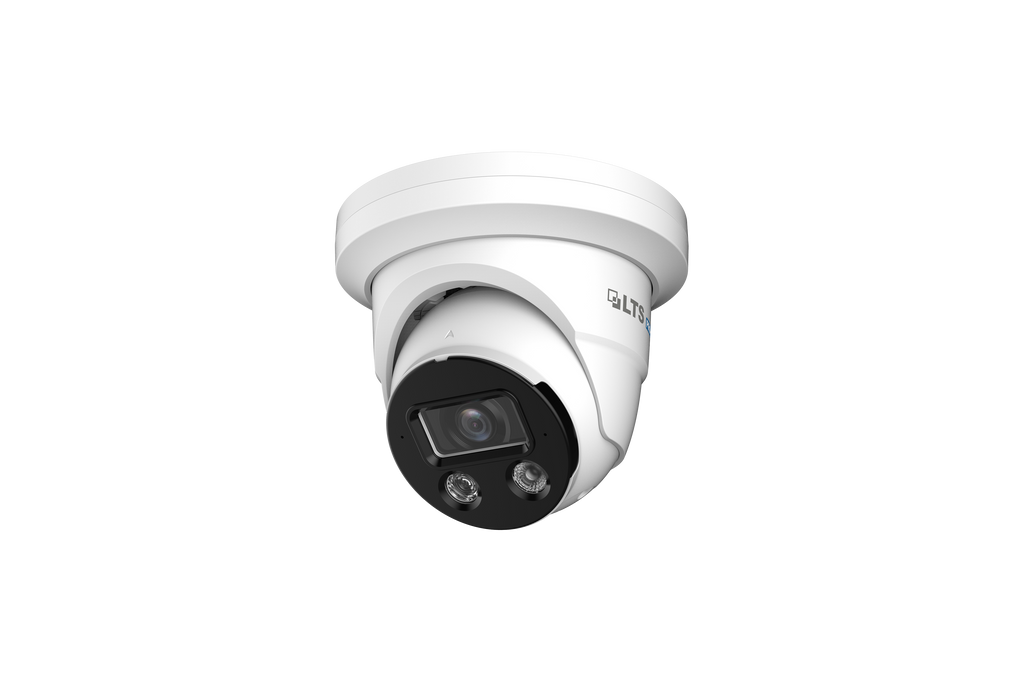

LTS LXIP3C82NWI-28SDL Pro-X 8 MP Color 24/7 X-Deterrence & X-Search Turret IP Camera
Sale price
$218.90
Regular price
$285.00
The LTS Pro-X 8 MP Color 24/7 X-Deterrence Turret IP Camera delivers stunning 4K video with round-the-clock color imaging, True WDR, and smart perimeter detection. Built-in siren and flashing lights deter intruders, while human/vehicle MD 2.0, X-Search tracking, mic/speaker, and hybrid illumination make monitoring and review effortless. PoE/12 V and rugged IP67 design ensure reliable outdoor security.
Features
- 8 MP, 3840 x 2160 @ 30 fps
- Fixed 2.8 mm lens
- 0.0005 lux @ f 1.0 (Color, 30 IRE), 0 lux with illuminator on
- Smart H.264 / H.265 compression
- 1/2.8" Progressive Scan CMOS
- Illuminators up to 98 feet
- X-Deterrence: Siren and visual alerts (red and blue flashing lights)
- X-Search: Locate and track persons of interest across channels in seconds.
- Two-way talk, True WDR 120 dB
- Built-in mic and speaker, 1 channel in/out
- MicroSD storage up to 256 GB
- IP67
- 12V DC, PoE
- Color imaging 24/7
- MD 2.0 - Human and vehicle detection
- Hybrid illumination
Specifications
| Model | LXIP3C82NWI-28SDL |
| Camera | |
| Image Sensor | 1/2.8" 8Megapixel progressive CMOS |
| Min. Illumination | 0.0005 Lux @ f1.0 (Color, 30 IRE), 0.0001 Lux @ f1.0 (B&W, 30 IRE), 0 Lux with illuminator on |
| Shutter Speed | Auto / Manual 1/3 - 1/100, 000 sec. |
| S/N Ratio | > 56 dB |
| Noise Reduction | 3D NR |
| Wide Dynamic Range | 120 dB |
| Day & Night Imaging | Auto (ICR) / Color / B&W |
| Angle Adjustment | Pan: 0° - 360°, Tilt: 0° - 78°, Rotation: 0° - 360° |
| Lens Type | Fixed-focal 2.8 mm @ f1.0 |
| Iris Type | Fixed |
| Field of View | Horizontal: 106°, Vertical: 55°, Diagonal: 125° |
| Close Focus Range | 6.56 ft (92.0 m) |
| DORI | Detect: 298.56 ft (91.0 m), Observe: 119.42 ft (36.4 m), Recognize: 59.71 ft (18.2 m), Identify: 29.86 ft (9.1 m) |
| Illuminator | 1 (IR LED), 1 (warm supp. light) |
| Illumination Range | 98.43 ft (30 m) |
| Illuminator Control | Auto / Manual |
| Video | |
| Video Compression | MJPEG (only supported by sub stream), H.264, H.264H, H.264B, H.265 |
| Smart Codec | Supported |
| Resolution | 8 MP (3840 x 2160), 6 MP (3072 x 2048), 5 MP (3072 x 1728 / 2592×1944), 4 MP (2688 x 1520), 4 MP (2560 x 1440), 3 MP (2304 x 1296 / 2048 x 1536), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 576 / 704 x 480), VGA (640 x 480), CIF (352 x 288 / 352 x 240) |
| Video Frame Rates | Main stream: 3840 x 2160 @ (1 - 30 fps) Sub stream: 704 x 576 @ (1 - 25 fps), 704 x 480 @ (1 - 30 fps) Third stream: 1920 x 1080 @ (1 - 30 fps) |
| Video Stream | 3 streams |
| Bit Rate Control | CBR, VBR |
| Video Bit Rates | H.264: 32 Kbps - 8,192 Kbps H.265: 12 Kbps - 8,192 Kbps |
| ROI | Supported (4 areas) |
| Image Rotation | 0° / 90° / 180° / 270° (supports 90° / 270° with 2688 x 1520 resolution or lower) |
| Mirror | Supported |
| Privacy Mask | Supported (8 areas) |
| Audio | |
| Built-in Mic | Supports dual mics |
| Built-in Speaker | Yes |
| Audio Compression | PCM, G.711 a, G.711 Mu, G.726, G.723 |
| Intelligent Analysis | |
| VCA | X search,Tripwire, intrusion (supports classification and accurate detection of vehicles and persons) |
| MD 2.0 | Yes, supports alarm triggered by vehicles and persons |
| Event Types | |
| Alarm Events | No SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering, voltage detection, security exception, tripwire, intrusion, scene changing, audio detection, external alarm, IMD |
| Network | |
| Protocols | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP , RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP; NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x |
| Interoperability | ONVIF (Profile S / Profile G / Profile T), API, P2P |
| Storage | FTP, SFTP, MicroSD Card (supports up to 256 G), NAS |
| Web Browsers | IE, Chrome, Firefox |
| Client | PRO-X, X-Station |
| Interface | |
| Audio I/O | 1 channel (RCA port) in, 1 channel (RCA port) out |
| Alarm I/O | 1 channel in: 5 mA, 3 - 5 VDC, 1 channel out: 300 mA, 12 VDC |
| Network | RJ-45 (10/100 Base-T) |
| General | |
| Power | 12 VDC / PoE (802.3 af), < 10.2 W |
| Housing | Aluminum alloy body, except for trim ring |
| Dimensions | 4.91 x Φ 5.61'' (124.7 x Φ 142.0 mm) |
| Operating Conditions | -40° to 140° F (-40° to 60° C), less than 95% RH |
| Storage Conditions | -40° to 140° F (-40° to 60° C) |
| Protections | IP67 |
| Net Weight | 1.85 lb (0.84 kg) |
| Gross Weight | 2.23 lb (1.01 kg) |
| Certifications | FCC |
