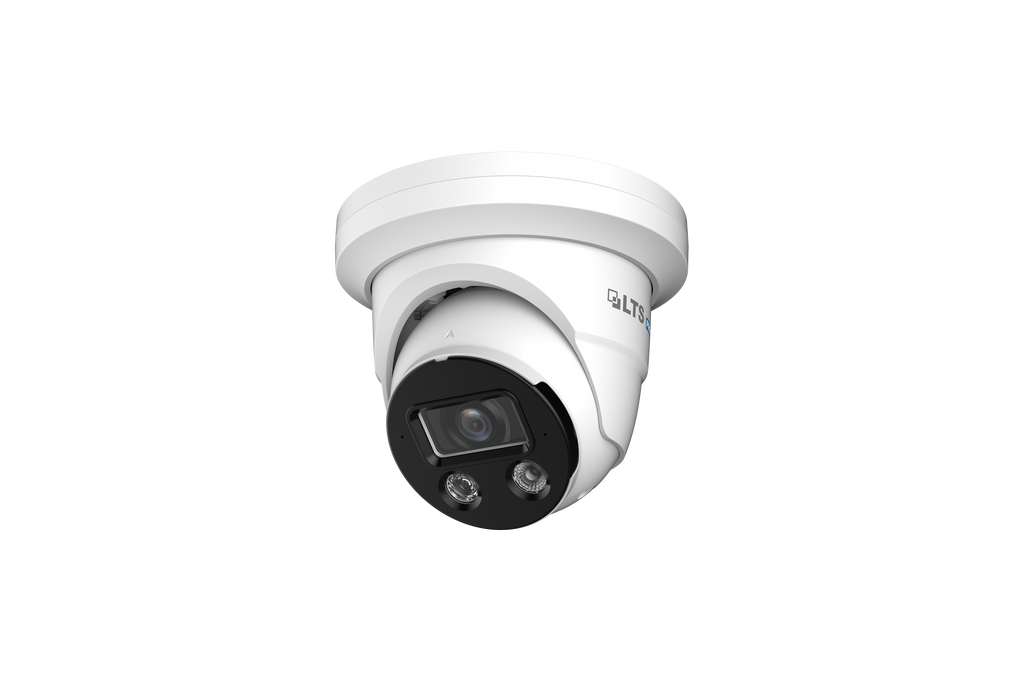

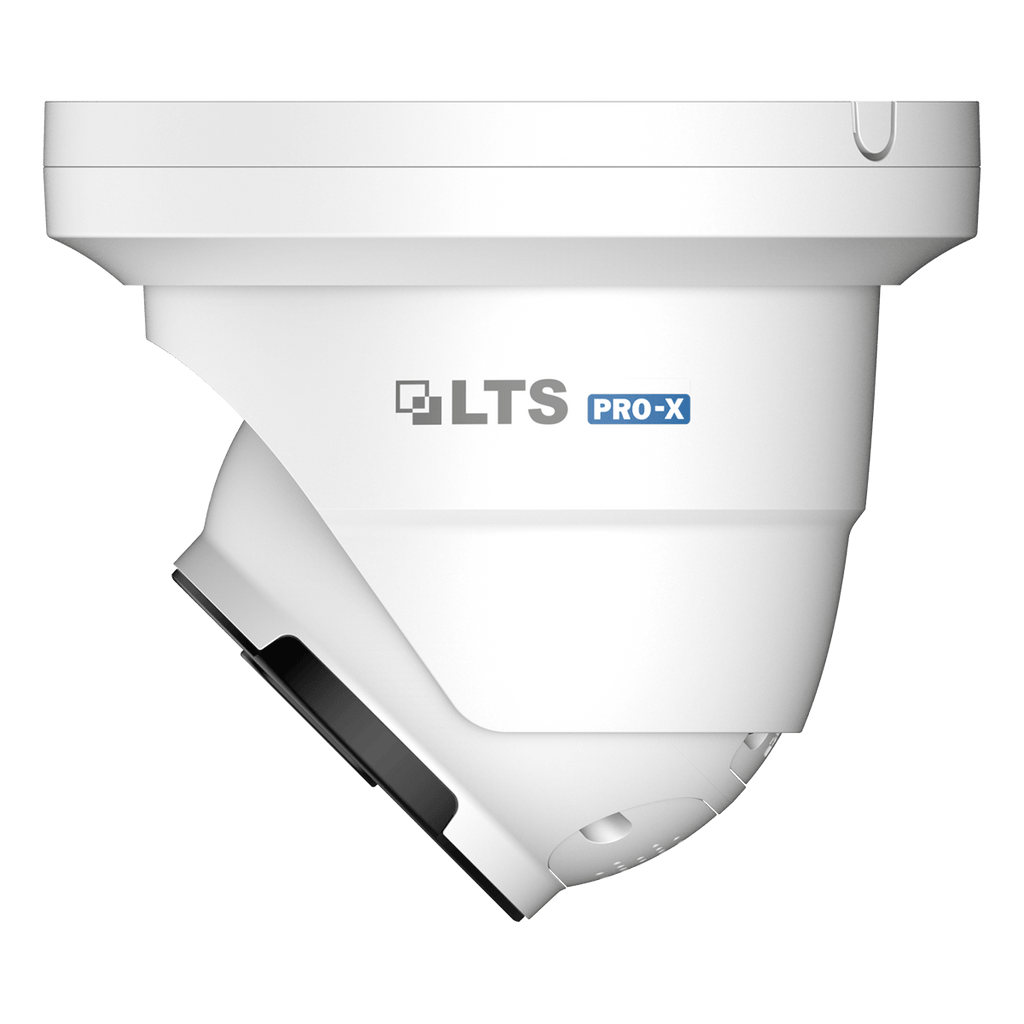

LTS LXIP3C42NWI-28SDL 4MP Pro-X Intelligent Color Series with X-Deterrence
Sale price
$251.90
Regular price
$325.00
The LTS 4 MP Pro-X Intelligent Color Turret IP Camera delivers crisp 4 MP video with 24/7 color imaging, True WDR, and hybrid illumination for clear footage in any light. Smart MD 2.0 human/vehicle detection, built-in siren with visual alerts, mic/speaker, and X-Search make monitoring easy. PoE/12 V power and rugged IP67 construction ensure reliable outdoor security.
Features
- 4 MP, 3840 x 2160 @ 30 fps
- Fixed 2.8 mm lens
- 0.0005 lux @ f 1.0 (Color, 30 IRE), 0 lux with illuminator on
- Smart H.264 / H.265 compression
- 1/2.8" Progressive Scan CMOS
- Illuminators up to 98 feet
- X-Deterrence: Siren and visual alerts (red and blue flashing lights)
- X-Search: Locate and track persons of interest across channels in seconds.
- Two-way talk, True WDR 120 dB
- Built-in mic and speaker, 1 channel in/out
- MicroSD storage up to 256 GB
- IP67
- 12V DC, PoE
- Color imaging 24/7
- MD 2.0 - Human and vehicle detection
- Hybrid illumination
Specifications
| Model | LXIP3C42NWI-28SDL |
| Camera | |
| Image Sensor | 1/2.7" 4Megapixel progressive CMOS |
| Min. Illumination | 0.0005 Lux@F1.0 (Color, 30 IRE), 0.0001 Lux@F1.0 (B/W, 30 IRE), 0 Lux with illuminator on |
| Shutter | Auto/Manual 1/3 s-1/100, 000 s |
| S/N Ratio | > 56 dB |
| Noise Reduction | 3D NR |
| Wide Dynamic Range | 120 dB |
| Day & Night | Auto(ICR)/Color/B/W |
| Angle Adjustment | Pan: 0°-360°, Tilt: 0°-78°, Rotation: 0°-360° |
| Lens Type | Fixed-focal 2.8mm@F1.0 |
| Iris Type | Fixed |
| Field of View | Horizontal:101°, Vertical: 53°, Diagonal: 120° |
| Close Focus Range | 1.5 m (4.92ft) |
| DORI | Detect: 66.0m(216.54ft), Observe: 26.4 m(86.61ft), Recognize: 13.2 m(43.31ft), Identify: 6.6 m(21.65ft) |
| Illuminator | 1 (IR LED), 1 (warm light) |
| Illumination Range | 30 m (98.43ft) |
| Illuminator Control | Auto/Manual |
| Video | |
| Video Compression | H.265, H.264, H.264H, H.264B, MJPEG(only supported by sub stream) |
| Smart Codec | Supported |
| Resolution | 4M (2688 x 1520), 4MP (2560 x 1440), 3M (2304 x 1296/2048 x 1536), 1080p (1920 x 1080), 1.3M (1280 x 960), 720p (1280 x 720), D1 (704 x 576/704 x 480), VGA (640 x 480), CIF (352 x 288/352 x 240) |
| Video Frame Rate | Main stream: 2688 x 1520 @ (1 fps- 30 fps) Sub stream: 704 x 576 @ (1 fps- 25 fps), 704 x 480 @ (1 fps- 30 fps) Third stream: 1920 x 1080 @ (1 fps- 30 fps) |
| Video Stream | 3 streams |
| Bit Rate Control | CBR, VBR |
| Video Bit Rate | H.264: 32 kbps-8192 kbps, H.265: 12 kbps-8192 kbps |
| ROI | Supported (4 areas) |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 x 1520 resolution and lower.) |
| Mirror | Supported |
| Privacy Mask | Supported (8 areas) |
| Audio | |
| Built-in MIC | Supported Dual MICs |
| Built-in Speaker | Yes |
| Audio Compression | PCM, G.711a, G.711Mu, G.726, G.723 |
| Intelligent Analysis | |
| VCA | X search, Tripwire, intrusion (Support the classification and accurate detection of vehicle and human) |
| MD 2.0 | Yes, support alarm triggered by vehicle and human |
| Event | |
| Alarm Event | No SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering, voltage detection, security exception, tripwire, intrusion, scene changing, audio detection, external alarm, IMD |
| Network | |
| Protocol | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP , RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x |
| Interoperability | ONVIF(Profile S/Profile G/Profile T), API, P2P |
| Storage | FTP, SFTP, Micro SD Card (support max. 256 G), NAS |
| Web Browser | IE, Chrome, Firefox |
| Client | PRO-X, X Station |
| Interface | |
| Audio I/O | 1 channel (RCA port) in, 1 channel (RCA port) out |
| Alarm I/O | 1 channel in: 5mA 3V-5VDC, 1 channel out: 300mA 12VDC |
| Network | RJ-45 (10/100 Base-T) |
| General | |
| Power | 12V DC/PoE (802.3af), < 8.8W |
| Housing | Aluminum alloy body, except for trim ring |
| Dimensions | 124.7 mm x Φ142.0 mm (4.91'' x Φ5.61'') |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% RH |
| Storage Conditions | -40°C to +60°C (-40°F to +140°F) |
| Protection Grade | IP67 |
| Net Weight | 0.84 kg (1.85lb) |
| Gross Weight | 1.01 kg (2.23lb) |
| Certification | FCC |
