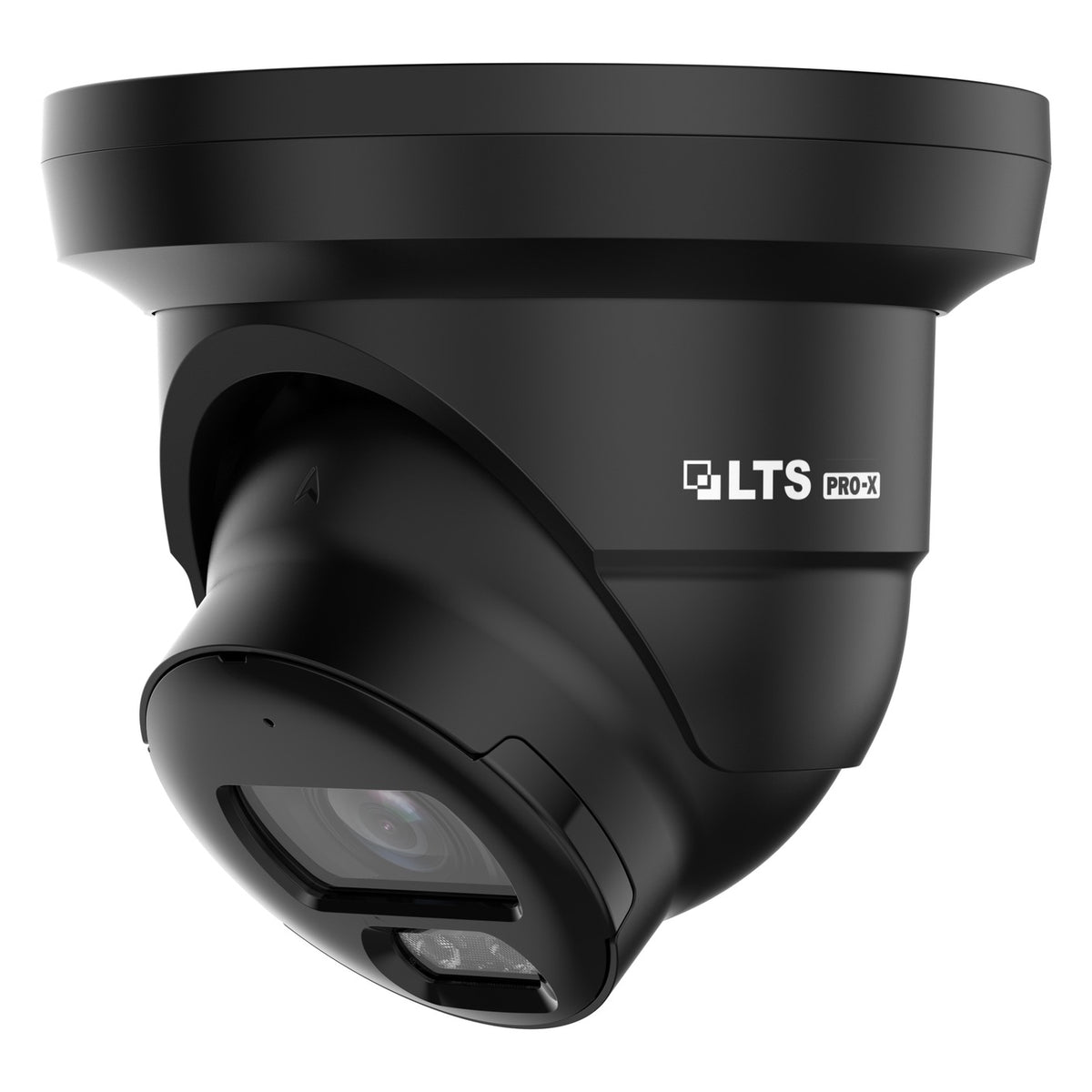

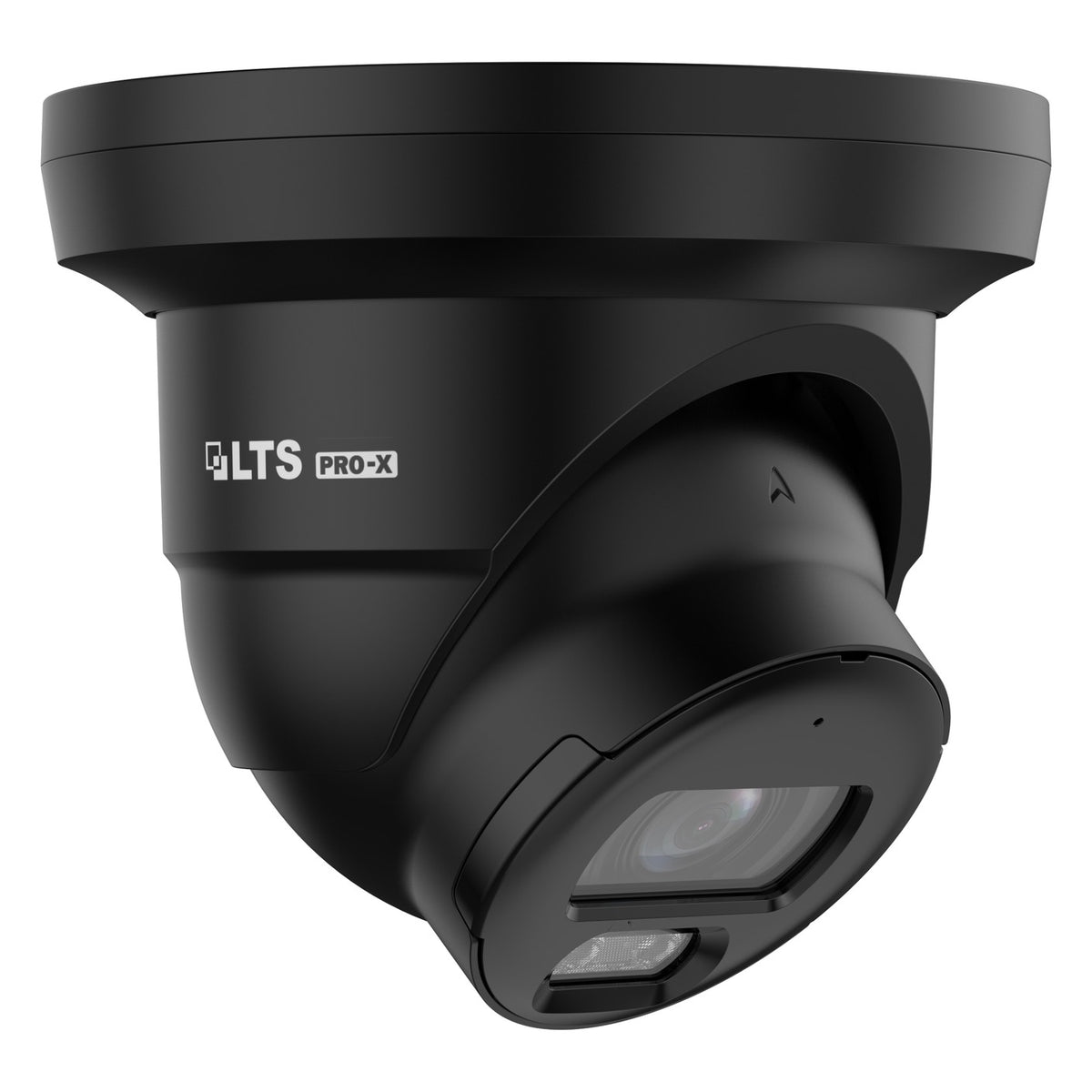

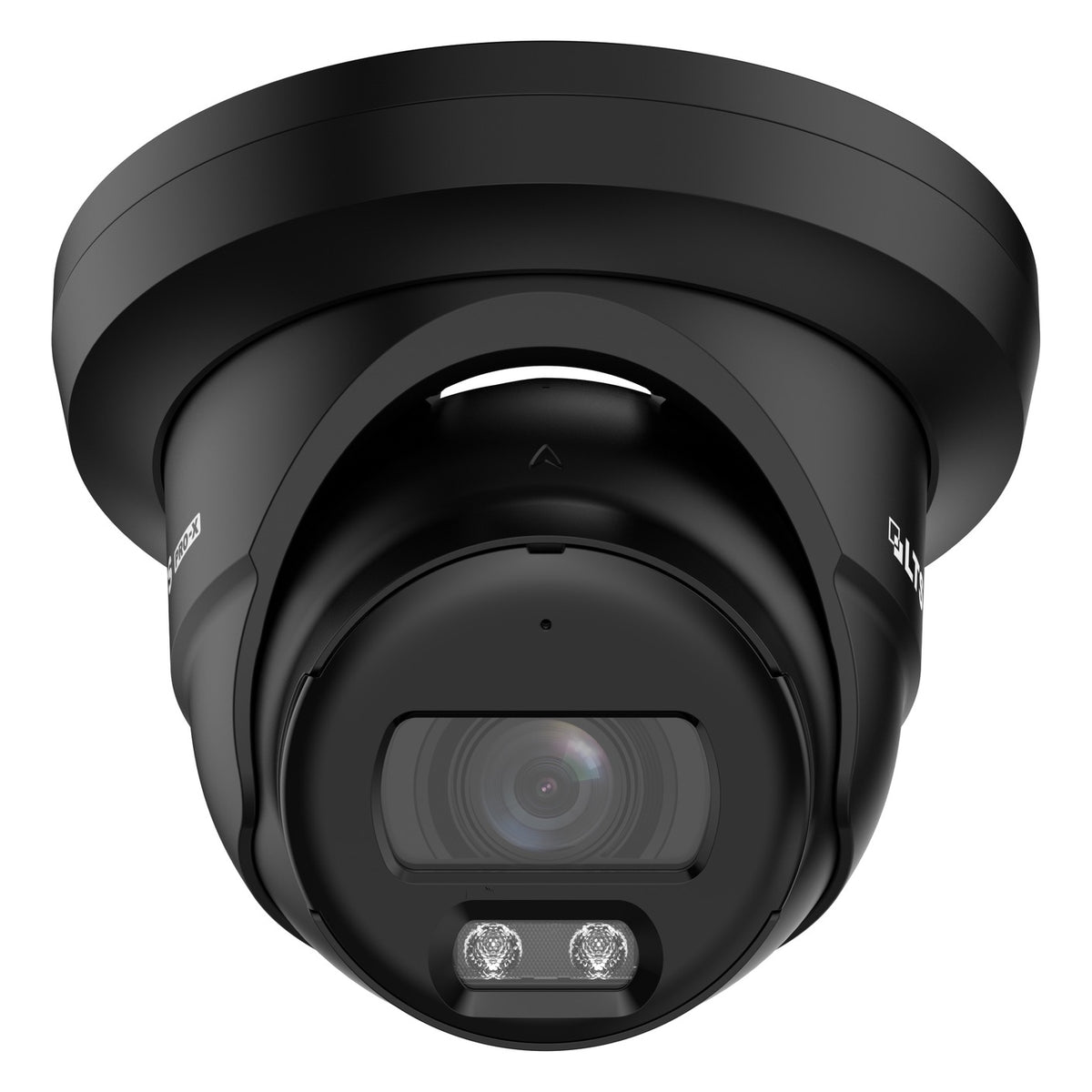

LTS LXIP3582WEB-28MDA Pro-X 8MP Dual Light Lite Black Fixed Turret Network Camera 2.8mm
Sale price
$218.95
Regular price
$269.95
LTS LXIP3582WEB-28MDA - NDAA compliant Pro-X, black, 8MP 4K, 2.8mm fixed lens, Dual Light Lite (IR + warm light), MD 2.0, built-in mic, IP67, 12VDC/PoE.
- Max.8MP Resolution
- Maximum 20fps at 8MP (3840*2160)
- 1/2.7" CMOS and F1.6 aperture
- Built-in warm white light and IR light, and the max. illumination distance is 100 ft
- VCA with Line Crossing and Intrusion by AI algorithm
- MD2.0 focus on Human and Vehicle
- Built in MIC
- Built-in Micro SD card slot, up to 256 GB
- 12V DC and PoE
- IP67
| Camera | |
| Image Sensor | 1/2.7" CMOS |
| Min. Illumination | 0.007 Lux @ F1.6 (Color), 0.0007 Lux @ F1.6(B/W) |
| E-shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| S/N Ratio | > 56 dB |
| Noise Reduction | 3D NR |
| Wide Dynamic Range | 120 dB |
| Day & Night | Color/B/W |
| Angle Adjustment | Pan and Rotation: 0°-360° Tilt: 0°-78° |
| Lens Type | Fixed-focal 2.8mm at F1.6 |
| Iris Type | Fixed |
| Field of View | Horizontal: 110°, Vertical: 58°, Diagonal: 132° |
| Close Focus Range | 4.92 ft (1.5 m) |
| DORI | Detect: 277.23 ft (84.5 m) Observe: 110.27 ft (33.6 m) Recognize: 54.46 ft (16.6 m) Identify: 27.23 ft (8.3 m) |
| Illuminators | 1 x Warm white Light, 1x IR Light |
| Illumination Range | Up to 100 ft |
| Illuminator Control | Auto, Manual, Off |
| Video | |
| Video Compression | H.265; H.264; MJPEG (Sub Stream Only) |
| Resolution | 8MP (3840*2160), 6MP (3072*2048), 5MP (3072*1728), 5MP (2880*1620), 4MP (2688*1520), 3MP (2048*1536), 3MP (2304*1296), 1080P (1920*1080), 1.3MP (1280*960), 720P (1280*720), D1 (704*480), VGA (640*480), CIF (352*240) |
| Maximum Frame Rate | Main stream: 8MP (3840*2160) at 20 fps, 4MP (2688*1520) / 30 fps Sub stream: D1 (704*576) / 30 fps |
| Video Stream | 2 streams |
| Bit Rate Control | CBR, VBR |
| ROI | Supported (4 areas) |
| Image Rotation | 0°, 90°, 180° and 270° (90° and 270° only for 2688 × 1520 resolution and lower) |
| Mirror | Supported |
| Privacy Mask | Supported (4 areas) |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | PCM, G.711a, G.711Mu |
| Intelligent Analysis | |
| VCA (Video Content Analytics) | Intrusion, Line Crossing |
| MD2.0 | Supported |
| Event | |
| Alarm Event | Line Crossing, Intrusion, Motion Detection, MD2.0, Audio Detection, Video Tampering, Disk Full, Disk Error, Offline, IP conflict, Voltage Detection, Security Warning |
| Network | |
| Protocol | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, PPPoE, UPnP, Bonjour, QoS, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| Storage | FTP, SFTP, Micro SD card (support max. 256 GB), NAS |
| Web Browser | Chrome, Firefox |
| PC client | X Station |
| Mobile APP | Pro-X Next |
| Interface | |
| Network port | RJ-45 (10/100 Base-T) |
| Micro SD card Slot | Yes |
| Audio I/O | 1 x Input, 1 x Output |
| Alarm I/O | 1 x Input (Max. 5 VDC, 5 mA), 1 x Output (Max. 12 VDC, 300 mA) |
| Reset Button | Supported |
| General | |
| Power Supply | 12 VDC / PoE (802.3af) |
| Power Consumption | 12 VDC: Max 6.9W, Typical 2.6W / PoE: Max 8.3W, Typical 3.3W |
| Housing | Metal |
| Dimensions | Φ4.80" x 4.4" (Φ122.0 mm x 118.4 mm) |
| Dimensions With Box | 5.83’’×5.47’’×5.39’’ (148mm×139mm×137mm) (L*W*H) |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% RH |
| Storage Conditions | -40°C to +60°C (-40°F to +140°F) |
| Protection Grade | IP67 |
| Net Weight | 1.20lb (543g) |
| Gross Weight | 1.56lb (710g) |
| Certification | FCC |
