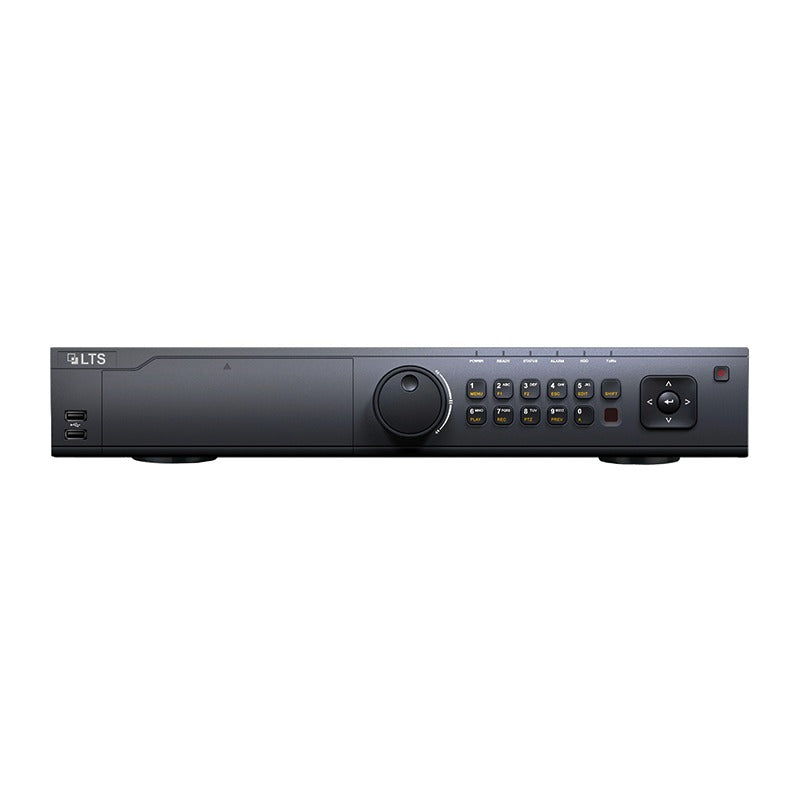

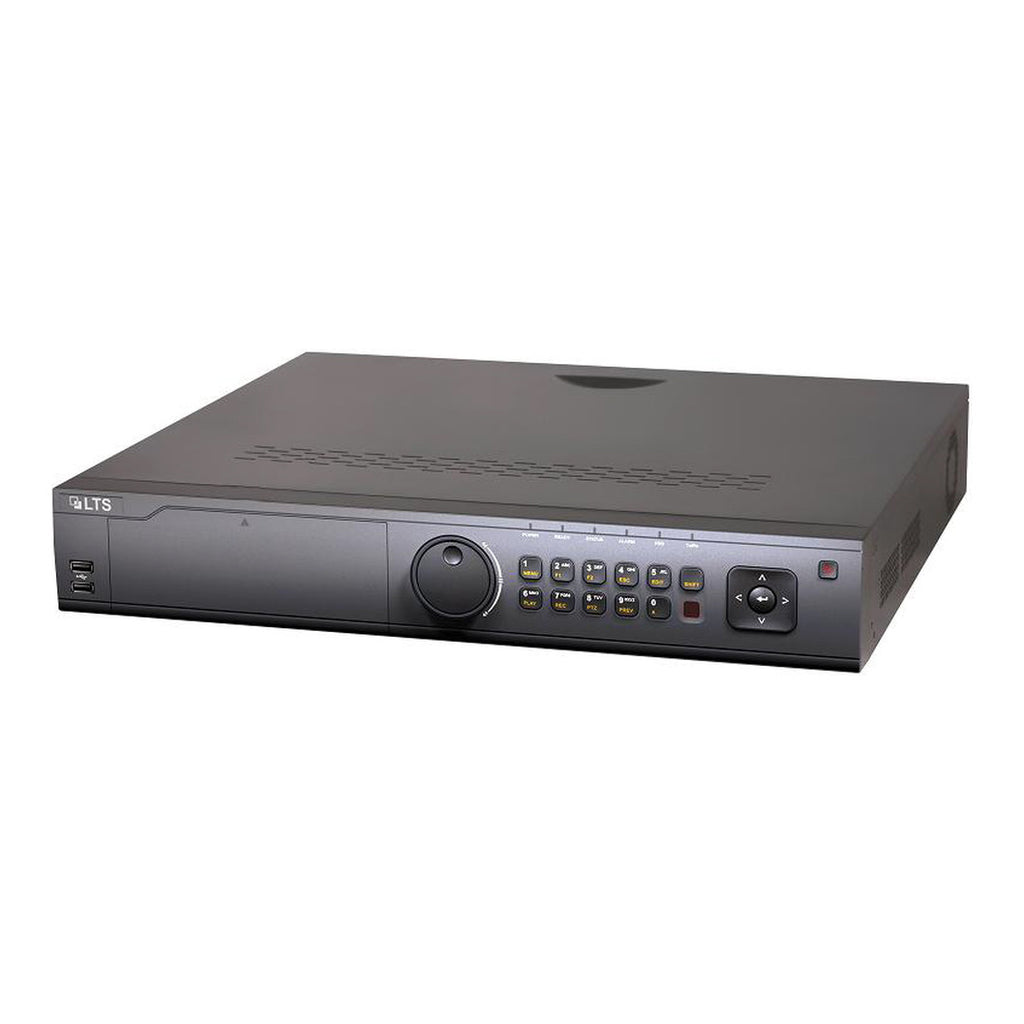

LTS LTN8932H-P16 Platinum Enterprise Level 32 Channel NVR
Sale price
$960.36
Regular price
$1,315.00
Get this Platinum Enterprise Level 32 Channel NVR to keep everyone safe. It is connectable to IP cameras and third-party cameras. It supports multiple VCA events to for auto detection of spatial and temporal events. The playback efficiency is improved by the smart playback feature whereas its smart search feature allows you to search the selected part in the video.
- New logical and visualized GUI design
- Dual-OS design to ensure high reliability of system running
- ANR technology to enhance the storage reliability when the network is disconnected
- Adopt stream over TLS encryption technology (enhanced SDK service and RTP over HTTPS protocol) which provides more secure stream transmission service (max. 128 Mbps TLS stream outgoing bandwidth)
- Up to 32-ch IP cameras can be connected (up to 12 MP)
- Connectable to the third-party network cameras
- H.265+ compression effectively reduces the storage space by up to 75%
- Full channel recording at up to 12MP resolution
- HDMI and VGA independent outputs provided
- HDMI Video output at up to 4K (3840 2160) resolution
- Up to 4 SATA interfaces connectable for HDD connection
- 16-ch synchronous playback at up to 1080p resolution
- Important files management
- HDD health monitoring
- Supports multiple VCA (Video Content Analytics) events
- Smart search for the selected area in the video; and smart playback to improve the playback efficiency
- Supports VCA search for fire/ship/temperature/temperature difference detection triggered video files
- POS information overlay on live view and playback
- POS triggered recording and alarm
- LTS-Connect for easy network management
- Gigabit Ethernet network interface
- 16 independent PoE network interfaces are provided
- Long distance (100-300 m) network transmission via PoE
| Model | LTN8932H-P16 | |
| Recorder Series | Platinum Series | |
| Recorder Channel | 32-Channel | |
| Recorder Case | 1.5U Case | |
| Recorder Technology | IP / NVR | |
| Featured Product | No | |
| Video/Audio input | ||
| IP video input | 32-ch Up to 12 MP resolution |
|
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) | |
| Network | ||
| Incoming bandwidth | 256 Mbps | |
| Outgoing bandwidth | 256 Mbps | |
| Remote connection | 128 | |
| Video/Audio output | ||
| Recording resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF | |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 576, NTSC: 704 480 | |
| HDMI1 output resolution | 4K (3840 2160)/60Hz, 4K (3840 2160)/30Hz, 2K(25601440)/60Hz, 1920 1080p/60Hz, 1600 1200/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz |
|
| VGA output resolution | 2K(25601440)/60Hz,1920 1080/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz,HDMI1/VGA Simultaneous Output | |
| HDMI2 output resolution | 1920 1080/60Hz , 1280 1024/60Hz , 1280 720/60Hz , 1024 768/60Hz | |
| Audio output | 1-ch, RCA (Linear, 1 KO) | |
| Decoding | ||
| Decoding format | H.265/H.265+/H.264/H.264+/MPEG4 | |
| Live view / Playback resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF | |
| Synchronous playback | 16-ch | |
| Capability | 2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps) | |
| Network management | ||
| Network protocols | TCP/IP, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS | |
| Hard disk | ||
| SATA | 4 SATA interfaces for 4HDDs | |
| Capacity | Up to 8 TB capacity for each HDD | |
| eSATA | 1 eSATA interface | |
| External interface | ||
| Network interface | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface | |
| Serial interface | 1 RS-485 (half-duplex), 1 RS-232 | |
| USB interface | Front panel: 2 USB 2.0; Rear panel: 1 USB 3.0 | |
| Alarm in/out | 16/4 (16/8 optional) | |
| POE Interface | ||
| Interface | 16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces | |
| Power | ≤200W | |
| Supported standard | IEEE 802.3 af/at | |
| General | ||
| Power supply | 100 to 240 VAC | |
| Total Power | ≤ 360 W | |
| Consumption (without hard disk) | ≤ 20 W (without enabling PoE) | |
| Working temperature | -10 C to 55 C (14 F to 131 F) | |
| Working humidity | 10 to 90 % | |
| Dimensions (W D H) | 445 400 71 mm ( 17.5" 15.7" 2.8") | |
| Weight (without hard disk) | ≤ 5 kg (11 lb) | |
