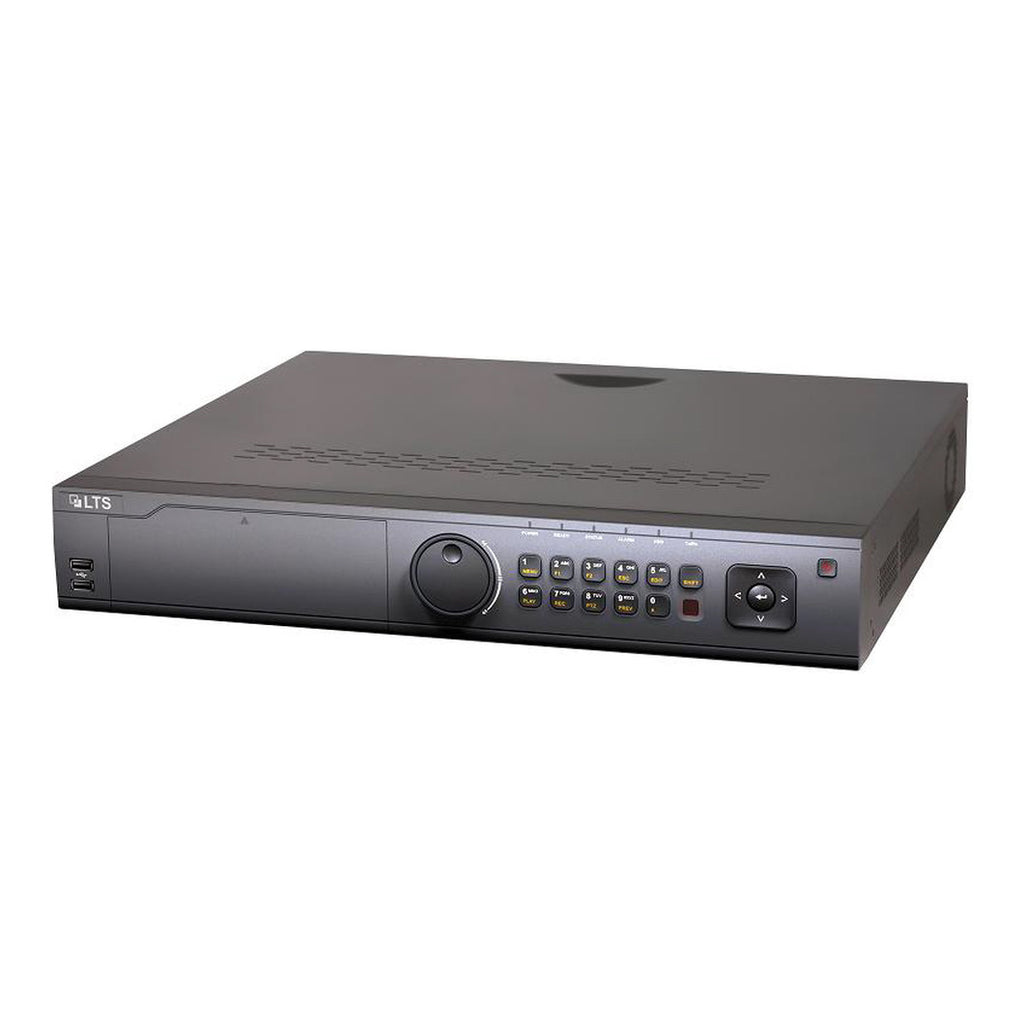

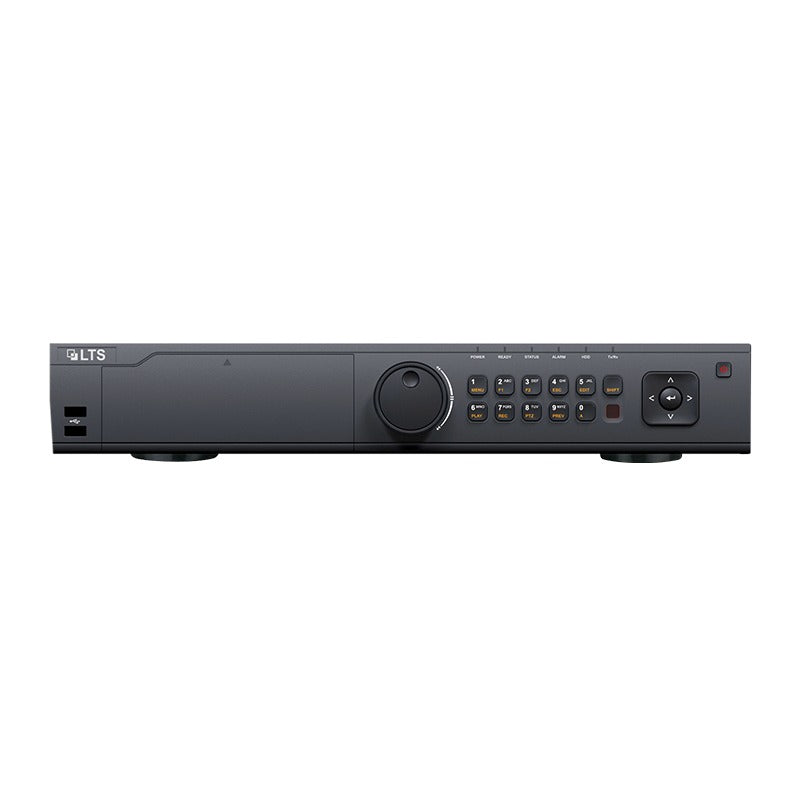

LTS LTN8932H Platinum Enterprise Level 32 Channel NVR
Sale price
$782.71
Regular price
$1,070.00
Skip to product information
LTS LTN8932H Platinum Enterprise Level 32 Channel NVR
Sale price
$782.71
Regular price
$1,070.00
Ensure the protection of your business interests and staff with this Platinum Enterprise Level 32 Channel NVR. It is a performance security device that has a latest visualized GUI design. It works on stream over TLS encryption technology that ensures highly secured stream transmission with up to maximum 128 Mbps outgoing bandwidth. It lets you manage important files and monitor the HDD health.
- New logical and visualized GUI design
- Dual-OS design to ensure high reliability of system running
- ANR technology to enhance the storage reliability when the network is disconnected
- Adopt stream over TLS encryption technology (enhanced SDK service and RTP over HTTPS protocol) which provides more secure stream transmission service (max. 128 Mbps TLS stream outgoing bandwidth)
- Up to 32-ch IP cameras can be connected (up to 12 MP)
- Connectable to the third-party network cameras
- H.265+ compression effectively reduces the storage space and costs by up to 75%
- Full channel recording at up to 12MP resolution
- HDMI and VGA independent outputs provided
- HDMI Video output at up to 4K (3840 2160) resolution
- Up to 4 SATA interfaces for HDD connection
- 16-ch synchronous playback at up to 1080p resolution
- Important files management
- HDD health monitoring
- Supports multiple VCA (Video Content Analytics) events
- Smart search for the selected area in the video; and smart playback to improve the playback efficiency
- Supports VCA search for fire/ship/temperature/temperature difference detection triggered video files
- POS information overlay on live view and playback
- POS triggered recording and alarm
- LTS-Connect for easy network management
- Gigabit Ethernet network interface
| Model | LTN8932H | |
| Recorder Series | Platinum Series | |
| Recorder Channel | 32-Channel | |
| Recorder Case | 1.5U Case | |
| Recorder Technology | IP / NVR | |
| Featured Product | No | |
| Video/Audio input | ||
| IP video input | 32-ch Up to 12 MP resolution |
|
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) | |
| Network | ||
| Incoming bandwidth | 256 Mbps | |
| Outgoing bandwidth | 256 Mbps | |
| Remote connection | 128 | |
| Video/Audio output | ||
| Recording resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 576, NTSC: 704 480 | |
| HDMI1 output resolution | 4K (3840 2160)/60Hz, 4K (3840 2160)/30Hz, 2K(25601440)/60Hz,1920 1080p/60Hz, 1600 1200/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz | |
| VGA output resolution | 2K(25601440)/60Hz,1920 1080p/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz,HDMI1/VGA Simultaneous Output | |
| HDMI2 output resolution | 1920 1080/60Hz, 1280 1024/60Hz , 1280 720/60Hz, 1024 768/60Hz | |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) | |
| Decoding | ||
| Decoding format | H.265/H.265+/H.264/H.264+/MPEG4 | |
| Live view / Playback resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Synchronous playback | 16-ch | |
| Capability | 2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps) | |
| Network management | ||
| Network protocols | TCP/IP, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS | |
| Hard disk | ||
| SATA | 4 SATA interfaces for 4HDDs | |
| Capacity | Up to 8TB capacity for each HDD | |
| eSATA | 1 eSATA interface | |
| External interface | ||
| Network interface | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces | |
| Serial interface | 1 RS-485 (half-duplex), 1 RS-232 | |
| USB interface | Front panel: 2 USB 2.0; Rear panel: 1 USB 3.0 | |
| Alarm in/out | 16/4 (16/8 optional) | |
| General | ||
| Power supply | 100 to 240 VAC | |
| Power | ≤ 80 W | |
| Consumption (without hard disk) | ≤ 20 W | |
| Working temperature | -10 C to 55 C (14 F to 131 F) | |
| Working humidity | 10 to 90 % | |
| Dimensions (WDH) | 445 400 71 mm ( 17.5" 15.7" 2.8") | |
| Weight (without hard disk) | ≤ 5 kg (11 lb) | |
