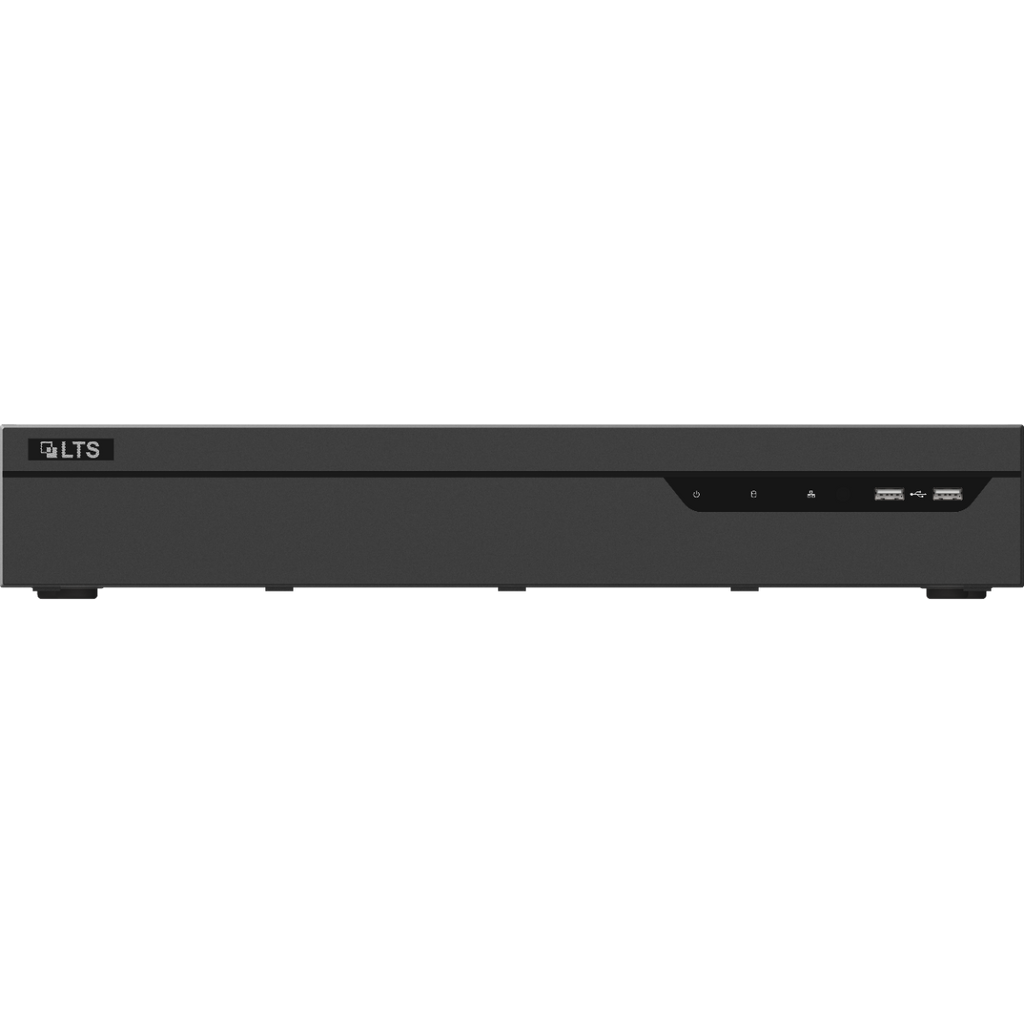

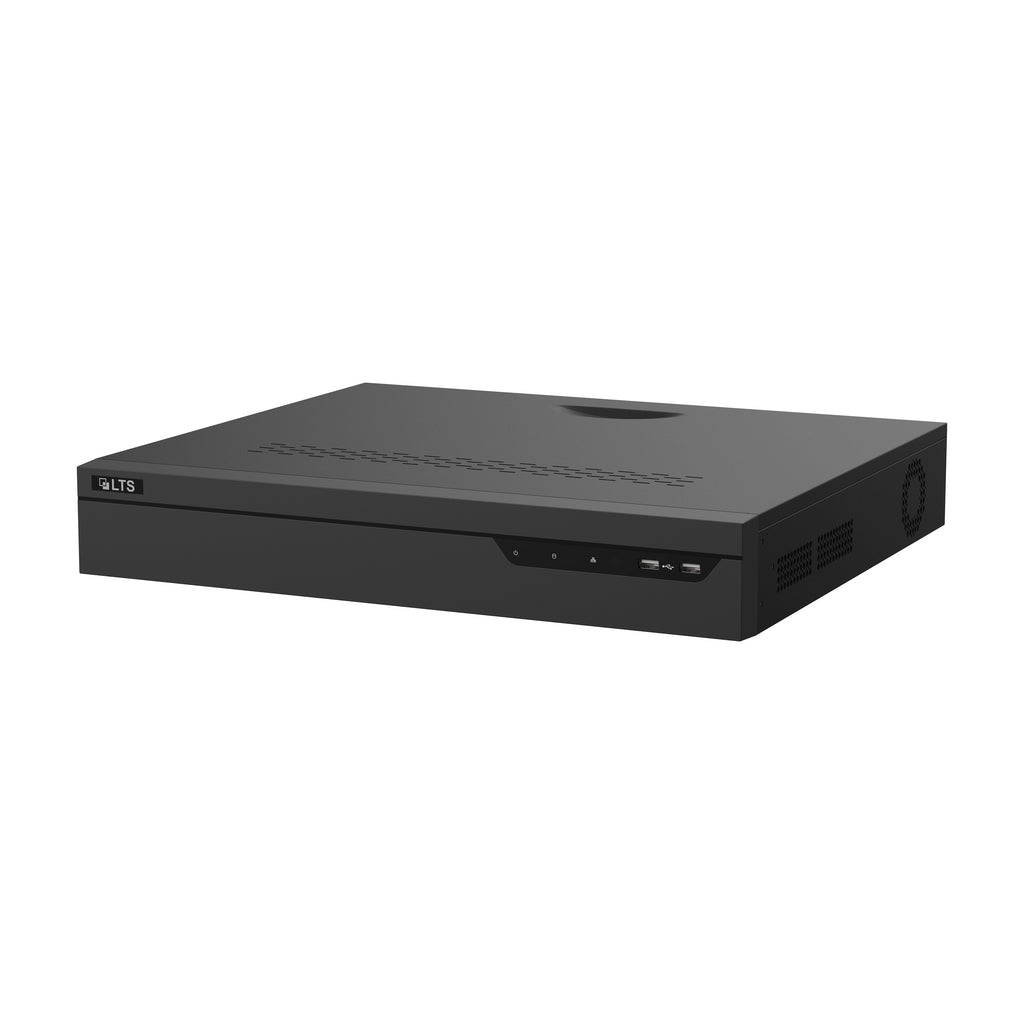

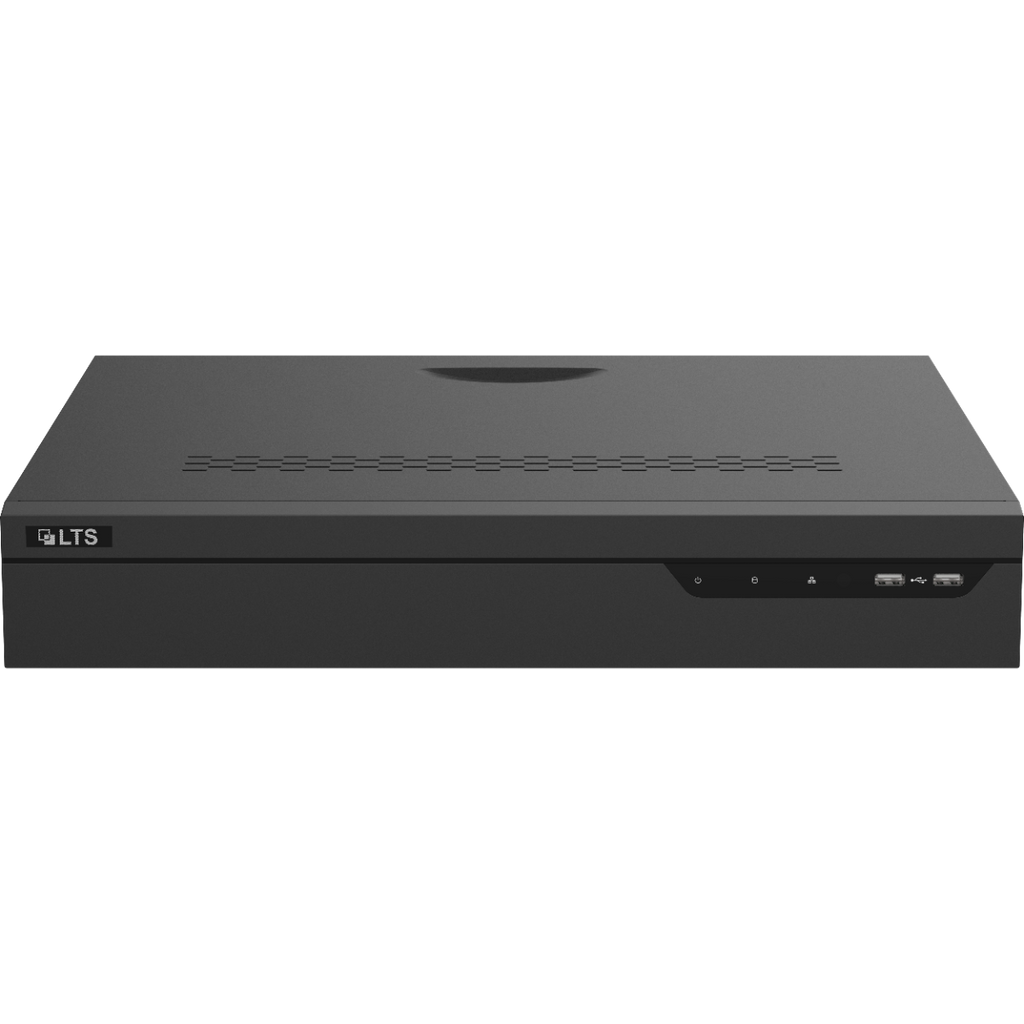

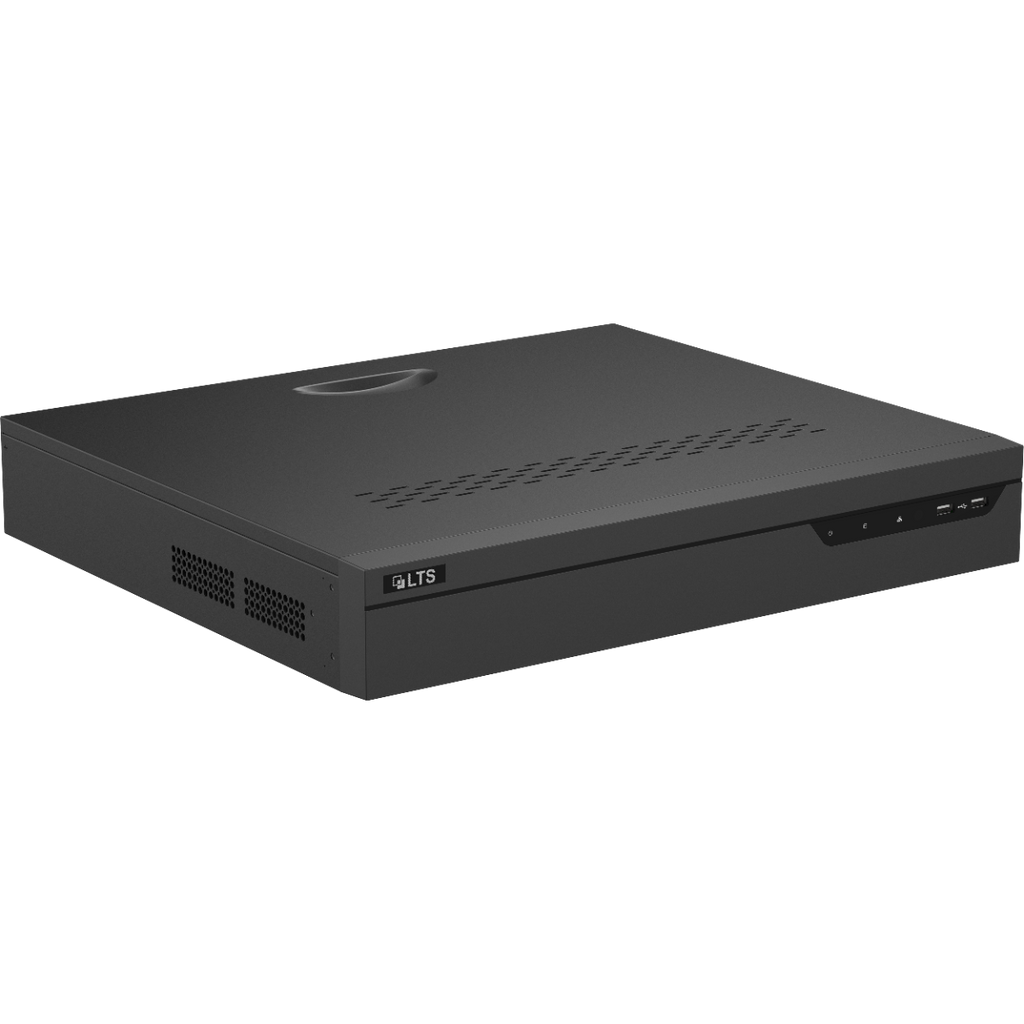

LTS LTN8932EDV-P16 32CH 16 PoE 1.5U DeepVision Network Video Recorder with MD 2.0 - Human and Vehicle Detection
Sale price
$955.90
Regular price
$1,245.00
The LTS LTN8932EDV-P16 32CH 16 PoE 1.5U DeepVision Network Video Recorder with MD 2.0 - Human and Vehicle Detection is built for larger sites that need plug & play PoE plus AI search. It supports up to 32 IP cameras with 16 built-in PoE ports, H.265/H.265+/H.264/H.264+ video formats and up to 256 Mbps incoming bandwidth, with decoding of up to 4-ch@12 MP, 6-ch@8 MP, 12-ch@4 MP or 24-ch@1080p. DeepVision, Direct Search, Motion Detection 2.0 and perimeter protection reduce false alarms and speed playback. Four SATA bays support up to 16 TB each.
Features
- Up to 32-ch DeepVision and Direct Search function
- Adopt MD2.0 technology to minimize manual effort and security costs
- Accurate perimeter protection helps detect potential intrusions while effectively reducing false alarms
- Automatic camera connection and configuration simplify installation and help reduce setup time
- Up to 4-ch@12 MP or 6-ch@8 MP or 12-ch@4 MP or 24-ch@1080p decoding capacity
- Up to 32-ch IP camera inputs, plug & play with 16 Power-over-Ethernet (PoE) interfaces
- Up to 256 Mbps incoming bandwidth
- H.265/H.265+/H.264/H.264+ video formats
- Up to 4-ch IP speakers can be connected
Specifications
| Model | LTN8932EDV-P16 |
| Recorder Series | Platinum Series |
| Recorder Channel | 32-Channel |
| Recorder Case | 1.5U Case |
| Recorder Technology | IP / NVR |
| Intelligent Analytics | |
| AI by NVR | Facial recognition, perimeter protection, motion detection 2.0, Direct Search, DeepVision |
| AI by Camera | Facial recognition, perimeter protection, motion detection 2.0, ANPR, VCA |
| Direct Search | |
| By Camera | All channels (the camera should enable Direct Search function) |
| DeepVision | |
| Performance | If the cameras support MD2.0 Technology and have enabled Direct Search function, the NVR supports DeepVision in all channels, capable of modeling 50,000 targets/day. |
| Search Language | English |
| Facial Recognition | |
| Facial Detection and Analytics | Face picture comparison, human face capture, face picture search |
| Facial Detection and Analytics Performance | Up to 4 MP: 2-ch; 8 MP to 5 MP: 1-ch |
| Face Picture Comparison | 8-ch |
| Face Picture Library | Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 800 MB) |
| Motion Detection 2.0 | |
| By NVR | All channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm |
| By Camera | All channels |
| Perimeter Protection | |
| By NVR | Video analysis (HD network camera, H.264/H.265) for human and vehicle recognition to reduce false alarm. Up to 4 MP: 2-ch; 8 MP to 5 MP: 1-ch |
| By Camera | All channels |
| Video and Audio | |
| IP Video Input | 32-ch |
| IP Speaker Input | 4-ch |
| Incoming Bandwidth | 256 Mbps |
| Outgoing Bandwidth | 100 Mbps |
| Video Output Mode | HDMI/VGA independent output |
| HDMI Output | 1-ch, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz |
| VGA Output | 1-ch, 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding | |
| Decoding Format | H.265/H.265+/H.264/H.264+ |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous playback | 16-ch |
| Decoding Capability | AI on: 12-ch@1080p (30 fps) AI off: 24-ch@1080p (30 fps) |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Network | |
| Remote Connection | 128 |
| API | ONVIF (profile S/G); SDK; ISAPI |
| Compatible Browser | IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, IP Portal, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE | |
| Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 200 W |
| Standard | IEEE 802.3af/at |
| Auxiliary Interface | |
| SATA | 4 SATA interfaces |
| Capacity | Up to 16 TB capacity for each HDD |
| Serial Interface | 2 RS-485 (half-duplex), 1 RS-232 |
| USB Interface | Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0 |
| Alarm In/Out | 16/4 |
| General | |
| GUI Language | English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz, Brazilian Portuguese, Indonesian |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 50 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W x D x H) | 440 mm x 391 mm x 72 mm (17.32" x 15.39" x 2.81") |
| Weight | ≤ 11 lb (without HDD, 5 kg.) |
| Certification | |
| Obtained Certification | See manufacturer datasheet |
