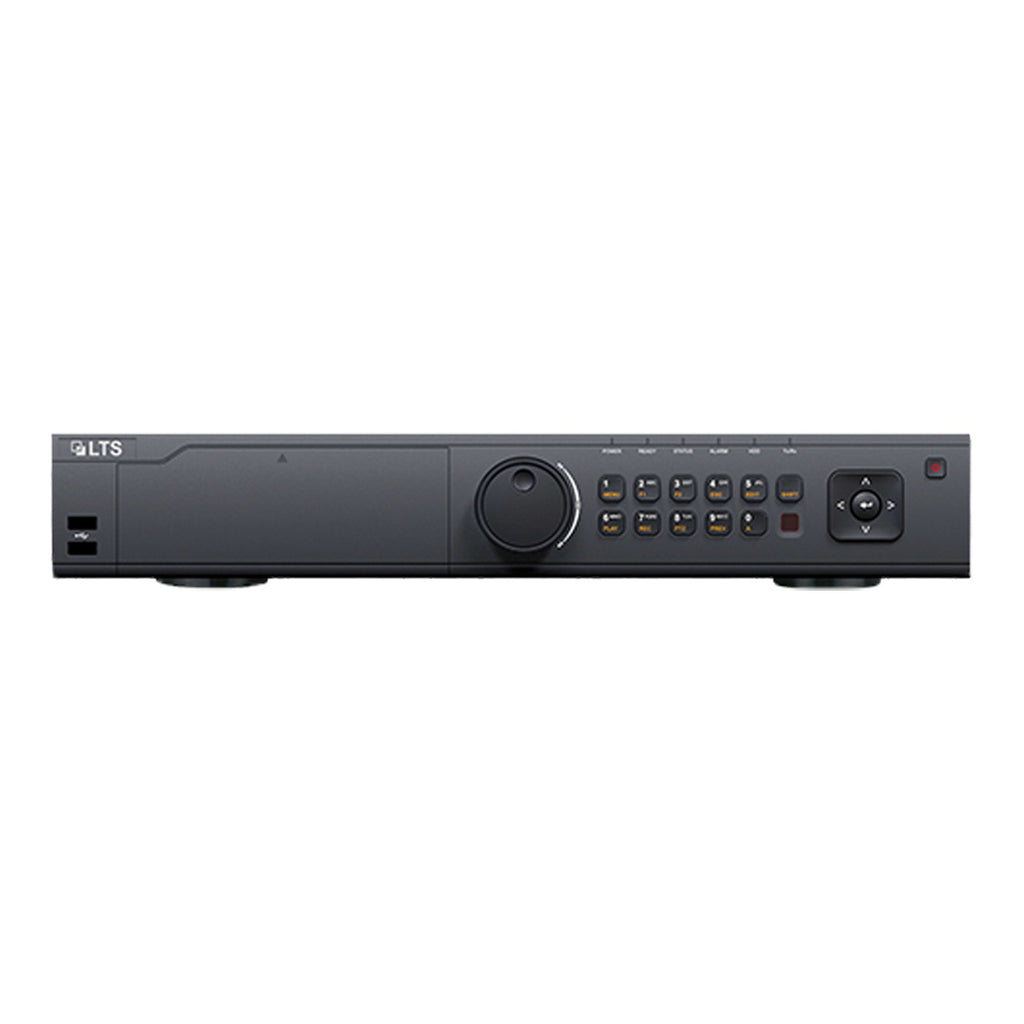

LTS LTN8932 Platinum Enterprise Level 32 Channel 4K Ultra HD Display NVR 1.5U
Sale price
$782.71
Regular price
$1,070.00
LTS brings forth the Platinum Enterprise Level Network Video Recording device that is capable to connect with up to 32 IP cameras. Offering the HDMI video output of up to 4K along with 4 SATA up to 8TB, this device is an apt choice to support HDD quota and group modes. It is engineered to harmonize well with live view, storage, playback up to 12MP.
- Connect up to 32 IP Cameras
- Support Live View, Storage, Playback up to 12MP (3072x2048)
- HDMI Video Output up to 4K
- 4 SATA up to 8TB
- Supports HDD Quota and Group Modes
| Model | LTN8932 | |
| Recorder Series | Platinum Series | |
| Recorder Channel | 32-Channel | |
| Recorder Case | 1.5U Case | |
| Recorder Technology | IP / NVR | |
| Featured Product | No | |
| Video/Audio Input | ||
| IP Video Input | 32-CH, Up to 12MP Resolution | |
| Two-Way Audio Input | 1-CH, RCA (2.0 Vp-p, 1kΩ) | |
| Network | ||
| Incoming Bandwidth | 256Mbps | |
| Outgoing Bandwidth | 256Mbps | |
| Remote Connection | 128 | |
| Video/Audio Output | ||
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| HDMI Output | 4K (3840 2160)/60Hz, 4K (3840 2160)/30Hz, 1920 1080p/60Hz, 1600 1200/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz | |
| VGA Output | 1-ch, resolution: 1920 1080p/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz | |
| Audio Output | 1-CH, RCA (Linear, 1kΩ) | |
| Decoding | ||
| Live View/ Playback Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Synchronous Playback | 16-CH | |
| Capability | 4-ch @ 4K, or 16-ch @1080p | |
| Hard Disk | ||
| SATA | 4 SATA interfaces for 4 HDDs | |
| Capacity | Up to 8TB for Each Disk | |

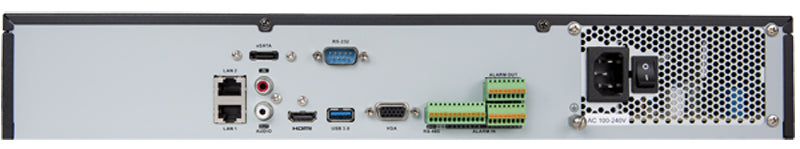

| External Interface | ||
| Network Interface | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet Interfaces | |
| Serial Interface | 1 RS-485 (Half-Duplex), 1 RS-232 | |
| USB Interface | Front Panel: 2USB 2.0; Rear Panel: 1USB 3.0 | |
| Alarm In/Out | 16/4 | |
| General | ||
| Power Supply | 100~240V AC | |
| Consumption | ≤20W | |
| Working Temperature | +14F ~ +131 F(-10C ~ +55C) | |
| Working Humidity | 10% - 90% | |
| Casing | 19-Inch Rack-Mounted 1.5U Casing | |
| Dimension | 17.5" 15.3" 2.8"(445 390 70 mm) | |
| Weight | ≤11lb (5Kg) | |
