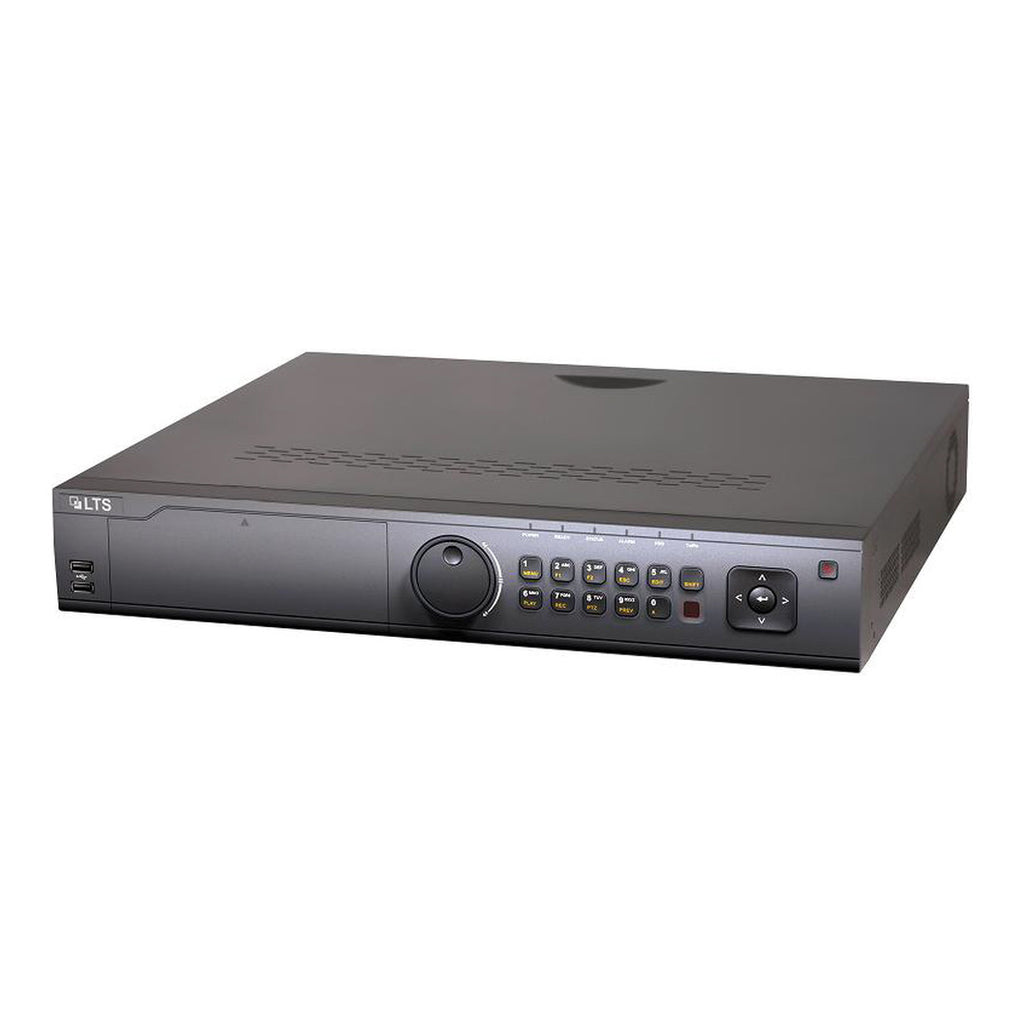

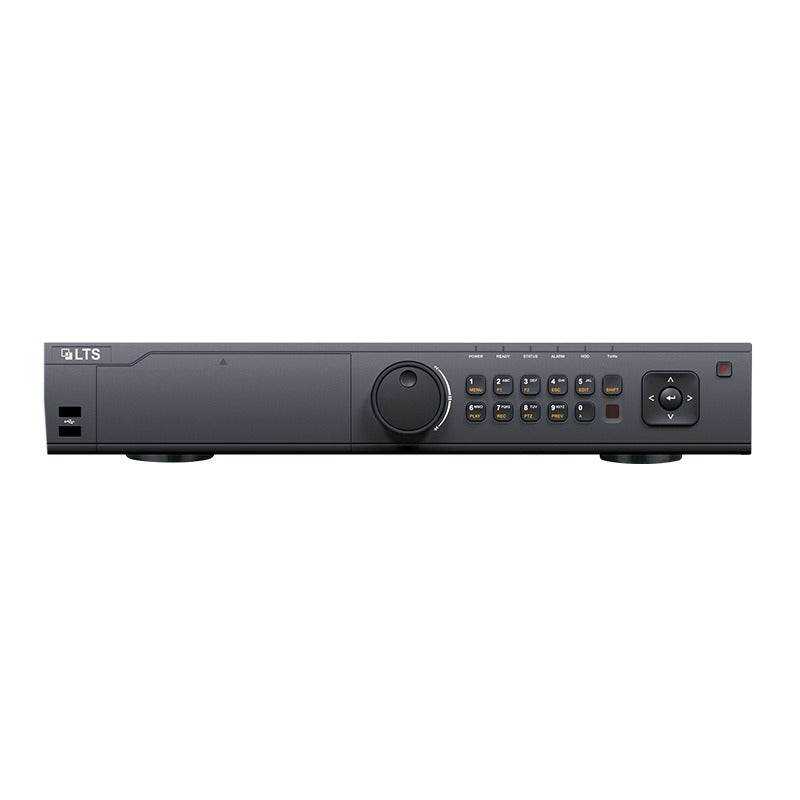

LTS LTN8916H Platinum Enterprise Level 16 Channel NVR
Sale price
$605.06
Regular price
$830.00
Skip to product information
LTS LTN8916H Platinum Enterprise Level 16 Channel NVR
Sale price
$605.06
Regular price
$830.00
The Platinum Enterprise Level 16 Channel NVR is an ideal choice for those who want to upgrade their surveillance system. It works with IP as well as third-party cameras that deliver you impressive VGA and HDMI outputs and 16-channel synchronous playback. With H.265+ video compression, it effectively reduces the storage needs up to 75%. It allows HDD health monitoring and important file management.
- New logical and visualized GUI design
- Dual-OS design to ensure high reliability of system running
- ANR technology to enhance the storage reliability when the network is disconnected
- Adopt stream over TLS encryption technology (enhanced SDK service and RTP over HTTPS protocol) which provides more secure stream transmission service (max. 128 Mbps TLS stream outgoing bandwidth)
- Up to 32-ch IP cameras can be connected (up to 12 MP)
- Connectable to the third-party network cameras
- H.265+ compression effectively reduces the storage space and costs by up to 75%
- Full channel recording at up to 12MP resolution
- HDMI and VGA independent outputs provided
- HDMI Video output at up to 4K (3840 2160) resolution
- Up to 4 SATA interfaces for HDD connection
- 16-ch synchronous playback at up to 1080p resolution
- Important files management
- HDD health monitoring
- Supports multiple VCA (Video Content Analytics) events
- Smart search for the selected area in the video; and smart playback to improve the playback efficiency
- Supports VCA search for fire/ship/temperature/temperature difference detection triggered video files
- POS information overlay on live view and playback
- POS triggered recording and alarm
- LTS-Connect for easy network management
- Gigabit Ethernet network interface
| Model | LTN8916H | |
| Recorder Series | Platinum Series | |
| Recorder Channel | 16-Channel | |
| Recorder Case | 1.5U Case | |
| Recorder Technology | IP / NVR | |
| Featured Product | No | |
| Video/Audio input | ||
| IP video input | 16-ch Up to 12 MP resolution |
|
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) | |
| Network | ||
| Incoming bandwidth | 160 Mbps | |
| Outgoing bandwidth | 256 Mbps | |
| Remote connection | 128 | |
| Video/Audio output | ||
| Recording resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 576, NTSC: 704 480 | |
| HDMI1 output resolution | 4K (3840 2160)/60Hz, 4K (3840 2160)/30Hz, 2K(25601440)/60Hz,1920 1080p/60Hz, 1600 1200/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz | |
| VGA output resolution | 2K(25601440)/60Hz,1920 1080p/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz,HDMI1/VGA Simultaneous Output | |
| HDMI2 output resolution | 1920 1080/60Hz, 1280 1024/60Hz , 1280 720/60Hz, 1024 768/60Hz | |
| Audio output | 1-ch, RCA (Linear, 1 KO) | |
| Decoding | ||
| Decoding format | H.265/H.265+/H.264/H.264+/MPEG4 | |
| Live view / Playback resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Synchronous playback | 16-ch | |
| Capability | 2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps) | |
| Network management | ||
| Network protocols | TCP/IP, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS | |
| Hard disk | ||
| SATA | 4 SATA interfaces for 4HDDs | |
| Capacity | Up to 8TB capacity for each HDD | |
| eSATA | 1 eSATA interface | |
| External interface | ||
| Network interface | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces | |
| Serial interface | 1 RS-485 (half-duplex), 1 RS-232 | |
| USB interface | Front panel: 2 USB 2.0; Rear panel: 1 USB 3.0 | |
| Alarm in/out | 16/4 (16/8 optional) | |
| General | ||
| Power supply | 100 to 240 VAC | |
| Power | ≤ 80 W | |
| Consumption (without hard disk) | ≤ 20 W | |
| Working temperature | -10 C to 55 C (14 F to 131 F) | |
| Working humidity | 10 to 90 % | |
| Dimensions (WDH) | 445 400 71 mm ( 17.5" 15.7" 2.8") | |
| Weight (without hard disk) | ≤ 5 kg (11 lb) | |
