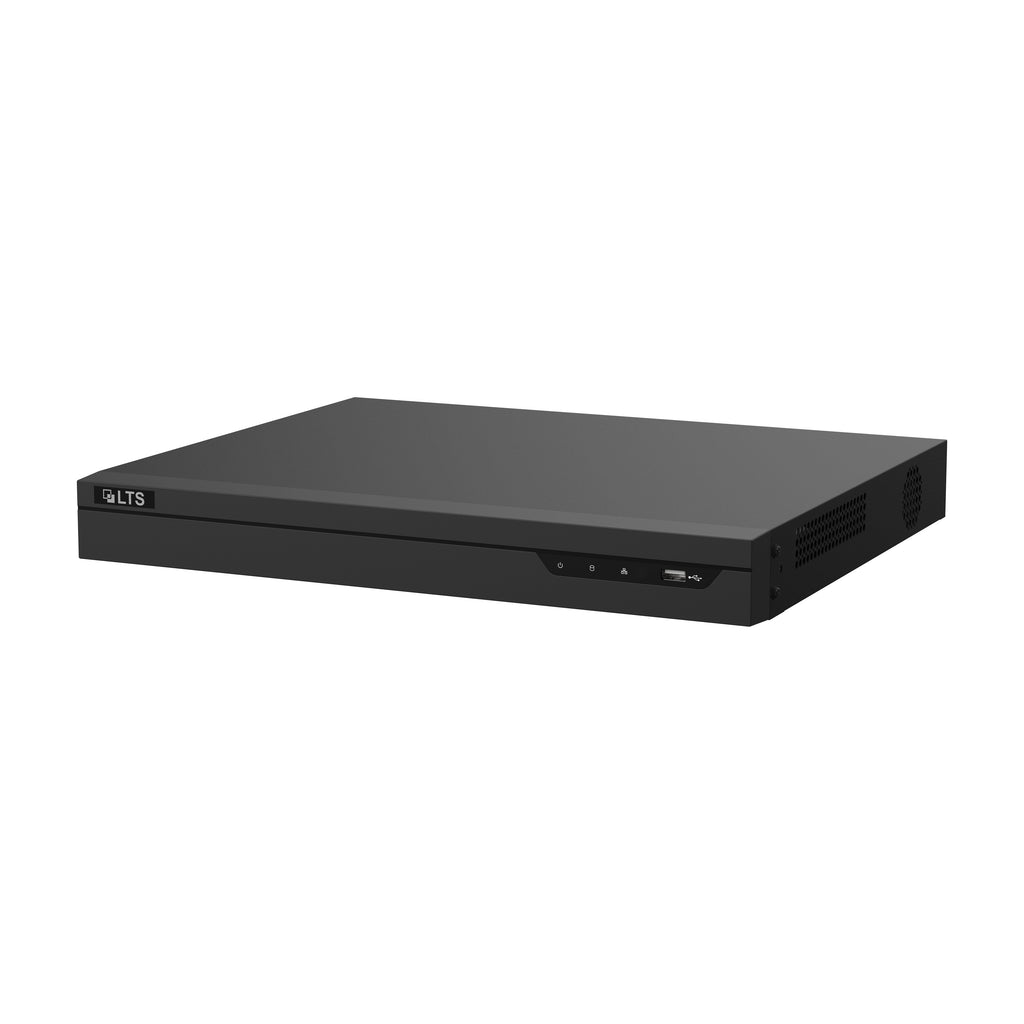

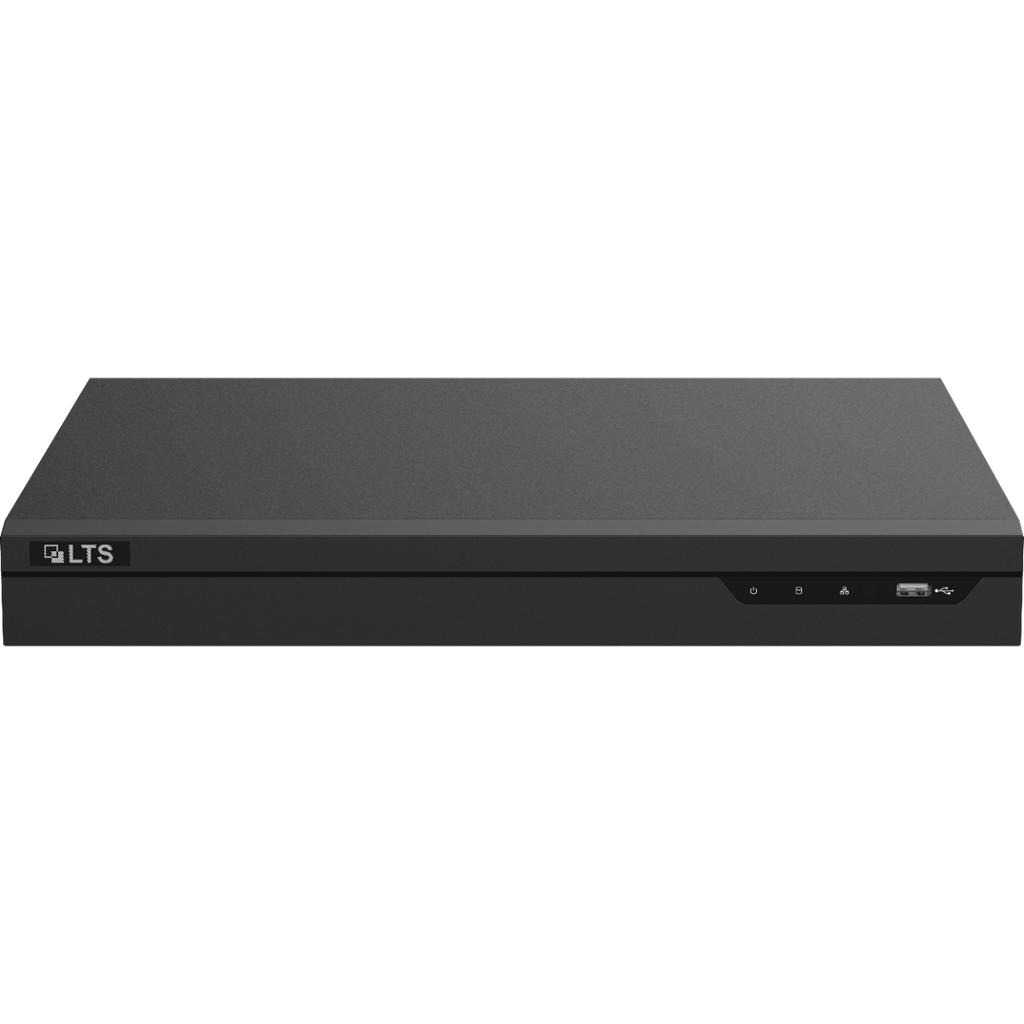

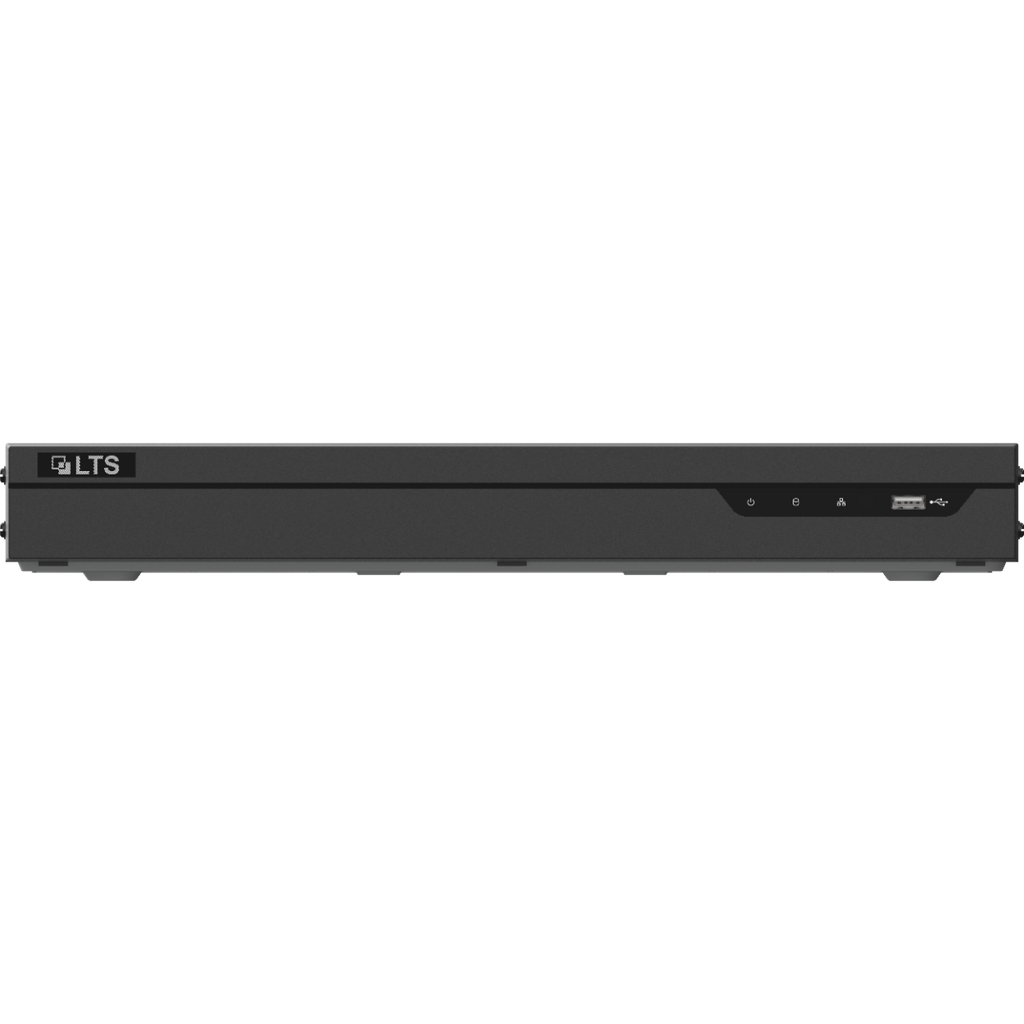

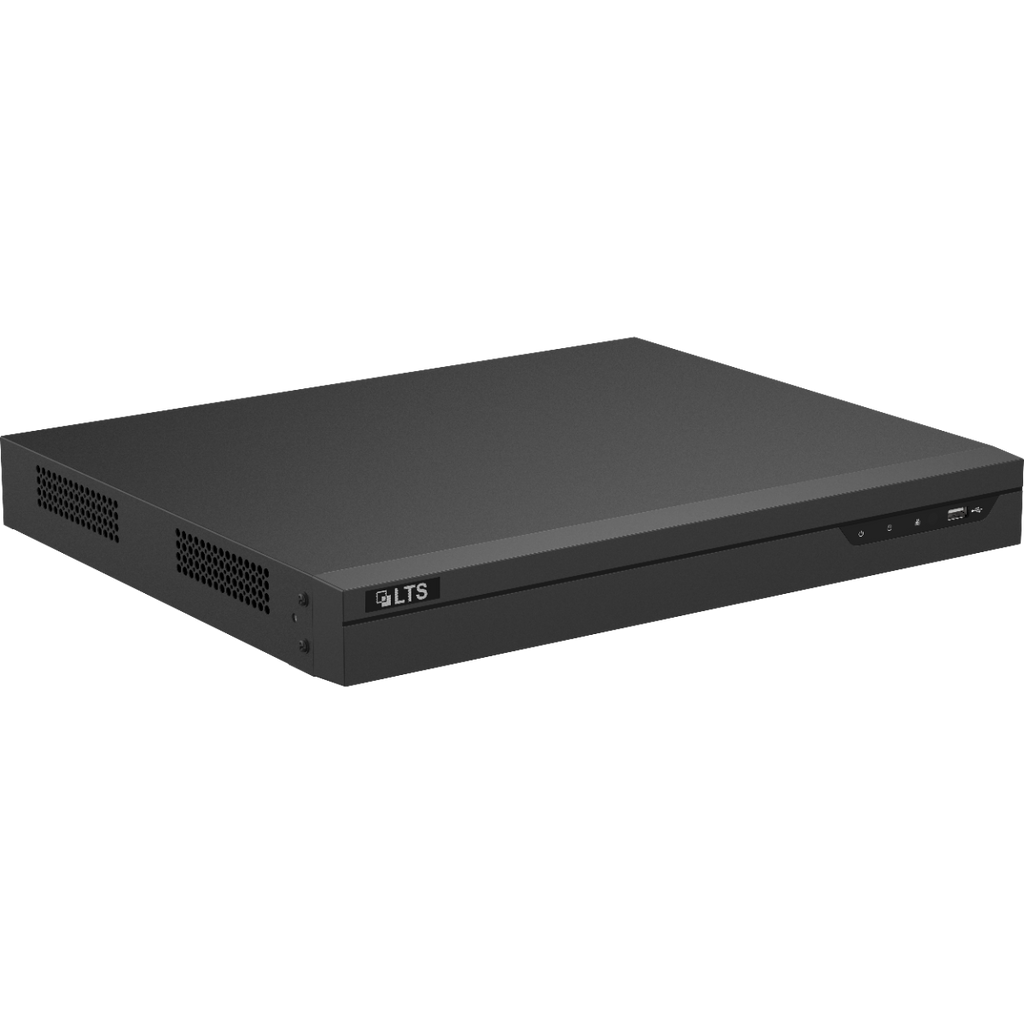

LTS Platinum DeepVision 8-Channel AI NVR with 8 PoE, 1U (LTN8708DV-P8)
Sale price
$618.33
Regular price
$805.00
Skip to product information
LTS Platinum DeepVision 8-Channel AI NVR with 8 PoE, 1U (LTN8708DV-P8)
Sale price
$618.33
Regular price
$805.00
The LTS LTN8708DV-P8 8CH PoE 1U DeepVision Network Video Recorder with MD 2.0 - Human and Vehicle Detection delivers smart, plug & play surveillance for compact installations. It supports up to 8 IP cameras with 8 built-in PoE ports, H.265+/H.265/H.264+/H.264 video formats and up to 80 Mbps incoming bandwidth, with decoding of up to 3-ch@12 MP or 6-ch@8 MP. DeepVision and Direct Search speed investigation across channels, while Motion Detection 2.0 and perimeter protection classify humans and vehicles to reduce false alarms. Automatic camera connection and configuration keep setup simple. Two SATA bays support up to 16 TB each.
Features
- Up to 8-ch DeepVision and Direct Search function
- Adopt MD2.0 technology to minimize manual effort and security costs
- Accurate perimeter protection effectively reduces false alarms
- Automatic cameras connection and configuration
- Up to 8-ch IP camera inputs, plug & play with 8 Power-over-Ethernet (PoE) interfaces
- Up to 3-ch@12 MP or 6-ch@8 MP decoding capacity
- H.265+/H.265/H.264+/H.264 video formats
- Up to 80 Mbps incoming bandwidth
Specifications
| Model | LTN8708DV-P8 |
| Recorder Series | Platinum Series |
| Recorder Channel | 8-Channel |
| Recorder Case | 1U Case |
| Recorder Technology | IP / NVR |
| Intelligent Analytics | |
| AI by NVR | Facial recognition, perimeter protection, motion detection 2.0, Direct Search, DeepVision |
| AI by NVR and Camera | Facial recognition, perimeter protection, motion detection 2.0, ANPR, VCA |
| Direct Search | |
| By Camera | All channels (the camera should enable Direct Search function) |
| DeepVision | |
| Performance | If the cameras support MD2.0 Technology and have enabled Direct Search function, the NVR supports DeepVision in all channels, capable of modeling 50,000 targets/day. |
| Search Language | English |
| Facial Recognition | |
| Facial Detection and Analytics | Face picture comparison, human face capture, face picture search |
| Facial Detection and Analytics Performance | Up to 4 MP: 2-ch; 5 MP to 8 MP: 1-ch |
| Face Picture Comparison | 8-ch |
| Face Picture Library | Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 800 MB) |
| Motion Detection 2.0 | |
| By NVR | All channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm |
| By Camera | All channels |
| Perimeter Protection | |
| By NVR | Video analysis (HD network camera, H.264/H.265) for human and vehicle recognition to reduce false alarm. Up to 4 MP: 2-ch; 5 MP to 8 MP: 1-ch |
| By Camera | All channels |
| Video and Audio | |
| IP Video Input | 8-ch |
| IP Speaker Input | 4-ch |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Video Output Mode | HDMI/VGA independent output |
| HDMI Output | 1-ch, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz |
| VGA Output | 1-ch, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding | |
| Decoding Format | H.265/H.265+/H.264/H.264+ |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous playback | 8-ch |
| Decoding Capability | AI on: 6-ch@4 MP AI off: 6-ch@8 MP |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Network | |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, IP Portal, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE | |
| Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 80 W |
| Standard | IEEE 802.3af/at |
| Auxiliary Interface | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 16 TB capacity for each HDD |
| USB Interface | Front panel: 1 x USB 2.0; Rear panel: 1 x USB 2.0 |
| Alarm In/Out | 4/1 |
| General | |
| GUI Language | English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Hebrew, Ukrainian, Indonesian |
| Power Supply | 48 VDC, 2.5 A |
| Consumption | ≤ 15 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W x D x H) | 384 mm x 317 mm x 52 mm (15.12" x 12.48" x 2.03") |
| Weight | ≤ 4.0 lb (without HDD, 3 kg.) |
| Certification | |
| CE | EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
| Obtained Certification | CE, CB, REACH, WEEE, UKCA, RCM, IC |
