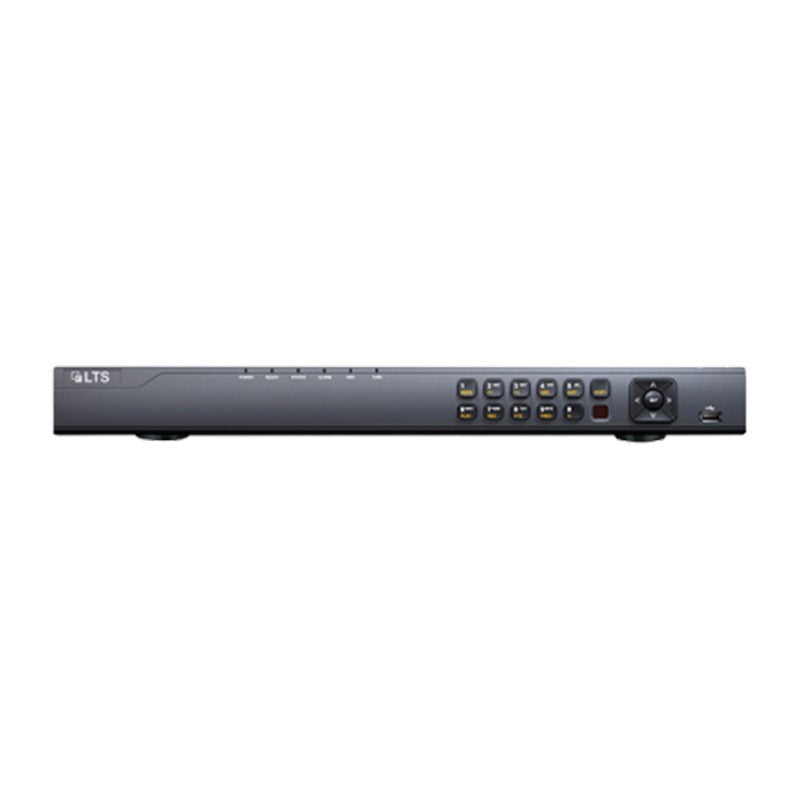

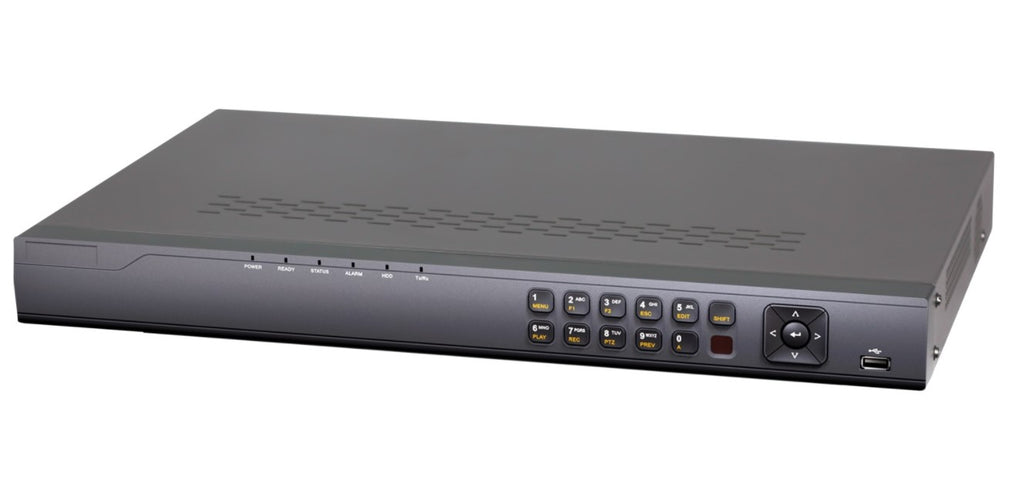

LTS LTN8616-P16 Platinum Professional Plus Level 16 Channel 4K NVR 1U
Sale price
$960.36
Regular price
$1,315.00
Skip to product information
LTS LTN8616-P16 Platinum Professional Plus Level 16 Channel 4K NVR 1U
Sale price
$960.36
Regular price
$1,315.00
LTS LTN8616-P16 Platinum Professional Plus Level 16 Channel 4K NVR 1U comes with a supportive live view, playback and storage up to 12.3 MP IP cameras. It has a 160 Built-in Poe and 4K (3840x2160) HDMI, VGA, Video Output and CVBS. It can support 2 SATA up to 12TB HDD and is intelligently designed with a sturdy finish. The device serves its purpose well and is durable.
- Quad-core 16 Channel Network Video Recorder
- Support Live View, Storage, and Playback up to 12.3MP IP Camera
- 160MB Input Bandwidth
- 16 Built-in PoE
- 4K (3840x2160) HDMI, VGA, CVBS Video Output
- 2 SATA up to 12TB HDD
- 4 POS via TCP/IP
- Support 6MP/12MP Fisheye
- Support H.264/H.264 Zip+, H.265 Ready
| Model | LTN8616-P16 | |
| Recorder Series | Platinum Series | |
| Recorder Channel | 16-Channel | |
| Recorder Case | 1U Case | |
| Recorder Technology | IP / NVR | |
| Featured Product | No | |
| Video/Audio | ||
| Input | ||
| IP Video Input | 16-CH, Up to 12MP Resolution | |
| Two-Way Audio Input | 1-CH, RCA (2.0 Vp-p, 1k?) | |
| Network | ||
| Incoming Bandwidth | 160Mbps | |
| Outgoing Bandwidth | 256Mbps | |
| Remote Connection | 128 | |
| Video/Audio | ||
| Output | ||
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
| HDMI Output | 4K (3840 2160)/60Hz, 4K (3840 2160)/30Hz, 1920 1080p/60Hz, 1600 1200/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz |
|
| VGA Output | 1-ch, resolution: 1920 1080p/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz |
|
| CVBS Output | 1-ch | |
| Audio Output | 1-CH, RCA (Linear, 1k?) | |
| Decoding | ||
| Live View/ Playback Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
| Synchronous Playback | 16-CH | |
| Capability | 4-ch @ 4K, or 16-ch @1080p | |
| Hard | ||
| Disk | ||
| SATA | 2 SATA Interfaces for 2 HDDs | |
| Capacity | Up to 8TB for Each Disk | |
| External Interface | ||
| Network Interface | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces | |
| USB Interface | Front panel: 2 USB 2.0; Rear panel: 1 USB 3.0 | |
| Alarm In/Out | 4/1 | |
| PoE | ||
| Interface | 16 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface | |
| Max. Power | ?200W | |
| Supported Standard | IEEE 802.3 af/at | |
| General | ||
| Power Supply | 100~240V AC | |
| Consumption | ?15W | |
| Working Temperature | +14F ~ +131 F(-10C ~ +55C) | |
| Working Humidity | 10% - 90% | |
| Casing | 19-Inch Rack-Mounted 1U Casing | |
| Dimension | 17.5" 11.4" 1.8"(445 290 45 mm) | |
| Weight | ?8.8lb (4Kg) | |
