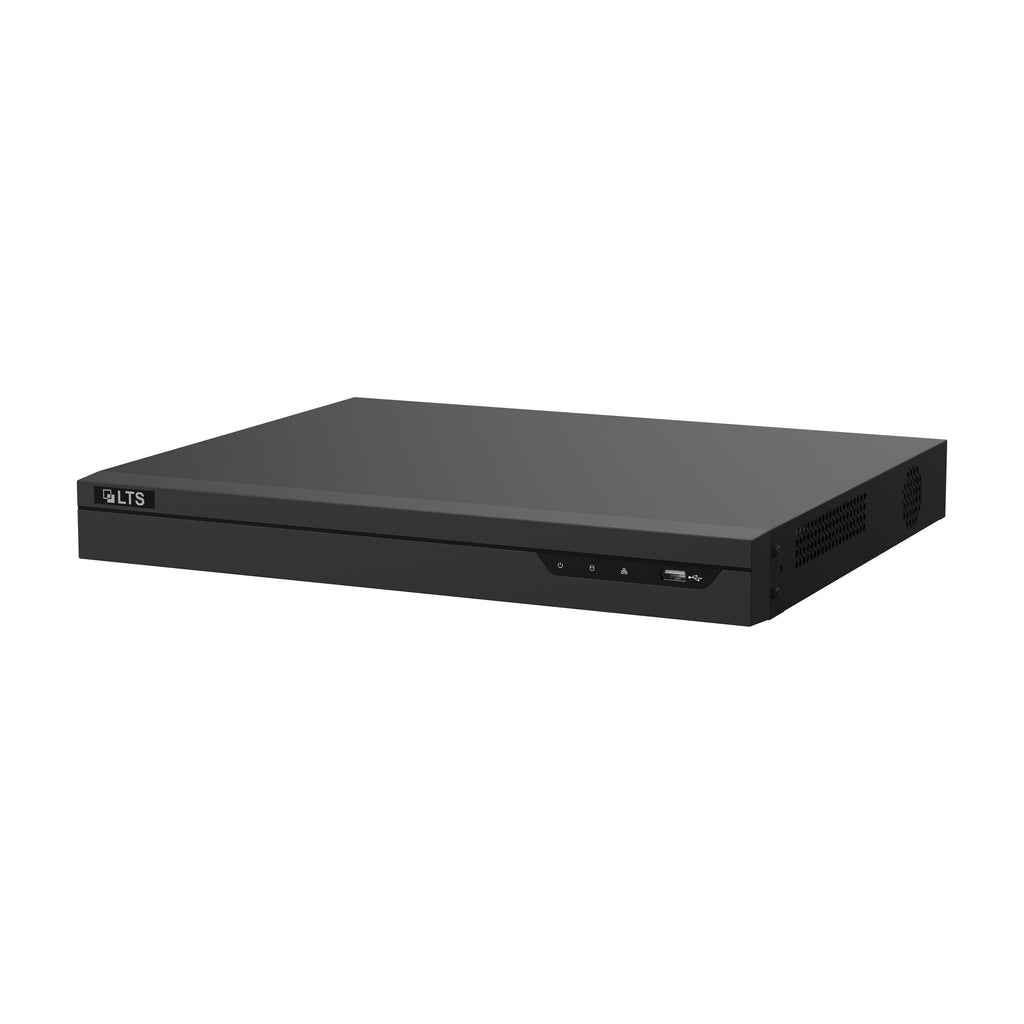

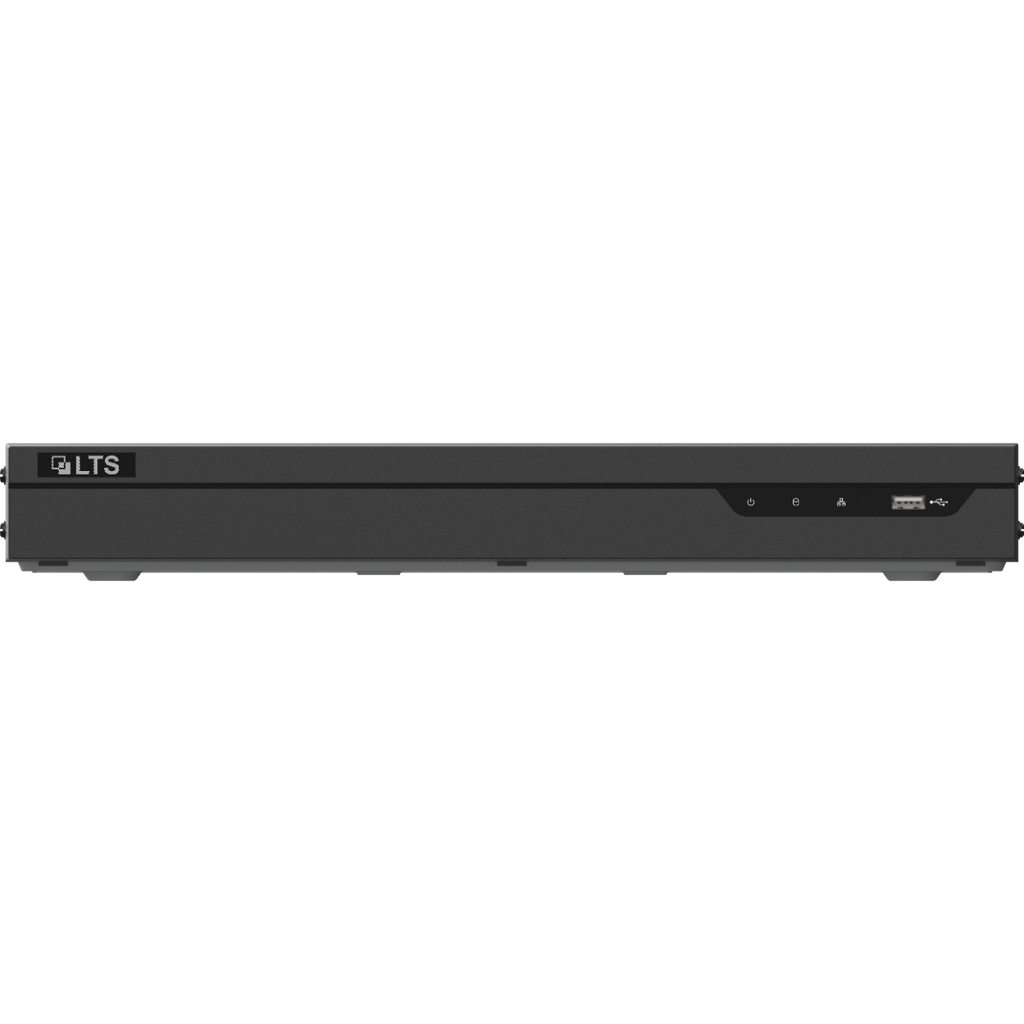

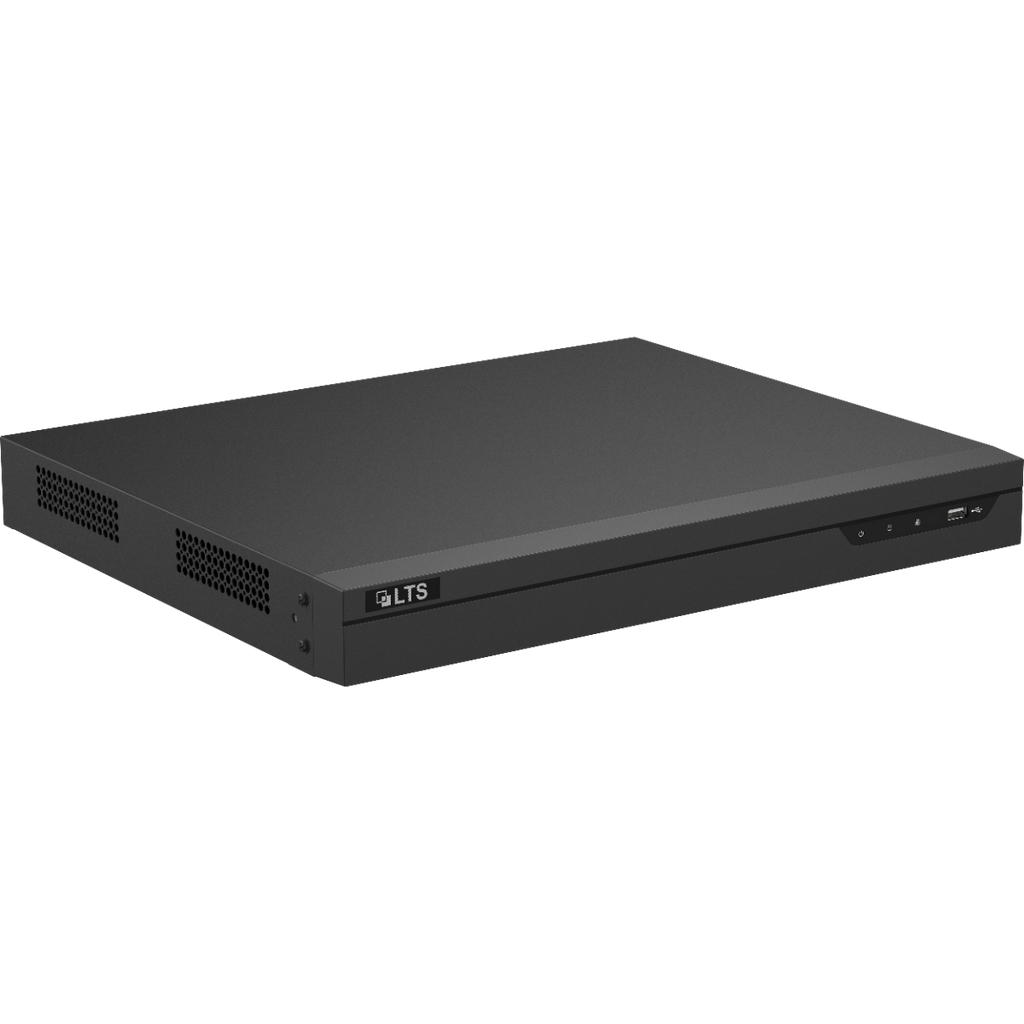

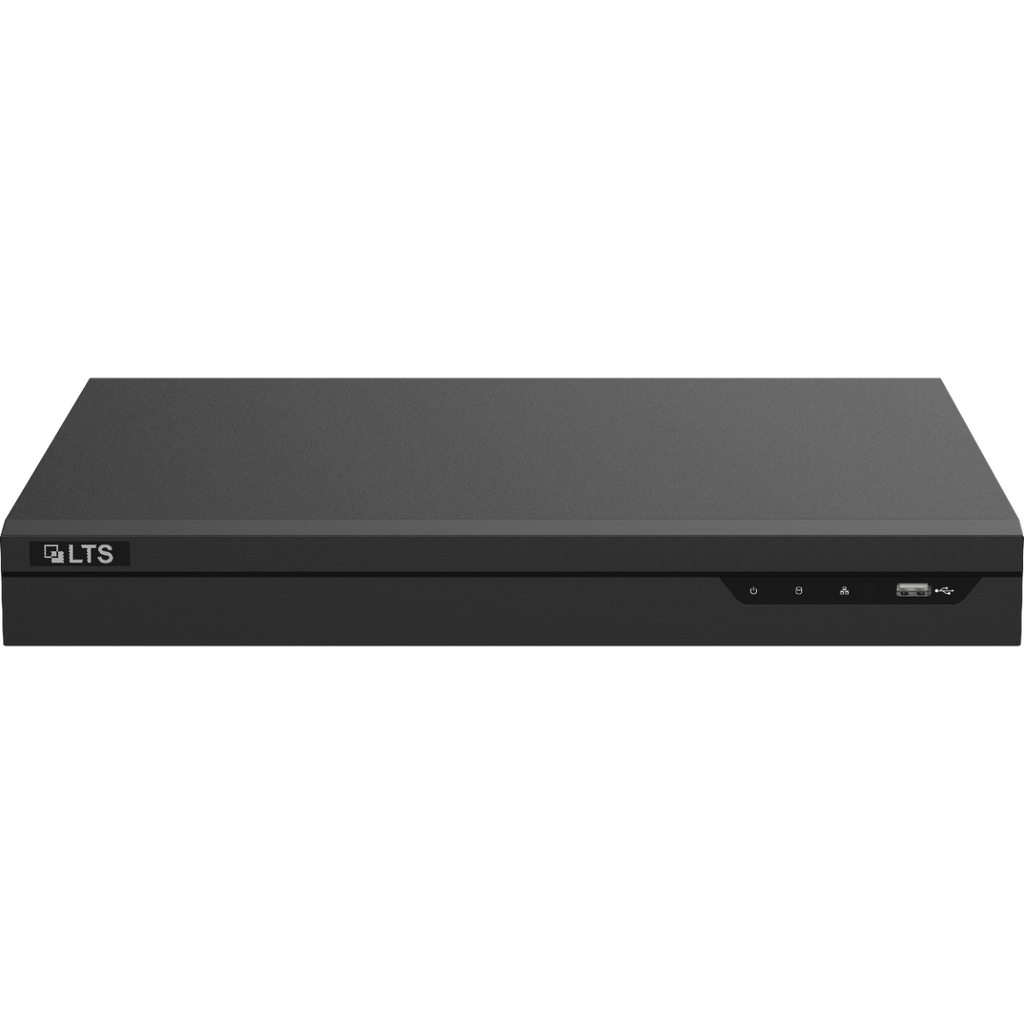

LTS LTN6016D-P16 16CH PoE 1U Network Video Recorder with MD 2.0 - Human and Vehicle Detection
Sale price
$504.90
Regular price
$655.00
Skip to product information
LTS LTN6016D-P16 16CH PoE 1U Network Video Recorder with MD 2.0 - Human and Vehicle Detection
Sale price
$504.90
Regular price
$655.00
The LTS LTN6016D-P16 16CH PoE 1U Network Video Recorder with MD 2.0 - Human and Vehicle Detection delivers smart, reliable surveillance for growing installations. It supports up to 16 IP cameras with 16 built-in PoE ports for true plug & play setup, H.265+/H.265/H.264+/H.264 video formats and up to 160 Mbps incoming bandwidth, with decoding of up to 3-ch@12 MP, 5-ch@8 MP or 10-ch@4 MP. Motion Detection 2.0 and perimeter protection classify humans and vehicles to reduce false alarms, while Direct Search speeds up playback and automatic camera connection and configuration keeps installation simple. Two SATA bays support up to 16 TB each.
Features
- Up to 16-ch IP camera inputs, plug & play with 16 Power-over-Ethernet (PoE) interfaces
- Up to 160 Mbps incoming bandwidth
- Up to 3-ch@12 MP or 5-ch@8 MP or 10-ch@4 MP decoding capacity
- Adopt MD2.0 technology to minimize manual effort and security costs
- Efficient playback with Direct Search technology
- Accurate perimeter protection effectively reduces false alarms
- Automatic cameras connection and configuration
- H.265+/H.265/H.264+/H.264 video formats
Specifications
| Model | LTN6016D-P16 |
| Recorder Series | Platinum Series |
| Recorder Channel | 16-Channel |
| Recorder Case | 1U Case |
| Recorder Technology | IP / NVR |
| Intelligent Analytics | |
| AI by NVR | Facial recognition, perimeter protection, motion detection 2.0, Direct Search |
| AI by Camera | Facial recognition, perimeter protection, motion detection 2.0, ANPR |
| Facial Recognition | |
| Facial Detection and Analytics | Face picture comparison, human face capture, face picture search |
| Facial Detection and Analytics Performance | Up to 4 MP: 2-ch; 8 MP to 5 MP: 1-ch |
| Face Picture Comparison | 8-ch |
| Face Picture Library | Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 1 GB) |
| Direct Search | |
| By Camera | All channels (the camera should enable Direct Search function) |
| Motion Detection 2.0 | |
| By NVR | All channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm |
| By Camera | All channels |
| Perimeter Protection | |
| By NVR | Video analysis (HD network camera, H.264/H.265) for human and vehicle recognition to reduce false alarm. Up to 4 MP: 2-ch; 5 MP to 8 MP: 1-ch |
| By Camera | All channels |
| Video and Audio | |
| IP Video Input | 16-ch |
| IP Speaker Input | 4-ch |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Video Output Mode | HDMI/VGA independent output |
| HDMI Output | 1-ch, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz |
| VGA Output | 1-ch, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding | |
| Decoding Format | H.265/H.265+/H.264/H.264+ |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous playback | 16-ch |
| Decoding Capability | AI on: 8-ch@4 MP AI off: 10-ch@4 MP |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Network | |
| Remote Connection | 128 |
| API | ONVIF (profile S/G); SDK; ISAPI |
| Compatible Browser | IE 11, Chrome 91, Firefox 88, Safari 12, Edge 91, or above version |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, IP Portal, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP", HTTP, HTTPS |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE | |
| Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 200 W |
| Standard | IEEE 802.3af/at |
| Auxiliary Interface | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 16 TB capacity for each HDD |
| USB Interface | Front panel: 1 x USB 2.0; Rear panel: 1 x USB 2.0 |
| Alarm In/Out | 4/1 |
| General | |
| GUI Language | English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Hebrew, Ukrainian, Indonesian |
| Fan | Supports |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 15 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W x D x H) | 384 mm x 317 mm x 52 mm (15.12" x 12.48" x 2.03") |
| Weight | ≤ 3 kg (without HDD, 6 lb.) |
| Certification | |
| CE | EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
| Obtained Certification | CE, CB, REACH, WEEE, UKCA, RCM, IC |
