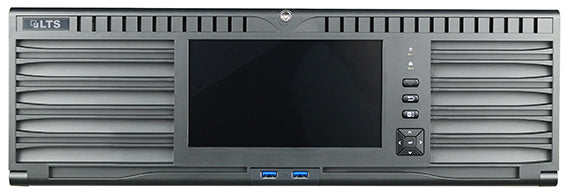

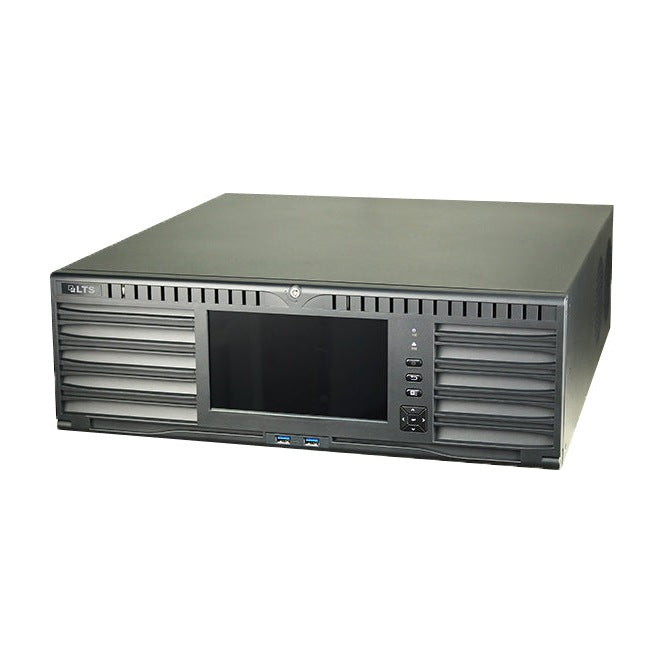

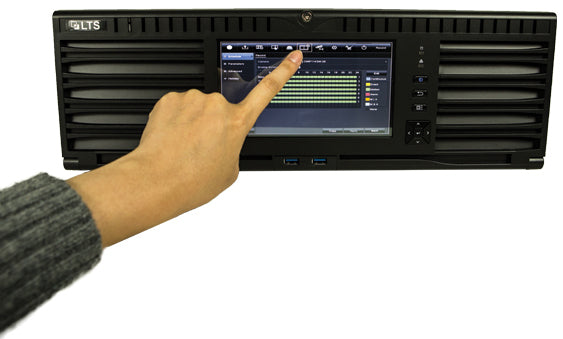

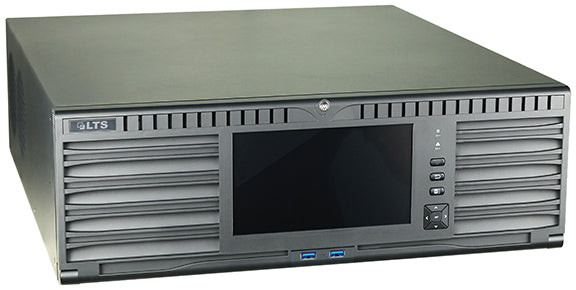

LTS LTN07256-R16 Platinum Enterprise Level 256 Channel NVR 3U
Sale price
$7,668.40
Regular price
$10,495.00
Skip to product information
LTS LTN07256-R16 Platinum Enterprise Level 256 Channel NVR 3U
Sale price
$7,668.40
Regular price
$10,495.00
The Platinum 8+8 Channel Hybrid NVR Compact 1U is the one of the most robust, reliable, and feature-rich recorders which supports live view, storage, playback up to 4K and 8MP IP camera. It offers H.264 Zip+ / H.264 video, audio input and 1080P HDMI / VGA Video Output. The Platinum 8+8 Channel Hybrid NVR Compact supports 8 channel HD-TVI 3.0 / AHD / analog and 8 channel IP camera @80MB bandwidth.
- 256 Channel Network Video Recorder
- Support Live View, Recording, Playback up to 12MP
- Quad-Core CPU
- 16 SATA up to 128TB
- 4 RJ45 10/100/1000Mbps Ethernet Interfaces
- RAID0, RAID1, RAID5, RAID 6, and RAID10 Hot Swap
- H.265/H.265+/H.264/H.264+ Ready
| Model | LTN07256-R16 | |
| Recorder Series | Platinum Series | |
| Recorder Channel | Others | |
| Recorder Case | 3U Case | |
| Recorder Technology | IP / NVR | |
| Featured Product | No | |
| Video/Audio input | ||
| IP Video Input | 256-CH | |
| Two-Way audio Input | 1-ch, RCA (2.0 Vp-p, 1kΩ) | |
| Network | ||
| Incoming Bandwidth | 768Mbps/ 768Mbps | |
| Outgoing Bandwidth | 768Mbps/768Mbps | |
| Remote Connection | 256 | |
| Video/Audio Output | ||
| Recording Resolution | 8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| HDMI1/VGA1 Output Resolution | Two independent HDMI outputs of 4K resolution. Resolution: 4K(40962160), 4K(38402160)/30Hz 2K(25601440)/60Hz, 1080p(19201080)/60Hz, UXGA(16001200)/60Hz, SXGA(12801024)/60Hz, 720p(1280720)/60Hz, XGA(1024768)/60Hz 1-ch Resolution: 1080p(19201080)/60Hz, UXGA(16001200)/60Hz, SXGA(12801024)/60Hz, 720p(1280720)/60Hz, XGA(1024768 )/60Hz |
|
| HDMI2 Output | 1-ch,(19201080P)/60Hz, (16001200)/60Hz, (12801024)/60Hz, (1280720)/60Hz, (1024768)/60Hz | |
| HDMI outputs (on HDMI Output Extension Board) | 1-ch,(19201080P)/60Hz, (16001200)/60Hz, (12801024)/60Hz, (1280720)/60Hz, (1024768)/60Hz | |
| Audio Output | 1-ch, RCA (Linear, 1kΩ) | |
| Decoding | ||
| Live View/Playback Resolution | H.264, MPEG4, M-JPEG | |
| Synchronous Playback | 16-CH | |
| Capability | 44-ch@1080P | |
| Hard Disk | ||
| SATA | 16 SATA interfaces supporting hot-plug | |
| Capacity | Up to 8TB Capacity for Each HDD | |
| Disk Array | ||
| Array Type | RAID0, RAID1, RAID5, RAID 6, and RAID10 | |
| Number of Array | 16 | |
| Interface | ||
| Network Interface | 4, RJ45 10M / 100M / 1000M self-adaptive Ethernet interface | |
| Optic Fiber Interface | 4, 1000 Mbps Optic Fiber Interface | |
| Serial Interface | 1 RS-485,Keyboard | |
| USB Interface | Front Panel: 2USB 2.0; Rear Panel: 2USB 3.0 | |
| Alarm In/Out | 16/8 | |
| General | ||
| Power Supply | 100 ~ 240 VAC, 550W | |
| Consumption | ≤140W (without hard disk or DVD-R/W) | |
| Working Temperature | 14F ~ 131F (-10 C ~ +55 C) | |
| Working Humidity | 10% ~ 90% | |
| Casing | 19-Inch Rack-Mounted 3U Chassis | |
| Dimensions (WxDxH) | 17.4"19.4"5.7" (442494146 mm) | |
| Weight | ≤ 35.3 lbs (16Kg, without hard disk or DVD-R/W) | |
