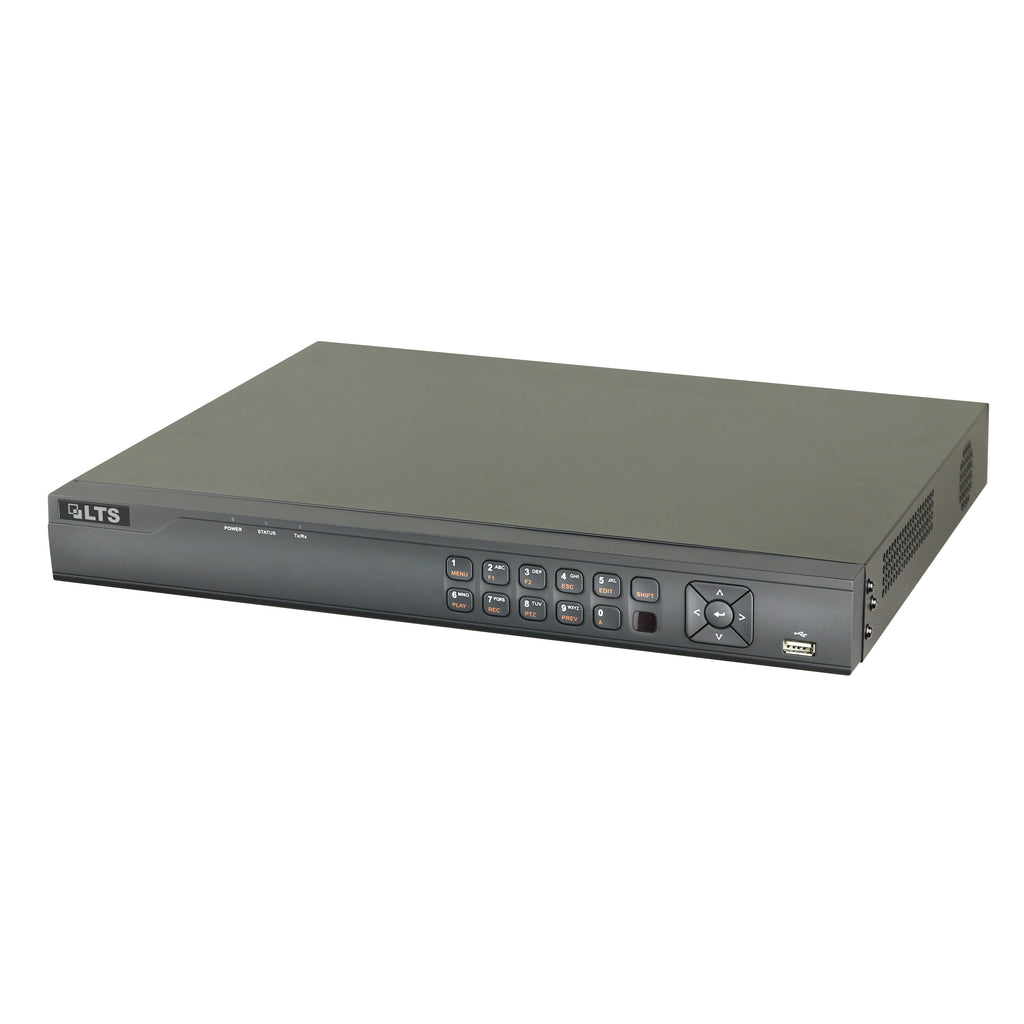

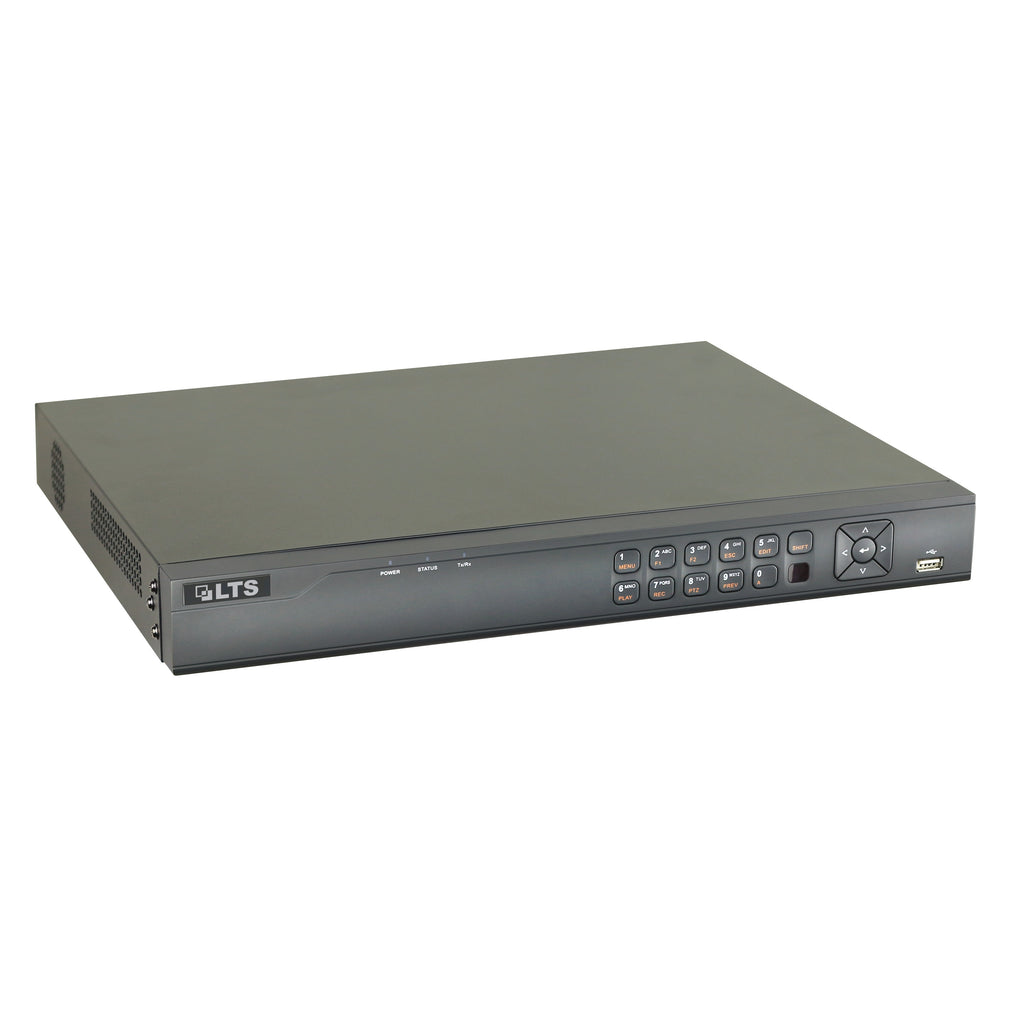

LTS LTD8516T-ST 16 Channel Platinum Advanced Level HD-TVI 3.0 DVR
Sale price
$594.61
Regular price
$815.00
Skip to product information
LTS LTD8516T-ST 16 Channel Platinum Advanced Level HD-TVI 3.0 DVR
Sale price
$594.61
Regular price
$815.00
The Platinum Advanced Level Channel comes equipped with a 16 channel video recorder which works at 3MP@15fps / 1080p@30fps. It delivers CVBS output and 2 SATA up to 16TB HDD. It imparts support live view, playback and storage up to 16 HD-TVI 3MP/ AHD Cameras + 2 IP Camera up to 4MP/ Analog. The intelligently designed system and structure ensures that it works efficiently.
- 16 Channel Video Recorder
- Support Live View, Storage, Playback up to 16 HD-TVI 3MP / Analog / AHD Cameras + 2 IP Camera up to 4MP
- Up to 2K (2560x1440P) HDMI Video Output
- 3MP@15fps / 1080p@30fps
- CVBS output
- 2 SATA up to 16TB HDD
- H.264 / H.264 Zip+
- 2 USB 2.0
- 4CH Audio Input
| Model | LTD8516T-ST | |
| Recorder Series | Platinum Series | |
| Recorder Channel | 16-Channel | |
| Recorder Case | 1U Case | |
| Recorder Technology | TVI DVR | |
| Featured Product | No | |
| Video/Audio Input | ||
| Video Compression | H.264 Zip+/H.264 | |
| Video Input | 16ch BNC (1.0Vp-p, 75Ω),supporting coaxitron connection |
|
| IP Input | Up to 2CH (Support ONVIF, up to 4MP Resolution) | |
| Audio Compression | G.711u | |
| Audio Input | 4-CH, RCA (2.0 Vp-p kΩ) | |
| Two-Way Audio Input | 1-CH, RCA (2.0 Vp-p kΩ) | |
| Video/Audio Outuput | ||
| HDMI/VGA Output | 1 -ch , 1920 1080/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60 Hz | |
| Encoding resolution | 3MP@15fps/1080p@30fps/720p@30fps | |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 1 kΩ) | |
| Frame Rate | Main stream: 30f ps(N)/25fps(P) Sub-stream:WD1/4CIF@12fps (non-real-time); CIF/QVGA/QCIF (real time) |
|
| Video Bit Rate | 32 Kbps-10 M bps | |
| Audio Output | 1-ch, RCA (Linear, 1 kΩ) | |
| Audio Bit Rate | 64 Kbps | |
| Dual Stream | Support | |
| Stream Type | Video, Video & Audio | |
| Synchronous Playback | 16ch | |
| Network | ||
| Remote Connections | 128 | |
| Network Protocols | TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, SAD P, NFS, iSCSI, UPnP, HTTPS, ONVIF | |
| Hard Disk | ||
| SATA | 2 SATA | |
| Capacity | Up to 8 TB capacity for each disk | |
| External Interface | ||
| Network interface | 1:10M / 100Mself-adapt ive Ethernet interface | |
| Serial interface | RS-4 85 | |
| USB Port | 2 USB2.0 | |
| Alarm In/Out | 16/4 | |
| General | ||
| Power supply | DC12V | |
| Consumption | ≤ 20W | |
| Working temperature | -10 C ~ +55 C(14F - 131F) | |
| Working humidity | 10% ~ 90% | |
| Chassis | 1U chassis | |
| Dimensions (WxDxH) | 380 320 45 mm (15.0 12.6 1.8 inch) | |
| Weight | ≤ 2 Kg (4.4 lb) | |
