LTS LTD8508K-ST Platinum Professional Level 8 Channel HD-TVI 4.0 DVR
Sale price
$343.81
Regular price
$470.00
Skip to product information

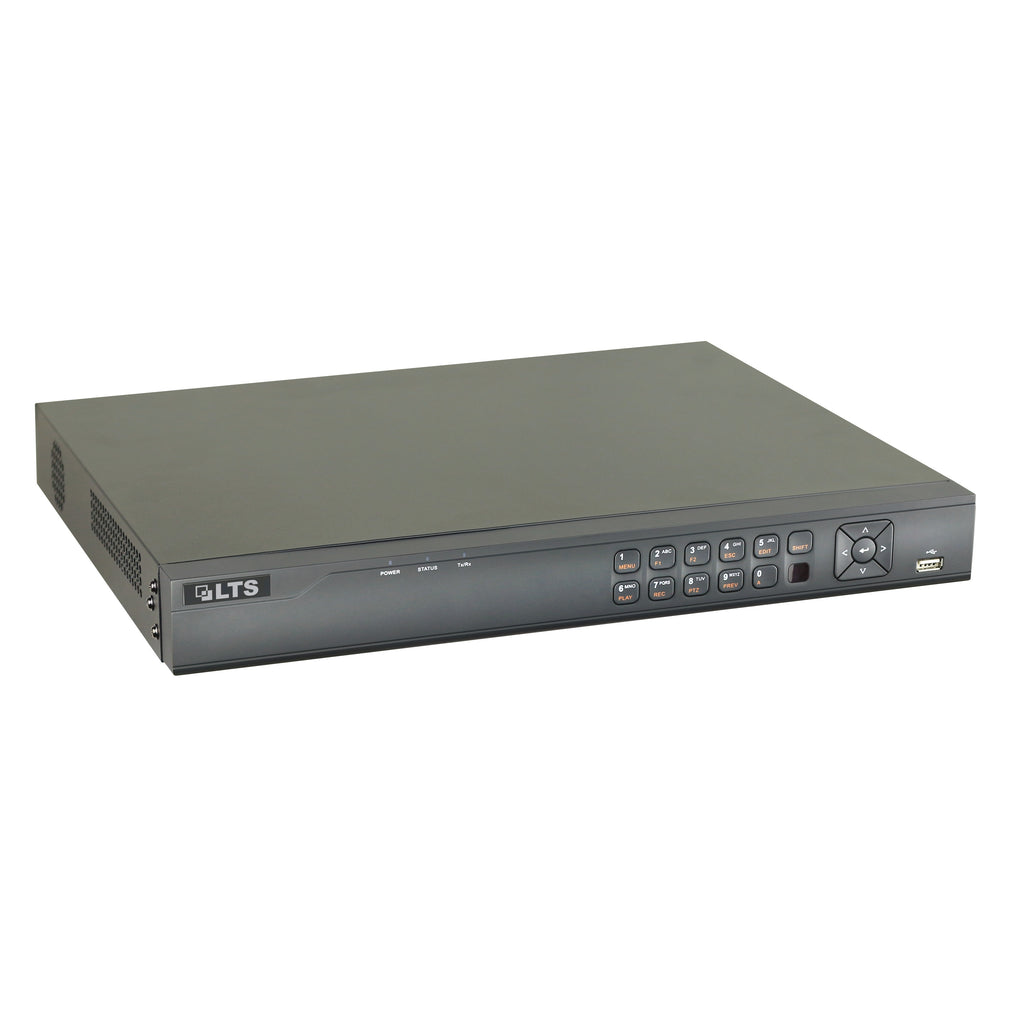

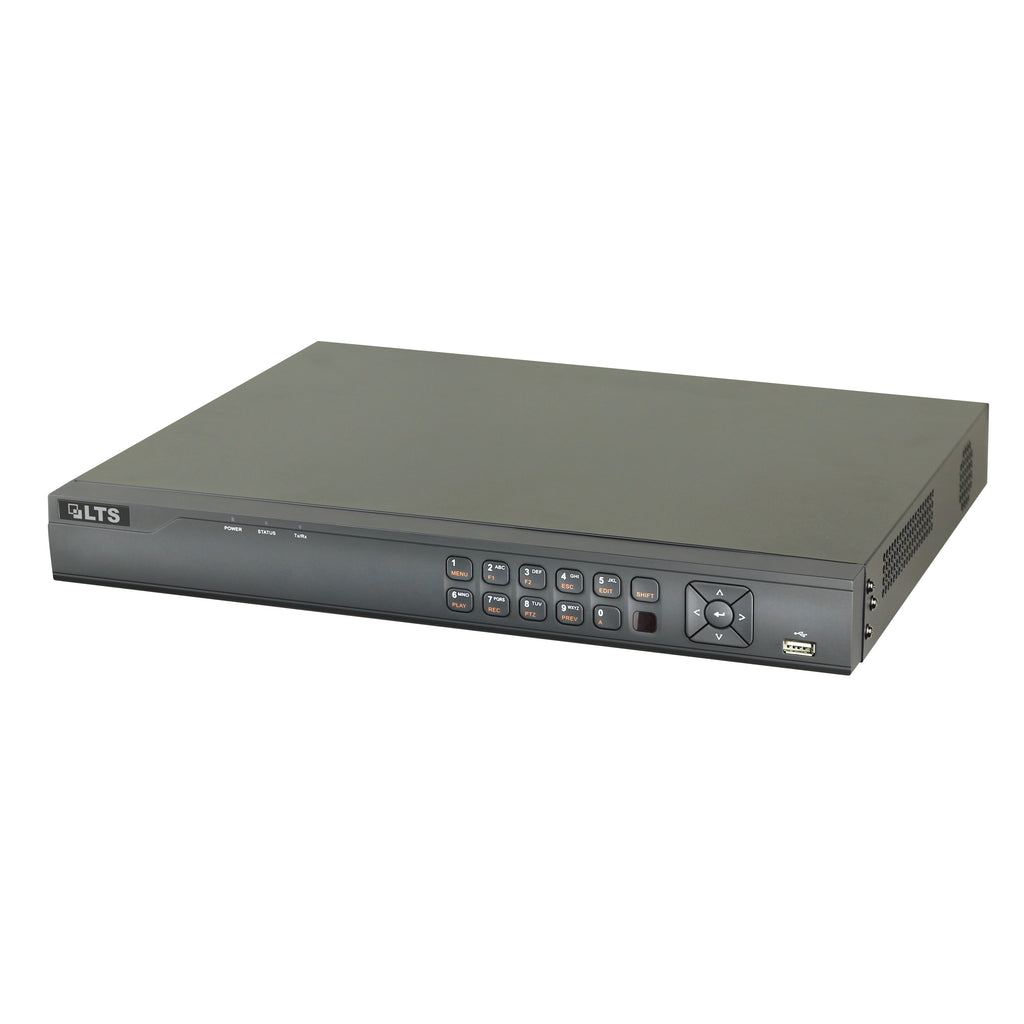

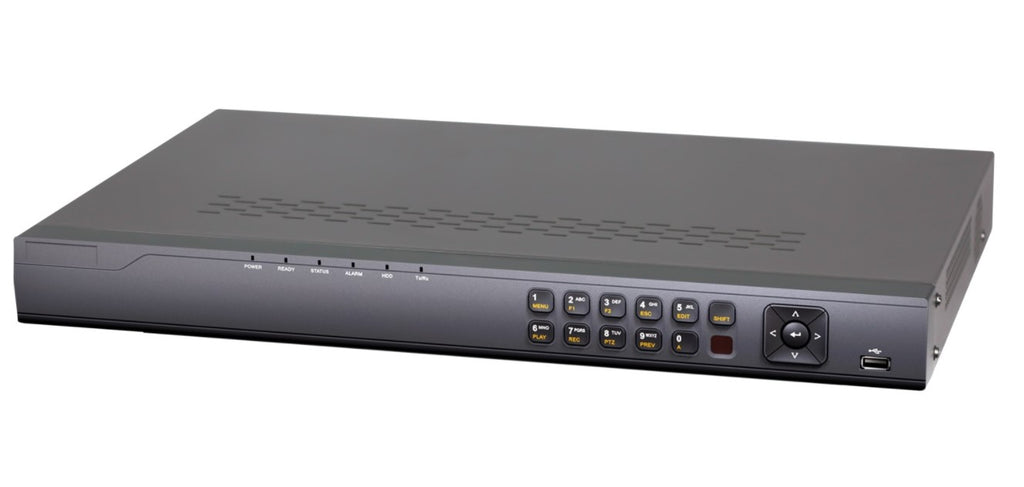

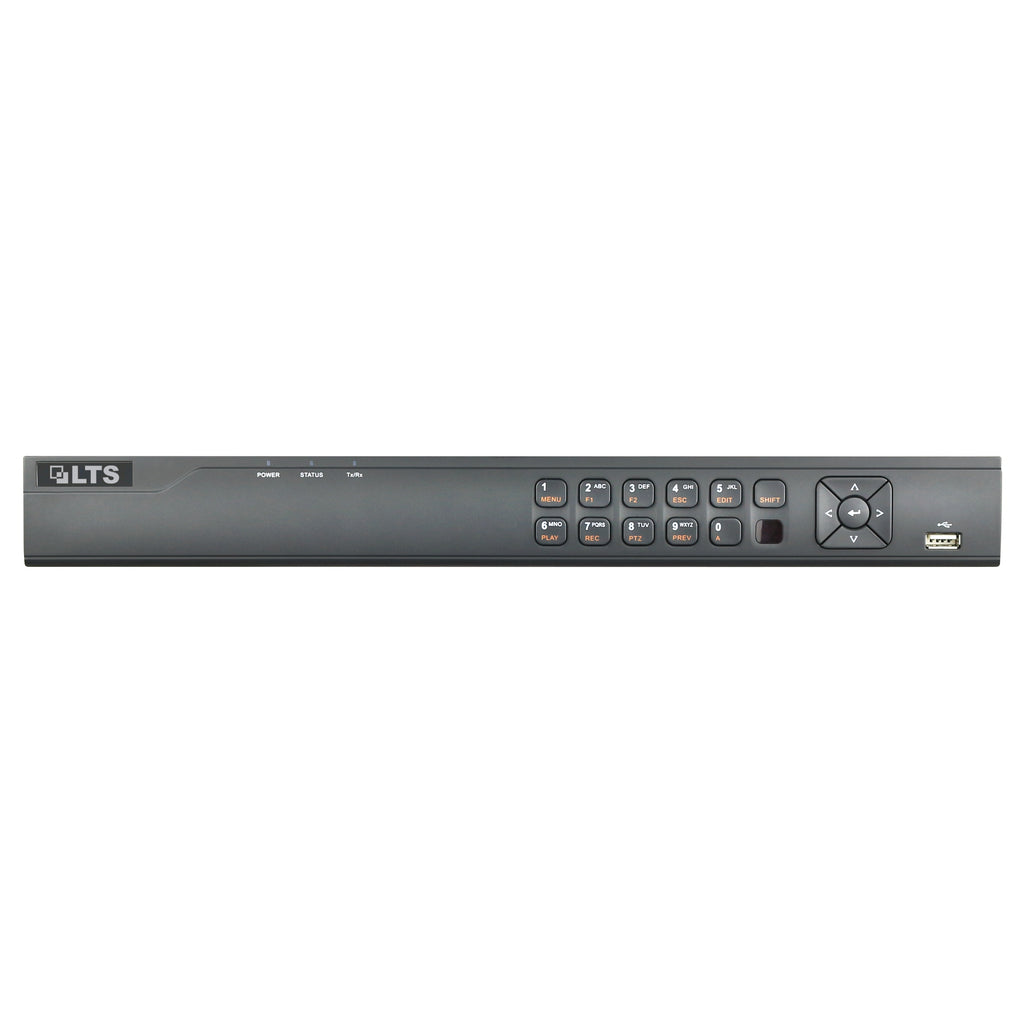

LTS LTD8508K-ST Platinum Professional Level 8 Channel HD-TVI 4.0 DVR
Sale price
$343.81
Regular price
$470.00
The Platinum Professional Level 8 Channel HD-TVI 4.0 DVR is an H.265+ 8 Channel Video Recorder which supports up to 5M HD-TVI input. It delivers up to 4K HDMI video output and also CVBS output. This feature rich DVR supports live view, storage, playback up to 8 HD-TVI, analog cameras and 2 IP cameras.
- H.265+ 8 Channel Video Recorder
- 4/1 RCA I/O
- 8 channels Support HD-TVI / AHD/ ANALOG / CVI / IP input (5 in 1)
- 8 channels support up to 5M HD-TVI input
- Up to 2-ch 6 MP IP cameras input
- Support Live View, Storage, Playback up to 8 HD-TVI / Analog Cameras + 2 IP Cameras
- Up to 4K HDMI Video Output
- CVBS Output
- 2 SATA up to 16TB HDD
- 2 USB 2.0
| Model | LTD8508K-ST | |
| Recorder Series | Platinum Series | |
| Recorder Channel | 8-Channel | |
| Recorder Case | 1U Case | |
| Recorder Technology | TVI DVR | |
| Featured Product | No | |
| VIDEO/AUDIO INPUT | ||
| Video Compression | H.265+ / H.265 / H.264 Zip+ / H.264 | |
| Video Input | 8ch BNC interface (1.0Vp-p, 75 Ω), supporting coaxitron connection |
|
| IP Input | 2-ch, Up to 6 MP resolution | |
| HDTVI Input | 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 | |
| AHD Input | 1080p25, 1080p30, 720p25, 720p30 | |
| HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 | |
| CVBS Input | Support | |
| Audio Compression | G.711u | |
| Audio Input | 4-CH, RCA (2.0 Vp-p 1 kΩ) | |
| Two-Way Audio Input | 1-CH, RCA (2.0 Vp-p 1 kΩ) | |
| VIDEO/AUDIO OUTUPUT | ||
| HDMI/VGA Output | VGA: 1-ch, 19201080/60Hz, 12801024/60Hz, 1280720/60Hz, 1024768/60Hz HDMI: 1-ch, 4K(38402160)/30Hz, 2K(25601440)/60Hz, 19201080/60Hz, 12801024/60Hz, 1280720/60Hz, 1024768/60Hz |
|
| Encoding Resolution | 5 MP/4 MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF | |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 1 kΩ), resolution: PAL: 704576, NTSC: 704480 | |
| Frame Rate | Main stream: 5MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N) Sub-stream: WD1/4CIF/CIF@25fps(P)/30fps(N) |
|
| Video Bit Rate | 32 Kbps - 10 Mbps | |
| Audio Output | 1-ch, RCA (Linear, 1 kΩ) | |
| Audio Bit Rate | 64 Kbps | |
| Dual Stream | Support | |
| Stream Type | Video, Video & Audio | |
| Synchronous Playback | 8ch | |
| NETWORK | ||
| Remote Connections | 128 | |
| Network Protocols | TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF | |
| HARD DISK | ||
| SATA | 2 SATA | |
| Capacity | Up to 8TB capacity for each disk | |

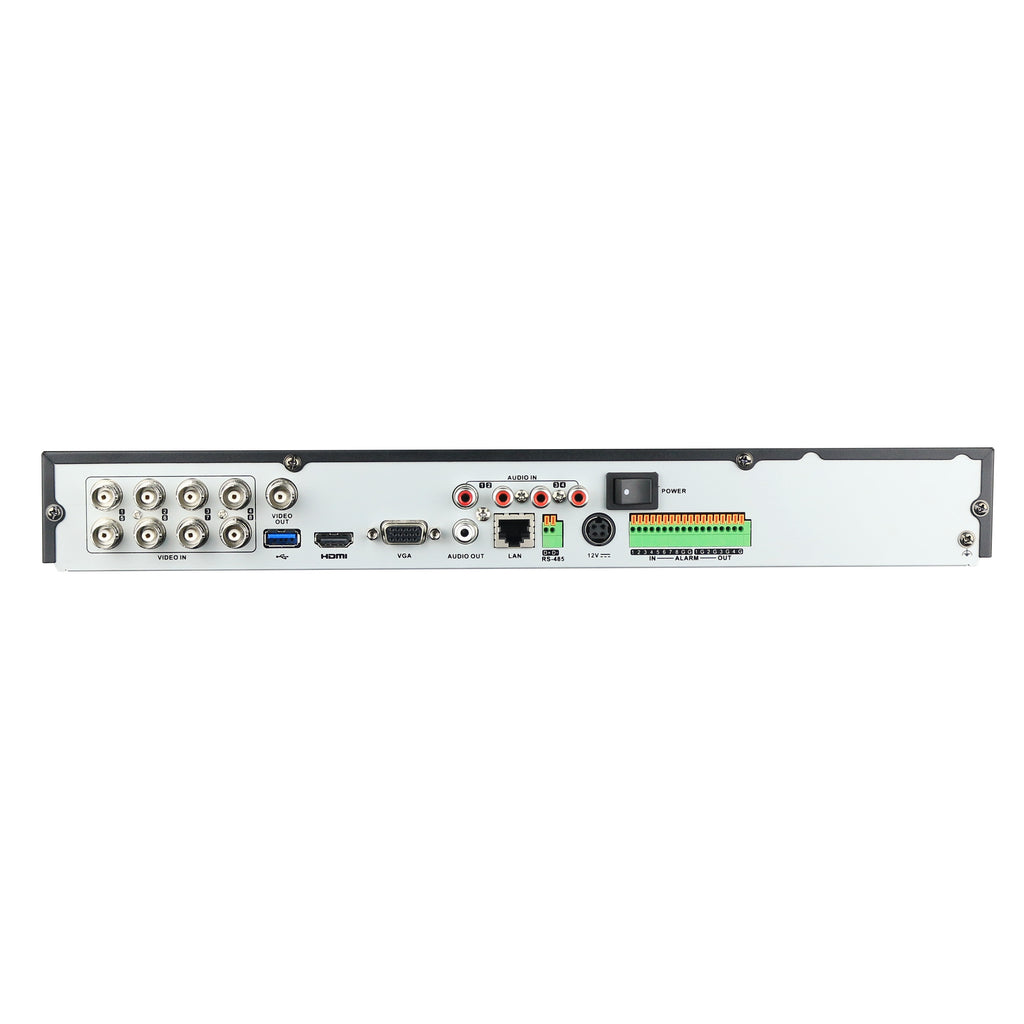

| EXTERNAL INTERFACE | ||
| Network Interface | 1: 10M / 100M self-adaptive Ethernet interface | |
| Serial Interface | RS-485 (half-duplex) | |
| USB Port | 2USB2.0 | |
| Alarm In/Out | 8/4 | |
| GENERAL | ||
| Power Supply | DC12V | |
| Consumption | ≤ 20W | |
| Working Temperature | -10C ~ +55C (14F - 131F) | |
| Working Humidity | 10% ~ 90% | |
| Chassis | 1U | |
| Dimensions (WxDxH) | 38032045 mm (15.012.61.8 inch) | |
| Weight | ≤ 4.4 lbs (2 Kg) | |
