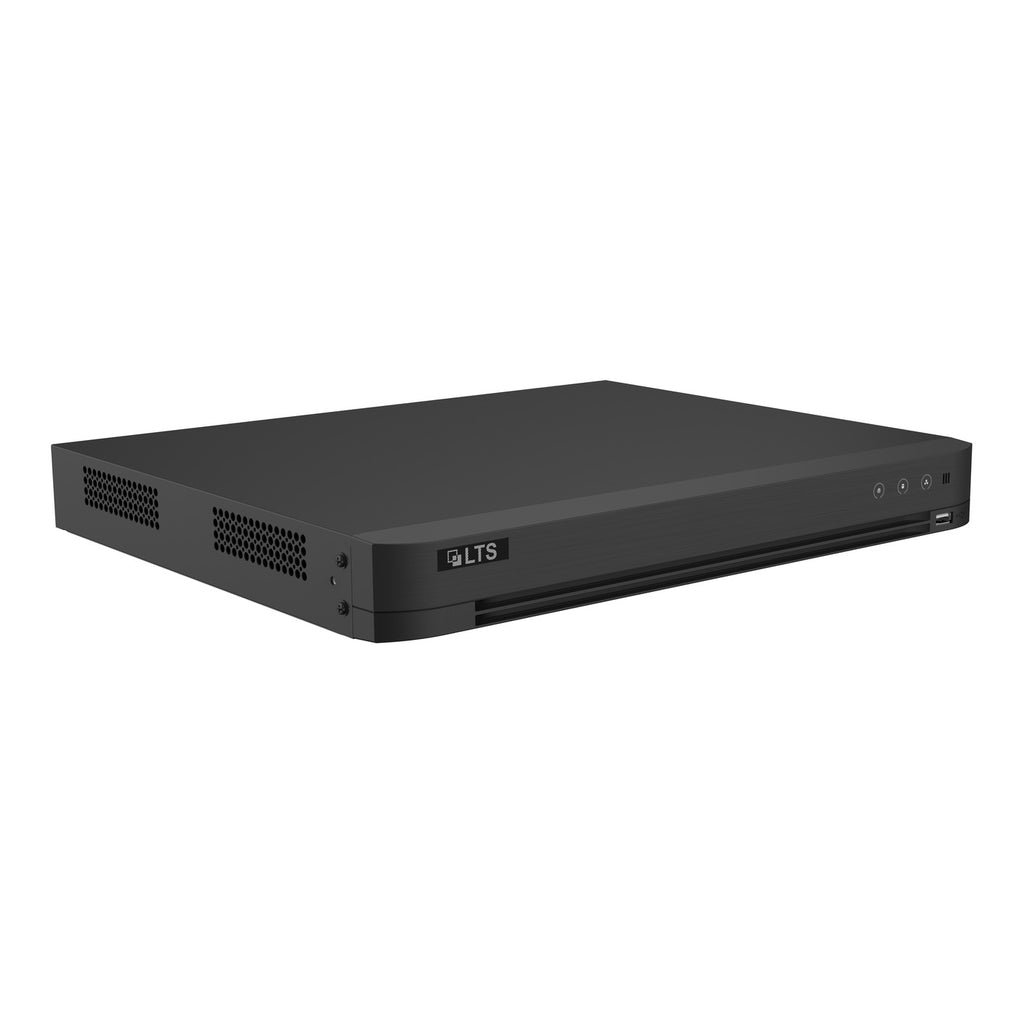

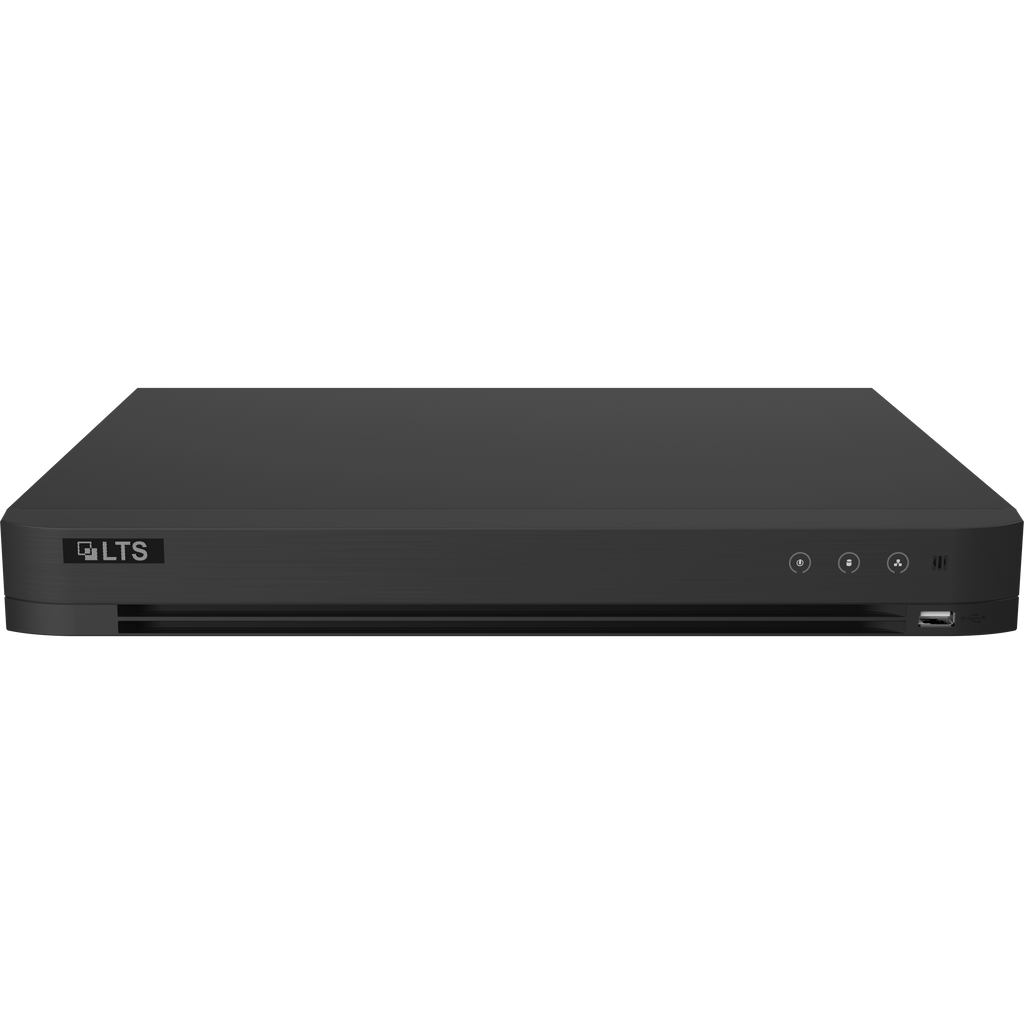

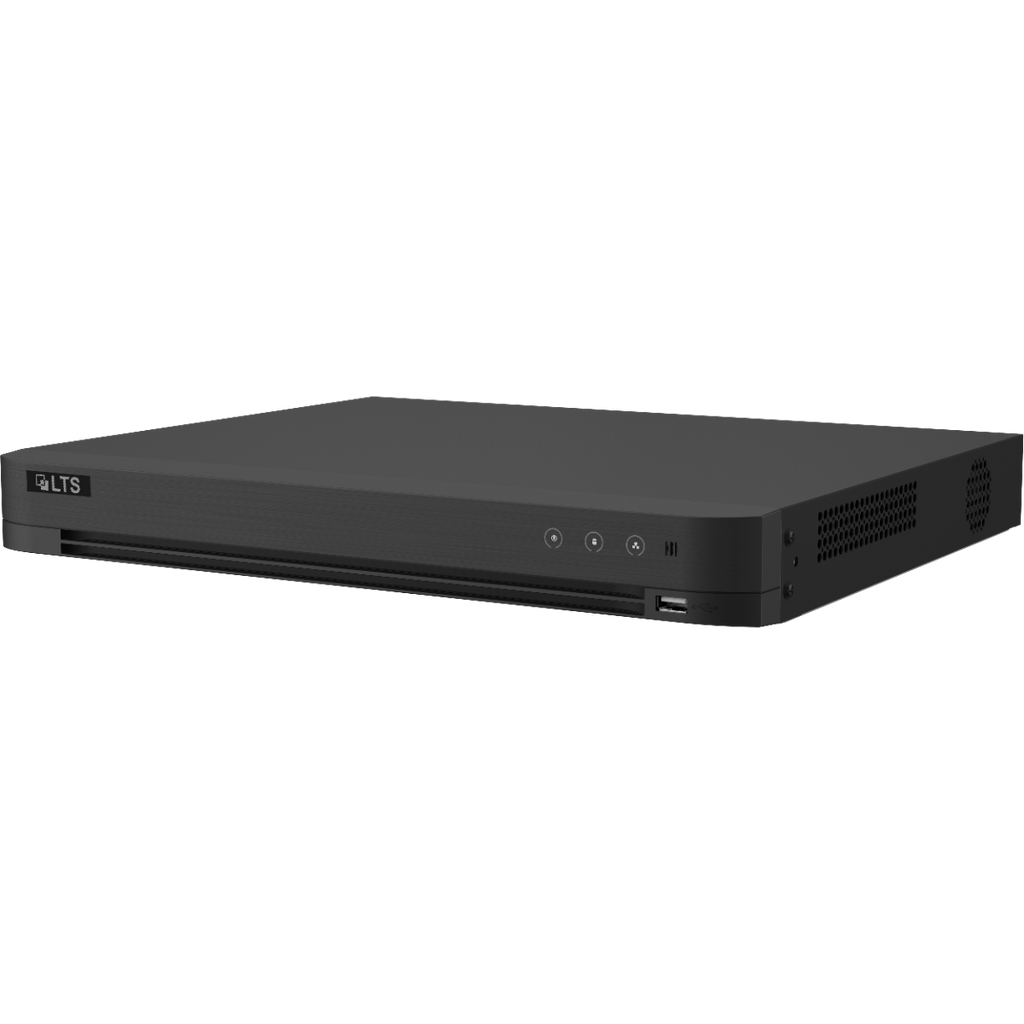

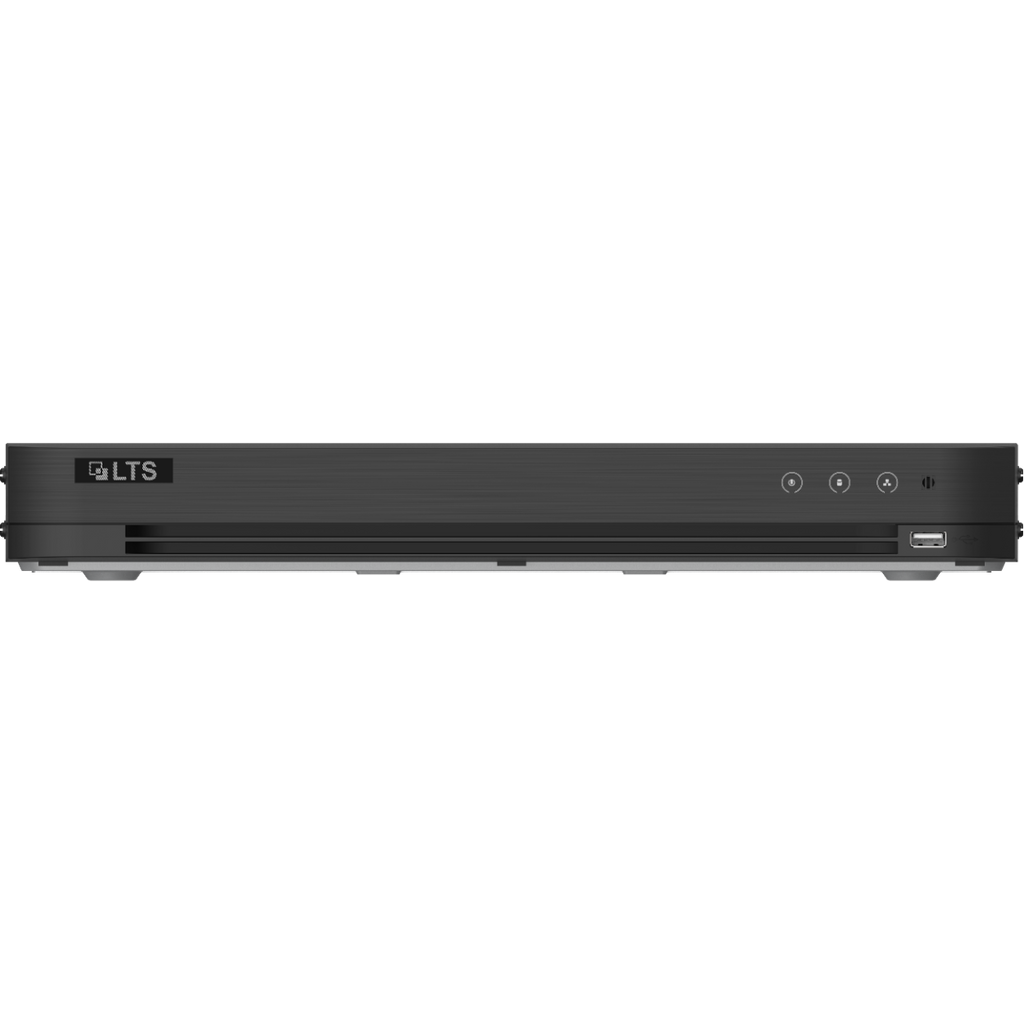

LTS LTD8508D-STC 8-ch 5 MP 1U H.265 Direct Search DVR

LTS LTD8508D-STC 8-ch 5 MP 1U H.265 Direct Search DVR

$361.90 $470.00

The LTD8508D-STC is an advanced 8-channel 5 MP DVR built with a 1U Direct Search platform for fast and efficient event review. It supports HD-TVI/AHD/CVI/CVBS/IP (5-in-1) inputs and offers powerful encoding up to 4K/8 MP @ 8 fps or 3K/5 MP @ 12 fps. Deep-learning analytics enable 4-channel facial recognition or 8-channel perimeter protection, along with full 8-channel Direct Search Technology for rapid playback navigation.

Features

  • 8 channels and 1 HDD 1U Direct Search DVR
  • Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
  • Support 8-ch Direct Search Technology
  • Encoding ability up to 4K/8MP @ 8fps; 3K/5MP @12fps
  • Up to 16 channels IP camera inputs, each channel up to 8MP
  • Up to 24*1080P@30fps decoding ability
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Support All channels Motion Detection Technology
  • Support All channels HDTVI Two-Way Audio Technology
  • Smart Function:
  • Up to 8 channels (analog channel) Motion Detection 2.0
  • Up to 8 channels (advanced model, analog channel) Perimeter Protection
  • Up to 4 channels (advanced model, analog channel) of human face recognition
  • Support smart playback to enhance playback efficiency

Specifications

Model LTD8508D-STC
Facial Recognition
Face Picture Library Up to 16 face picture libraries;
HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.
Face Picture Comparison 4-ch face picture comparison alarm (HD analog camera)
Perimeter Protection
Human/Vehicle Analysis Up to 8-ch (advanced model)
Facial Detection
Facial Detection and Capture Face picture detection, face picture search;
4-ch face picture capture
Video and Audio
IP Video Input 8-ch (up to 16-ch), each up to 8MP
Analog Video Input 8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output 1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, HDMI/VGA simultaneous output
VGA Output 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, HDMI/VGA simultaneous output
CVBS Input PAL/NTSC
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω),
Resolution: PAL: 704 x 576, NTSC: 704 x 480
Synchronous Playback 8-ch
HDTVI Input 8 MP(3840 x 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328x1504)@20fps,
5 MP(2560 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
AHD Input 5 MP(2560 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
HDCVI Input 8 MP(3840 x 2160)@12/15 fps, 3K(2880×1620)@25/20fps, 5 MP(2592 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ), 8-ch via coaxial cable
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate 32 Kbps to 10 Mbps
Dual-stream Support main stream or sub stream
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
Decoding
Decoding Capability up to 24-ch 1080P@30fps
Network
Total Bandwidth 256 Mbps
Network Protocol TCP/IP, PPPoE, DHCP, LTS Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP", HTTPS, ONVIF, ISUP
Remote Connection 64
Network Interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
SATA 1 SATA interface
Capacity up to 12 TB capacity for each disk
Serial Interface RS-485 (half-duplex)
USB Interface Front panel: 1 x USB 2.0;
Rear panel: 2 x USB 3.0
Alarm In/Out N/A
General
Power Supply 12 VDC, 2 A
Consumption ≤ 24 W
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Dimension (W x D x H) 320 x 240 x 48 mm (12.6 x 9.4 x 1.9 inch)
Weight ≤ 2 kg (4.4 lb)
