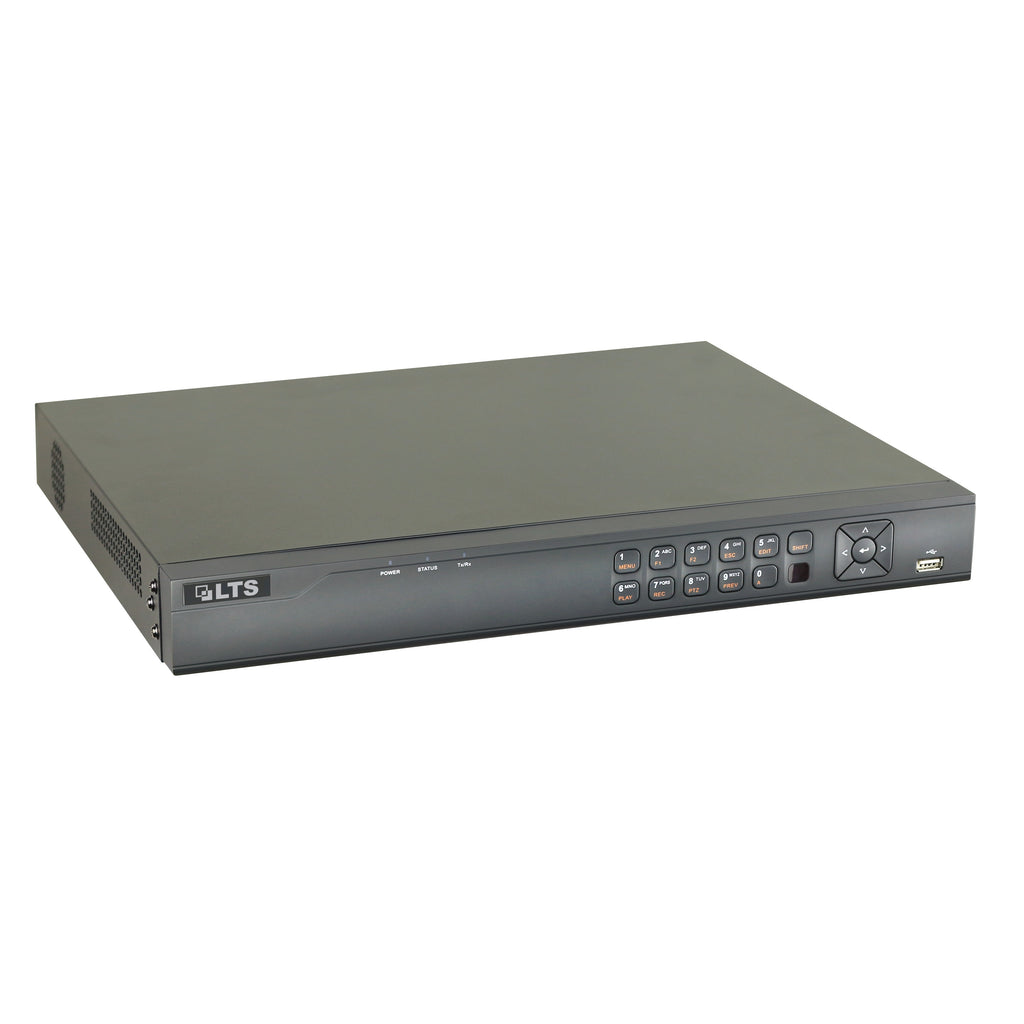

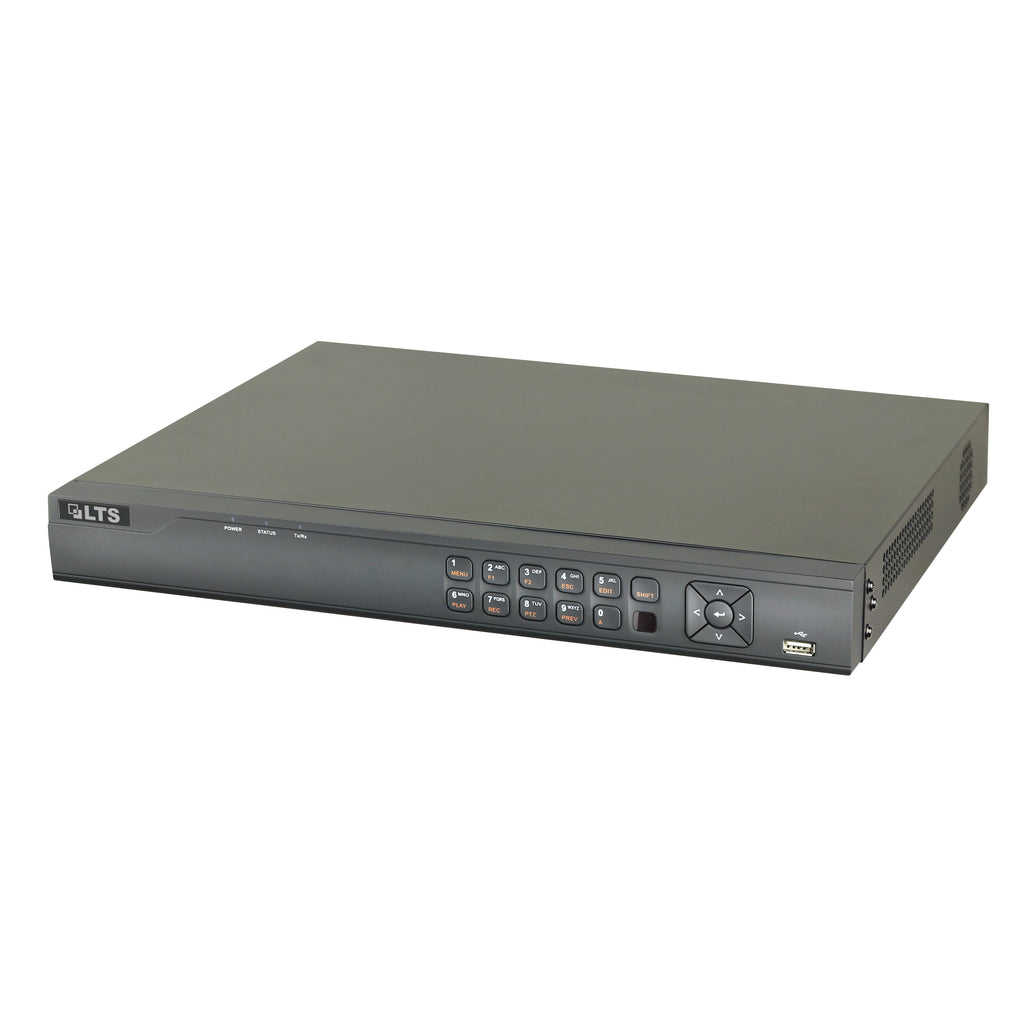

LTS LTD8308T-EA Platinum Advanced Level 8 Channel HD-TVI DVR - Efficient Mode
Sale price
$172.43
Regular price
$235.00
The Platinum Advanced Level 8 Channel HD-TVI DVR has H.264/ H.264 zip+ video compression and G.711u audio compression. It features 8/4 alarm in and out port and supports live view, storage, playback up to 8 TVI, analog cameras and 2 IP cameras. It has 2 SATA hard disk with storage capacity Up to 8TB HDD each.
- 8CH HD-TVI DVR
- Support Live View, Storage, Playback up to 8 TVI/Analog Cameras + 2 IP Cameras
- Up to 1080P (1920x1080) HDMI Video Output
- CVBS Output
- 2 SATA up to 16TB each HDD
- Up to 1080p@30fps with Efficient mode On
- H.264/ H.264 Zip+
- Alarm in/out: 8/4
| Model | LTD8308T-EA | |
| Recorder Series | Platinum Series | |
| Recorder Channel | 8-Channel | |
| Recorder Case | 1U Case | |
| Recorder Technology | TVI DVR | |
| Featured Product | No | |
| VIDEO/AUDIO INPUT | ||
| Video Compression | H.264 Zip+ / H.264 | |
| Video Input | 8ch BNC (1.0Vp-p, 75 Ω), PAL / NTSC self-adaptive |
|
| IP Input | 2-ch, (Support ONVIF, up to 2 MP resolution) | |
| Audio Compression | G.711u | |
| Audio Input | 1-CH, RCA (2.0 Vp-p 1 kΩ) | |
| Two-Way Audio Input | 1-CH, RCA (2.0 Vp-p 1 kΩ) | |
| VIDEO/AUDIO OUTUPUT | ||
| HDMI/VGA Output | 1920×1080 | |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 1 kΩ) | |
| Frame Rate | Main stream:1/16 fps to real time frame rate Sub-stream: WD1/4CIF@12fps,CIF/QVGA/QCIF@real time frame rate |
|
| Video Bit Rate | 32 Kbps - 6 Mbps | |
| Audio Output | 1-ch, RCA (Linear, 1 kΩ) | |
| Audio Bit Rate | 64 Kbps | |
| Dual Stream | Support | |
| Stream Type | Video, Video & Audio | |
| Synchronous Playback | 8ch | |
| NETWORK | ||
| Remote Connections | 128 | |
| Network Protocols | TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF | |
| HARD DISK | ||
| SATA | 2 SATA | |
| Capacity | Up to 8TB HDD | |
| EXTERNAL INTERFACE | ||
| Network Interface | 1: 10M / 100M self-adaptive Ethernet interface | |
| Serial Interface | RS-485, Keyboard | |
| USB Port | 2×USB2.0 | |
| Alarm In/Out | 8/4 | |
| GENERAL | ||
| Power Supply | DC12V | |
| Consumption | ≤ 20W | |
| Working Temperature | -10°C ~ +55°C (14°F - 131°F) | |
| Working Humidity | 10% ~ 90% | |
| Chassis | Compact 1U Chassis | |
| Dimensions (WxDxH) | 380×320×45 mm (15.0×12.6×1.8 inch) | |
| Weight | ≤ 4.4 lbs (2Kg) | |
