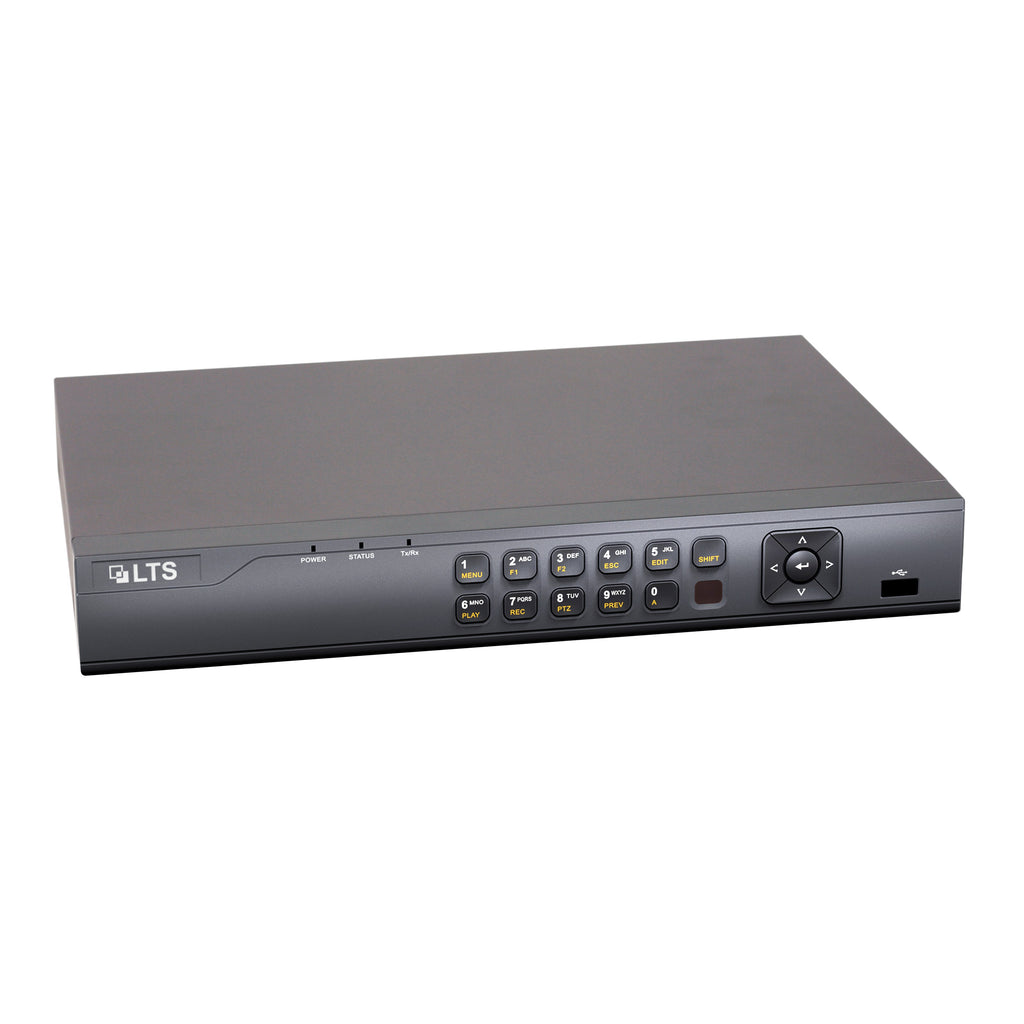

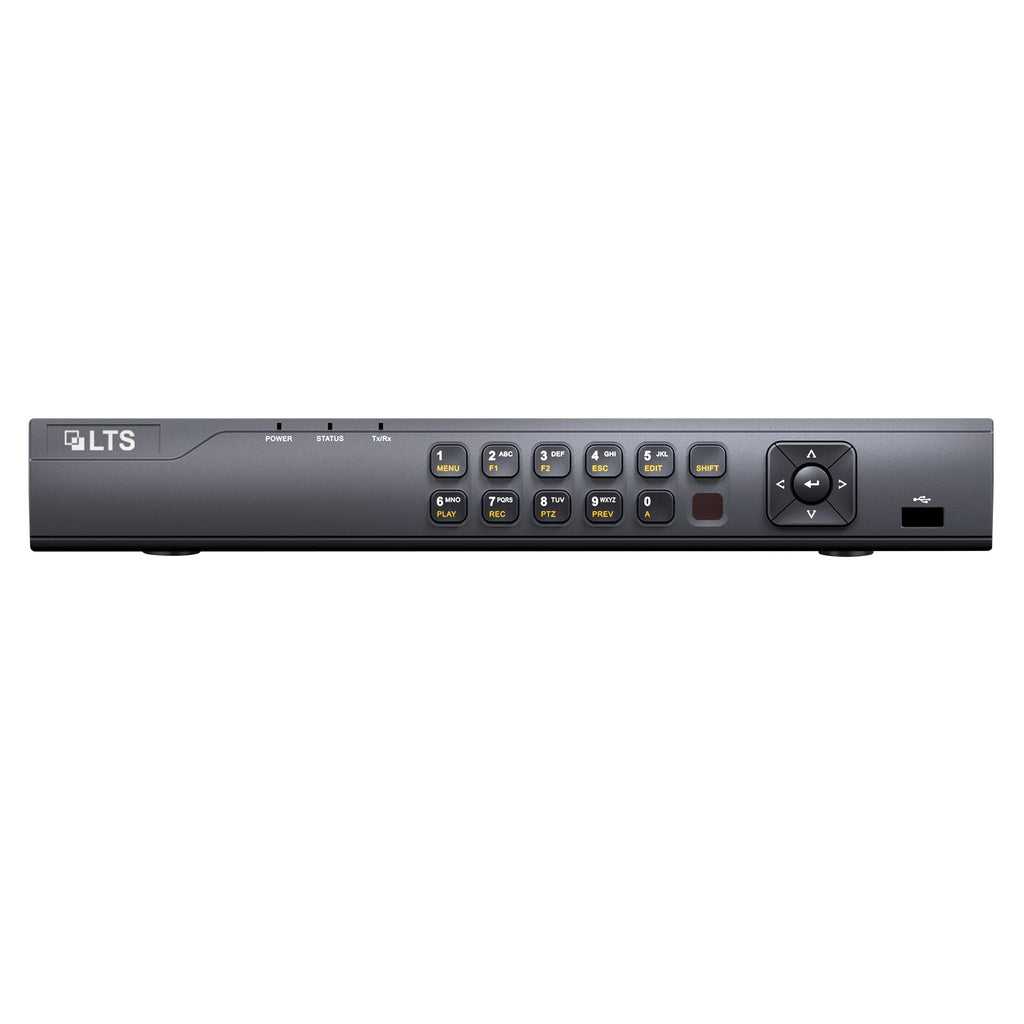

LTS LTD8304T-FT 4 Channel 1U HD-TVI 1080p/Analog/IP Digital Video Recoder
Sale price
$124.36
Regular price
$170.00
Skip to product information
LTS LTD8304T-FT 4 Channel 1U HD-TVI 1080p/Analog/IP Digital Video Recoder
Sale price
$124.36
Regular price
$170.00
| Model | LTD8304T-FT |
| Video / Audio input | |
| Video compression | H.264 |
| HD-TVI video input | 4-ch |
| Video input interface | BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive |
| IP input | 1ch(1080p@30fps) |
| Audio compression | G.711u? |
| Audio input | 1-ch, RCA (2.0 Vp-p, 1 kΩ) |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 kΩ) |
| Video / Audio output | |
| HDMI/VGA output | 1920 ? 1080 / 60 Hz,1280 ? 1024 / 60 Hz, 1280 ? 720 / 60 Hz, 1024 ? 768 / 60 Hz |
| Encoding resolution | Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA |
| Frame rate | Main stream: 1/16 fps ~ Real time frame rate Sub-stream: 1/16 fps ~ Real time frame rate |
| Video bit rate | 32 Kbps-6 Mbps |
| Audio output | 1-ch, RCA (Linear, 1 kΩ) |
| Audio bit rate | 64 Kbps |
| Dual-stream | Support |
| Stream type | Video, Video & Audio |
| Synchronous playback | 4-ch |
| Playback resolution | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
| Network | |
| Remote connection | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP?, HTTPS |
| Hard disk | |
| SATA | 1 SATA interface |
| Capacity | Up to 4TB capacity for each disk |
| External interface | |
| Network interface | 1:10M / 100M self-adaptive Ethernet interface |
| Serial interface | 1; standard RS-485 serial interface, half-duplex |
| USB port | 2 ? USB2.0 |
| General | |
| Power supply | 12V DC |
| Power Consumption | ≤ 15 W |
| Working temperature | -10 ?C~+55?C(14?F ~ 131 ?F) |
| Working humidity | 10% ~ 90% |
| Chassis | 1U chassis |
| Dimension? | 315 ? 230 ? 45 mm (12.4" x 9.1" x 1.8") |
| Weight | ≤ 1.5 kg (3.3 lb) |
