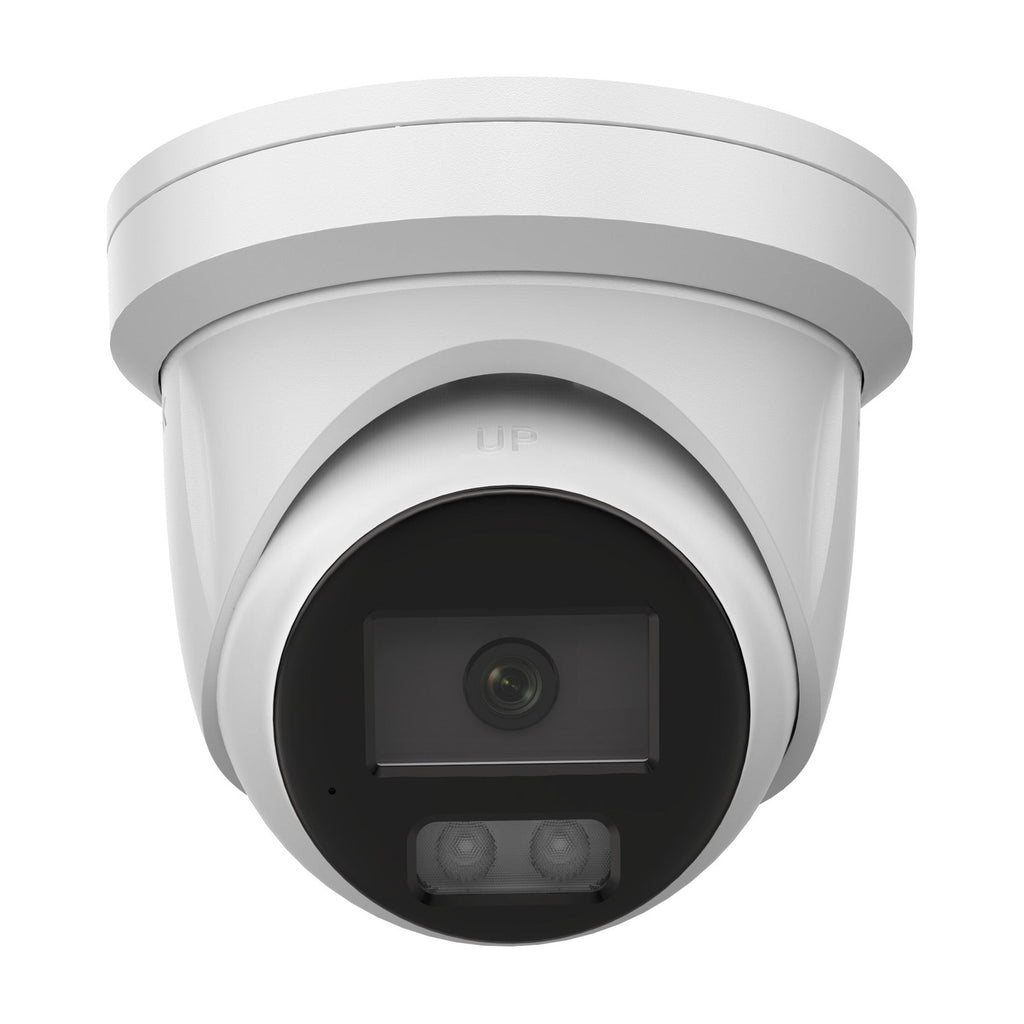

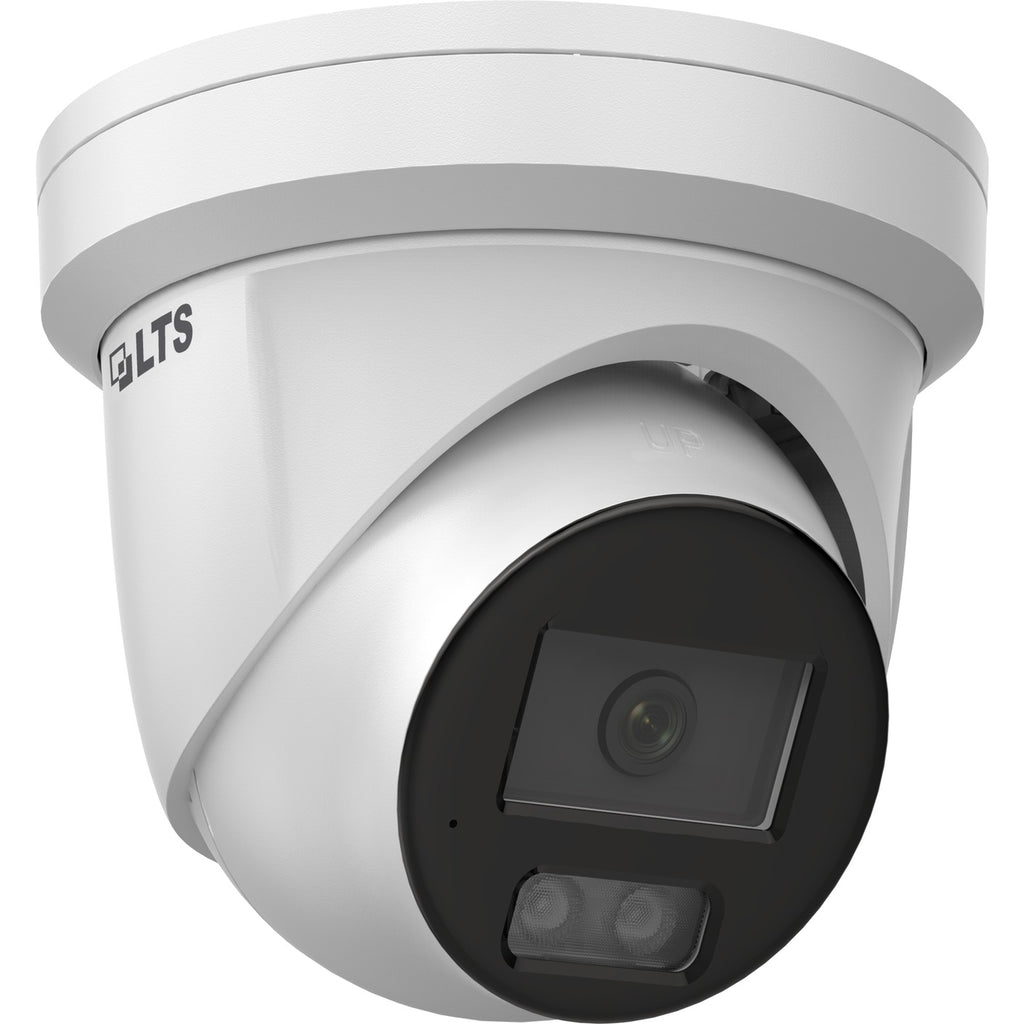

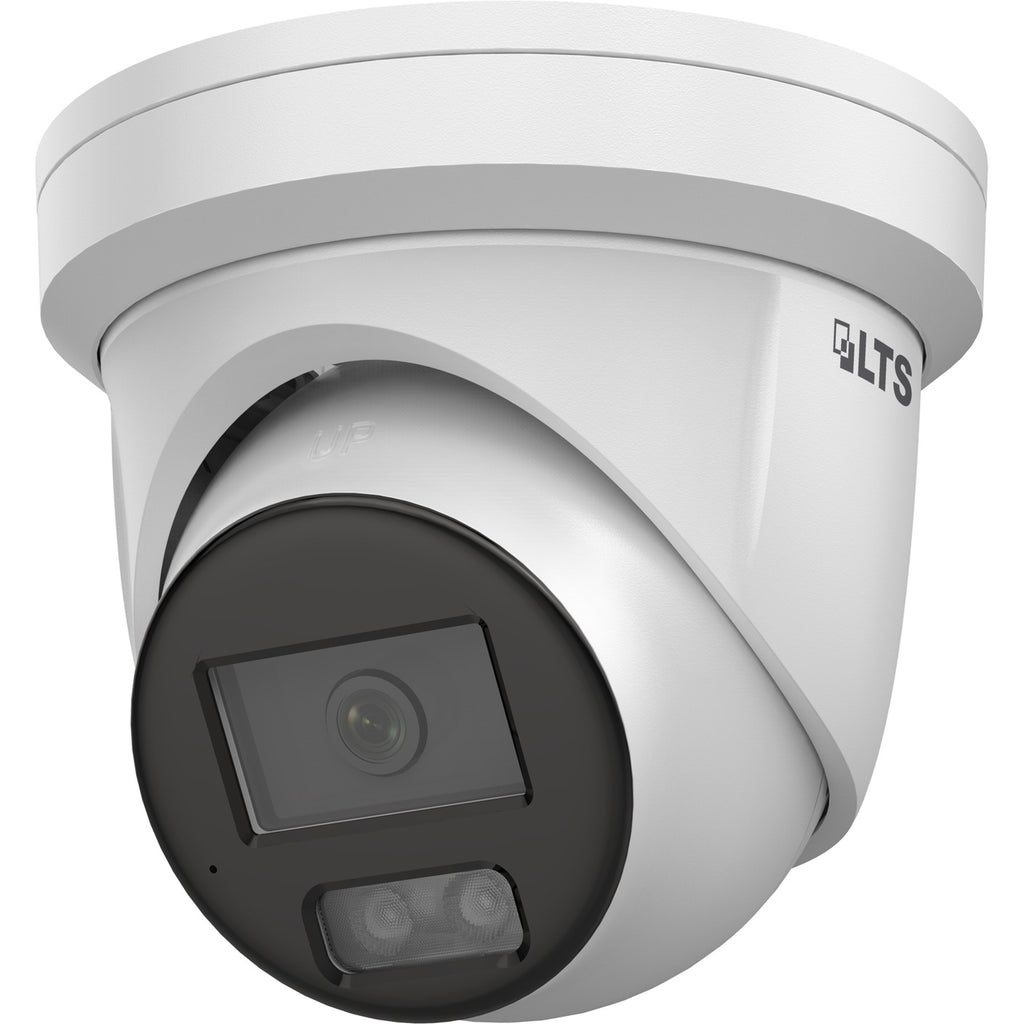

LTS LTCMIP2T83I-SDZ Platinum Plus 8MP Smart Hybrid Light Motorized Varifocal Turret Network Camera 2.8-12mm
Sale price
$416.90
Regular price
$540.00
Skip to product information
LTS LTCMIP2T83I-SDZ Platinum Plus 8MP Smart Hybrid Light Motorized Varifocal Turret Network Camera 2.8-12mm
Sale price
$416.90
Regular price
$540.00
Features
- High quality imaging with 8 MP resolution
- Focus on human and vehicle classification based on deep learning
- Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
- Built-in arrayed dual-microphone for real-time high quality audio security
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Motorized varifocal lens for easy installation and monitoring
- Water and dust resistant (IP67) and vandal-resistant (IK10)
Specifications
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 3840×2160 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with Supplement light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0" to 360°, tilt: 0" to 75", rotate: 0" to 360° |
| Lens | |
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm 2.8 to 12 mm, horizontal FOV 106.5" to 30.2", vertical FOV 55.7" to 17", diagonal FOV |
| Focal Length & FOV | 128.5" to 34.7" |
| Lens Mount | "14 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | 2.8 to 12 mm: D: 88.3 m to 289.7 m, O: 35 m to 114.9 m, R: 17.7 m to 57.9 m, I: 8.8 m |
| DORI | to 29.0 m |
| Illuminator | |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | 50 Hz: 20 fps (3840×2160) 25 fps (3200×1800, 2688×1520, 1920×1080, 1280×720) |
| Main Stream | 60 Hz: 20 fps (3840×2160) 30 fps (3200×1800, 2688×1520, 1920×1080, 1280×720) 50 Hz: 25 fps (1280×720, 640×480, 640×360) |
| Sub-Stream | 60 Hz: 30 fps (1280×720, 640×480, 640×360) 50 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360) |
| Third Stream | 60 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360) *Third stream is supported under certain settings. Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, |
| Video Compression | Third stream: H.265/H.264, *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Bit Rate Control | CBR, VBR |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Target Cropping | Yes |
| Audio | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps |
| Audio Bit Rate | (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, |
| Protocols | SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP Password protection, complicated password, HTTPS encryption, IP address filter, |
| Security | Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface Up to 32 users |
| User/Host | 3 user levels: administrator, operator, and user NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), |
| Network Storage | Together with high-end memory card, memory card encryption and health detection are supported. |
| Client | NVMS V3, LTS Connect, XVMS Plug-in required live view: IE 11, |
| Web Browser | Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ |
| Image | |
| Image Parameters Switch | Yes |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Settings | Rotate mode |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 8 programmable polygon privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10 Mbps/100 Mbps self-adaptive Ethernet port Built-in Microphone: Arrayed dual-microphone 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input |
| Audio | impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Reset Key | Yes |
| Event | Motion detection (support alarm triggering by specified target types (human and |
| Basic Event | vehicle)), video tampering alarm, exception |
| Smart Event | Face detection Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm |
| Linkage | output, trigger recording, trigger capture |
| Deep Learning Function | Line crossing, intrusion |
| Perimeter Protection | Support alarm triggering by specified target types (human and vehicle) |
| General | 12 VDC " 25%, 0.88 A, max. 10.56 W, "5.5 mm coaxial power plug, reverse polarity |
| Power | protection, PoE: IEEE 802.3af, Class 3, max. 12.5 W |
| Material | Metal |
| Dimension | "5.4" " 4.8" ("138.6 mm " 123 mm) |
| Package Dimension | 6.7" " 6.7" " 6.3" (170 mm " 170 mm " 160 mm) |
| Weight | Approx. 1.9 lb (860 g.) |
| With Package Weight | Approx. 2.5 lb (1140 g.) |
| Storage Conditions | -30 "C to 60 "C (-22 "F to 140 "F). Humidity 95% or less (non-condensing) |
| Startup and Operating | -30 "C to 60 "C (-22 "F to 140 "F). Humidity 95% or less (non-condensing) |
| Conditions | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, |
| Language | Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding |
| Approval | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, |
| EMC | RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, |
| Safety | BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 CE-RoHS: 2011/65/EU, |
| Environment | WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013, IK10: IEC 62262:2002 |
