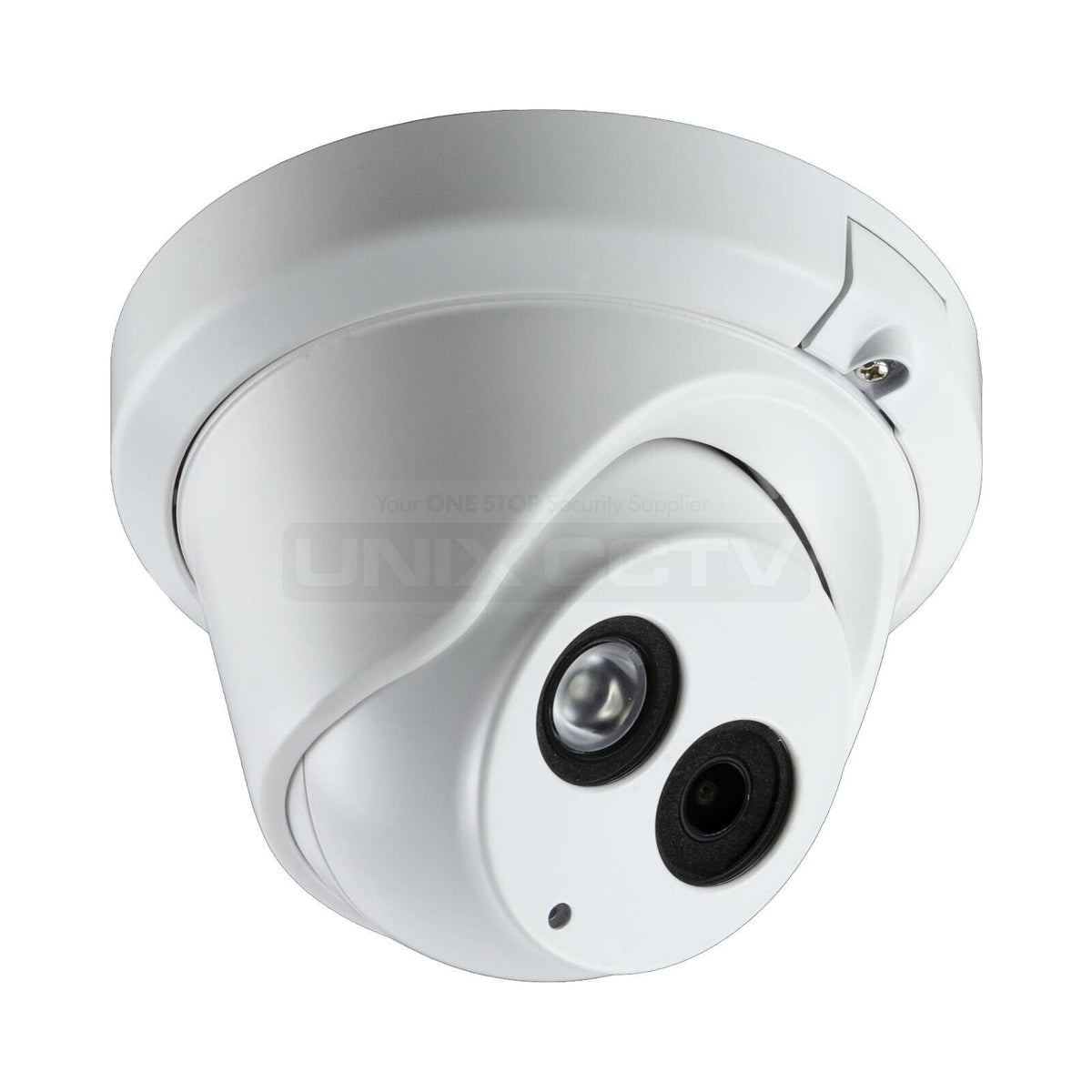

Eyemax NIU-B5032 5MP IR Outdoor Turret IP Camera, H.265, Fixed Lens, EXIR range up tp 100ft, IP67, 12VDC
Sale price
$81.75
Regular price
$105.00
1/2.5″ (5 MP) Progressive Scan CMOS • Up to 2560 × 1944 Resolution • 2.8 mm Fixed Lens • EXIR 2.0 Range Up to 100 ft (30 m) • H.265 / H.264 • IP67 Protection • Durable Metal Housing • 12V DC
Mount Accessories
| Junction Box (White) | CM JB01-B-W |
| Junction Box (Dark Grey) | CM JB01-B-B |
- 1/2.5" (5 MP) Progressive Scan CMOS
- Up to 2560 × 1944 Resolution
- 2.8 mm Fixed Lens
- EXIR 2.0 Range Up to 100 ft (30 m)
- H.265 / H.264
- IP67 Protection
- Durable Metal Housing
- White Finish
- 12V DC ±25% (PoE 802.3af),maximum 5 W
| Camera | |
|---|---|
| Image Sensor | 1/2.5" (5 MP) progressive scan CMOS |
| Minimum Illumination | Color: 0.8 lux @ (f/1.6, AGC on), 0 lux with IR |
| Shutter Speed | 1/3 s to 1/100, 000 s |
| Auto-Iris | No |
| Day/Night | IR cut filter |
| Digital Noise Reduction | 3D DNR |
| Angle Adjustment (Bracket) | Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360° |
| Lens | |
| Focal Length | 2.8 mm |
| Aperture | f/1.6 |
| Focus | Manual |
| FOV | 2.8 mm, horizontal FOV 103°, vertical FOV 58°, diagonal FOV 123° |
| Lens Mount | M12 |
| IR | |
| IR Range | Up to 100 ft (30 m) |
| Wavelength | 850 nm |
| Maximum Resolution | 2560 × 1944 |
| Main Stream | 30 fps (2560 × 1944, 2560 × 1440, 1920 × 1080) |
| Sub-Stream | 30 fps (704 × 576，640 × 480, 640 × 360, 352 × 288) |
| Image Enhancement | BLC, 3D DNR |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser |
| Day/Night Switch | Day / Night / Auto / Schedule |
| Network | |
| Network Storage | Supports local storage |
| Alarm Trigger | Motion detection, network disconnected, IP address conflict, illegal login |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6 |
| General Function | One-key reset, anti-flicker, two streams, mirror, password protection, privacy mask, IP address filter |
| API | ONVIF |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users; two levels: administrator and user |
| Web Browser | IE 8+ |
| Interface | |
| Communication Interface | 1-port RJ-45 10M/100M self-adaptive Ethernet port |
| SVC | H.264 and H.265 encoding |
| General | |
| Operating Conditions | −10° to 50° C; humidity: 95% or less (non-condensing) |
| Power Supply | 12V DC ±25%, Φ5.5 mm coaxial power plug; PoE (802.3af, class 3) |
| Power Consumption and Current | 12V DC, 0.4 A, maximum: 5 W; PoE (802.3af, 37 V to 57 V), 0.2 A to 0.1 A, maximum: 6.5 W |
| Protection Level | IP67, TVS 2000V lightning protection, surge protection and voltage transient protection |
| Material | Metal |
| Dimensions | ∅127.823 × 83.41 mm |
| Weight | 1.20 lbs (550 g) |
