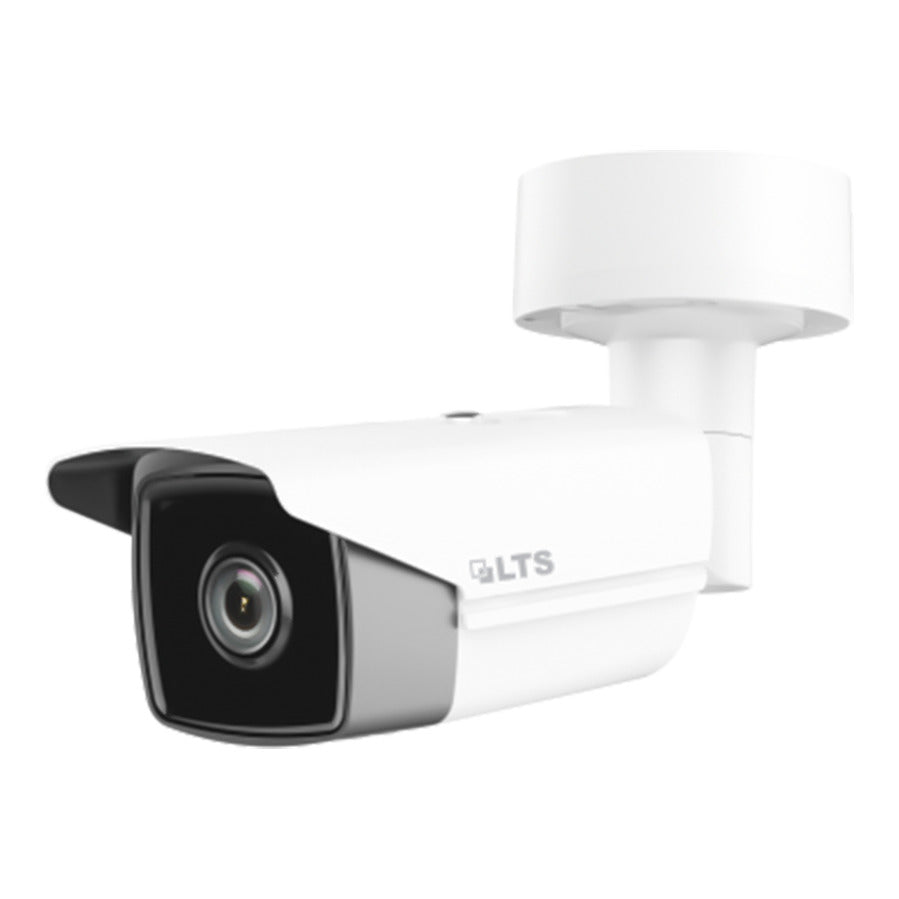

LTS CMIP9342W-28M Platinum Matrix IR Bullet Network IP Camera 4MP - 2.8mm
Sale price
$186.51
Regular price
$255.00
Skip to product information
LTS CMIP9342W-28M Platinum Matrix IR Bullet Network IP Camera 4MP - 2.8mm
Sale price
$186.51
Regular price
$255.00
With Platinum Matrix IR Bullet Network IP Camera 4MP - 2.8mm you can develop a strong security system for your home. It has Matrix IR LED 2.0 that gives clear recording in the dark areas. It comes with 1/3"Progressive Scan CMOS Image Sensor that helps to capture the moving objects. It features micro SD card slot up to 128GB to record videos and images efficiently.
- 4MP High Definition
- Up to 2688x1520@30fps
- 2.8mm Fixed Lens
- 0.018 Lux @ F1.6
- Matrix IR 2.0, IR Range up to 100 feet
- H.265, H.265+, H.264, H.264+ Ready
- True WDR 120dB
- IP67
- MicroSD Slot up to 128GB
- DC 12V, PoE
- Junction Box Included
| Model | CMIP9342W-28M | |
| Camera Series | Platinum Series | |
| Camera Resolution | 4MP | |
| Camera Technology | IP / Network | |
| Camera Housing | Bullet | |
| Featured Product | No | |
| Camera | ||
| Image Sensor | 1/3" Progres s ive S can CMOS | |
| Min. Illumination | 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR | |
| Shutter Speed | 1/3 s to 1/100,000s | |
| Lens | 2.8mm: horizontal FOV:98, vertical FOV: 55, diagonal FOV: 114 | |
| Lens Mount | M12 | |
| Day & Night | IR cut filter | |
| DNR | 3D DNR | |
| Wide Dynamic Range | 120dB | |
| Angle Adjustment | Pan:0 ~ 360, T ilt: 0 ~ 100, Rotation: 0 ~ 360 | |
| Compression Standard | ||
| Video Compression | Main stream: H.26 5/H.264 Sub stream: H.265/H.26 4/MJPEG Third stream: H.26 5/H.264 |
|
| H.264 Type | Main Profile / High Profile | |
| H.264 Zip+ | Support | |
| H.265 | Main Profile | |
| H.265+ | Support | |
| Video Bit Rate | 32 Kbps ~ 16 Mbps | |
| Image | ||
| Max. Resolution | 2560 1440 | |
| Frame Rate | 50Hz: 20 fps (3840 2160), 25 fps (2560 1920, 2560 1440, 1920 1080, 1280 720) 60Hz: 20 fps (3840 2160), 30 fps (2560 1920, 2560 1440, 1920 1080, 1280 720) |
|
| Sub Stream | 50Hz: 25fps (640 480, 640 360, 320 240) 60Hz: 30fps (640 480, 640 360, 320 240) | |
| Third Stream | 50Hz: 25fps (1280720, 640360, 352288) 60Hz: 30fps (1280720, 640360, 352240) | |
| Behavior Analysis | Line crossing detection, intrusion detection | |
| Face Detection | Yes | |
| Network | ||
| Network Storage | Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR | |
| Alarm Trigger | Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error | |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | |
| General | One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter | |
| Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI | |
| Interface | ||
| Communication Interface | 1 RJ45 10M/100M Ethernet port | |
| Reset | Yes | |
| General | ||
| Working Temperature/Humidity | -22 F ~ 140F (-30 C ~ 60 C) Humidity 95% or less (non-condensing |
|
| Power Supply | DC12V 25%, PoE (802.3af) | |
| Power Consumption | DC 12V, 0.6A, max. 7.5W | |
| IR Range | Approx. 165ft(50 meters) | |
| Weather Proof Ratings | IP67 | |
| Dimensions | Φ4.13″ 11.80″ (Φ105 299.7 mm) | |
| Weight | 2.7lbs (1200 g) | |
