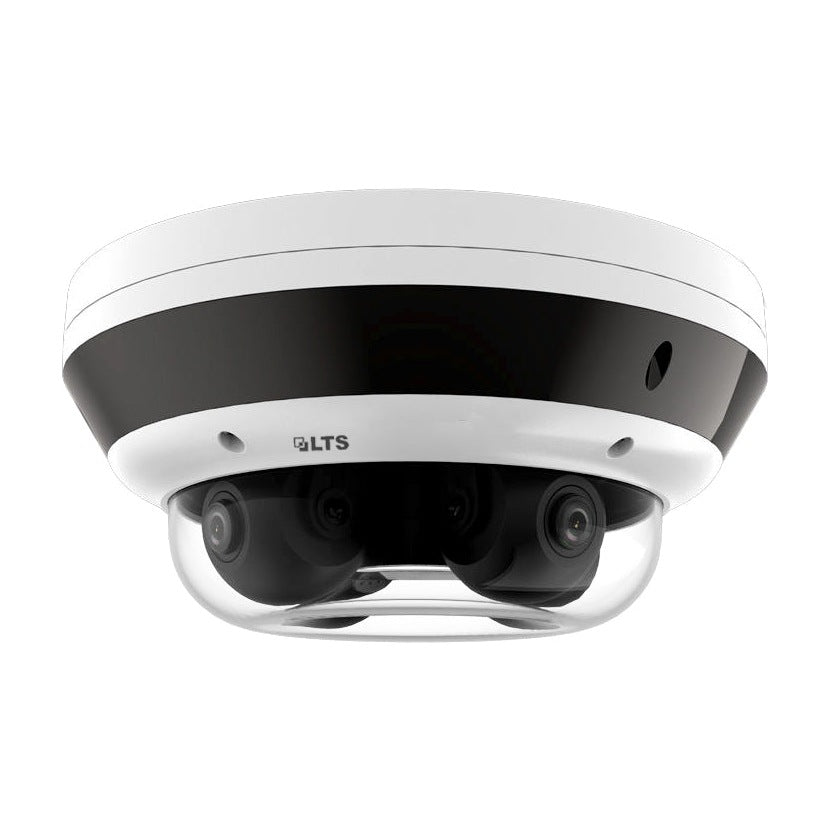

LTS CMIP7553W4-SZ8 5MPx4 Multi-lens IP Camera - Compact Size
Sale price
$1,663.44
Regular price
$2,275.00
This is a compact-sized IP Camera with a varifocal 2.8 mm to 8 mm lens and a 5-megapixel resolution. Its 2560 x 1920 @ 25fps ensures high-quality imaging and the 1/2.7" Progressive Scan CMOS sensor increases the read speed. This camera has up to a 98 ft IR range for surveillance and a dome-shaped IP67 and IK10 housing for safety.
- 5MP
- Varifocal lens, 2.8 to 8 mm
- 1/2.7" Progressive Scan CMOS
- 2560 x 1920 @ 25fps
- H.265, H.264, H.265+, H.264+
- Up to 98ft(30m) IR range
- 4 Flexible lens
- 120dB WDR
- IP67, IK10
| Model | CMIP7553W4-SZ8 |
| Camera Series | Platinum Series |
| Camera Resolution | 5MP |
| Camera Technology | IP / Network |
| Camera Housing | Dome |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | Color: 0.0125 Lux @ (F1.9, AGC ON); B/W: 0.0025 Lux @ (F1.9, AGC ON) |
| Shutter Speed | 1 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day & Night | IR cut filter |
| WDR | 120 dB |
| Angle Adjustment | Pan: -60° to 60°, tilt: 10° to 90° |
| Lens | |
| Lens Type | Varifocal lens, 2.8 to 8 mm |
| Aperture | F1.9 |
| Focus | Manual, semi-auto |
| FOV | Horizontal FOV 100° to 49°, vertical FOV 72° to 36.4°, diagonal FOV 134.4° to 61.4° |
| Lens Mount | ø14 |
| Illuminator | |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| Video | |
| Max. Resolution | 2560 1920 |
| Video Stream | 3 defined streams |
| Main Stream | 50Hz: 25fps (2560 1920, 2048 1536, 1920 1080, 1280 720) 60Hz: 24fps (2560 1920, 2048 1536,1920 1080, 1280 720) |
| Sub Stream | 50Hz: 25fps (704 576, 640 480) 60Hz: 24fps (704 480, 640 480) |
| Third Stream | 50Hz: 6fps (1920 1080, 1280 720, 704 576, 640 480) 60Hz: 8fps (1920 1080, 1280 720, 704 480, 640 480) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Main stream support |
| H.265 Type | Main Profile |
| H.265+ | Main stream support |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Scalable Video Coding (SVC) | H.264 encoding |
| Audio (-S) | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM) |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Smart Feature-Set | |
| Smart Event | Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Scene change detection, audio exception detection, defocus detection |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Linkage Method | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture |
| Region of Interest | 4 fixed regions and dynamic face tracking for each stream |
| Image | |
| Image Enhancement | BLC, HLC, 3D DNR, Defog, EIS |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Target Cropping | Yes |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In |
| Picture Overlay | LOGO picture can be overlaid on video with 128 128 24 bit bmp format |
| SNR | ≥ 52dB |
| Network | |
| Network Storage | microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/ HTTPS, WSSE and digest authentication for ONVIF |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Client | NVMS V3, LTS Connect |
| Web Browser | IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11 |
| Interface | |
| Audio (-S) | 1 input (line in), 1 output (line out), mono sound |
| Communication Interface | 1 RJ45 10M/100M/1000M Ethernet port; built-in RS232 1 RS-485 interface (half duplex, Pelco-P, Pelco-D, self-adaptive) |
| Alarm (-S) | 2 inputs, 2 outputs (max. 24 VDC, 1A) |
| On-board Storage | Built-in microSD/SDHC/SDXC slot, up to 128 GB |
| General | |
| Firmware Version | V5.5.32 |
| Web Client Language | 32 languages; English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| General Function | Anti-flicker, 3 streams, heartbeat, mirror, privacy masks |
| Reset | Reset via reset button on camera body, web browser and client software |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC± 20%, reverse polarity protection; three-core terminal block 24 VAC ± 20%; PoE (802.3at, class 4) |
| Power Consumption and Current | 12 VDC, 1.8 A, 22 W 24 VAC, 1.4 A, 22 W PoE (802.3at, 42.5 to 57 VDC), 0.44 to 0.33 A, 19 W, class 4 |
| Material | Bubble & IR cover: plastic, camera: metal |
| Dimensions | Camera: ø250 113 mm (9.8" 4.4") Package: 336 261 293 mm (13.2" 10.3" 11.5") |
| Weight | Camera: 2.125 kg (4.7 lb); with package: 3.899 kg (8.6 lb) |
| Approval | |
| EMC | 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015 |
| Safety | UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015 |
| Chemistry | 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006 |
| Protection | Ingress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013) |
