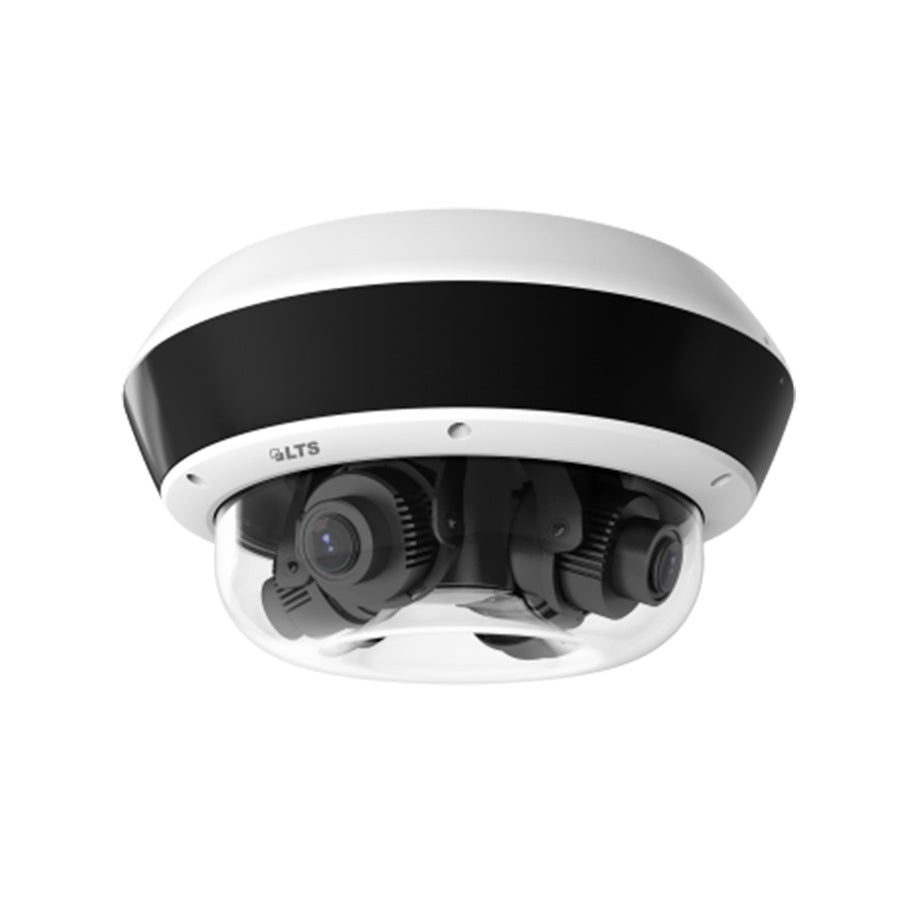

LTS CMIP7553W4-SZ Matrix IR Flexible Panorama Network Camera
Sale price
$1,663.44
Regular price
$2,275.00
This Matrix IR Flexible Panorama Network Camera is perfect for large auditoriums as it comes with has 4 flexible lenses of 5MP each. Its motorized lenses and matrix IR bullets have range up to 2.8 - 12mm and 100 feet respectively, which ensures security throughout day and night. The quality of 1920 x 1080 pixels videos is improved by true 120dB WDR technology.
- 5MP x 4 Flexible Lens
- 2.8 - 12mm Motorized Lens
- 1920 x 1080P@30fps
- Advanced Compression H.265/H.265+
- True WDR 120dB
- MicroSD Card Slot up to 128GB
- Audio & Alarm In and Out
- IP67, IK10
| Model | CMIP7553W4-SZ |
| Camera Series | Platinum Series |
| Camera Resolution | 5MP |
| Camera Technology | IP / Network |
| Camera Housing | Dome |
| Featured Product | No |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @ (F1.6, AGC ON) B/W: 0.003 Lux @ (F1.6, AGC ON) 0 Lux with IR on |
| Shutter Speed | 1 s - 1/100,000 s |
| Auto-Iris | No |
| Day & Night | IR cut filter with auto switch |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | True WDR 120dB |
| 3-Axis Adjustment | Four flexiblelensin one track, slide range: -180 to 180, tilt: 0 to 135,rotate:0 to 355 |
| Lens | |
| Focal Length | 2.8mm to 12mm |
| Aperture | F1.6 |
| Field of View | Horizontal field of view: 30to 101 Vertical field of view: 22.4to 73 Diagonal field of view: 37 to 137 |
| Lens Mount | ?14 |
| IR | |
| IR Range | 10 m to 30 m |
| Wavelength | 850nm |
| Compression Standard | |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| H.264 / H.264+ Type | Baseline Profile, Main Profile, High Profile/Support |
| H.265 / H.265+ Type | Main Profile/Support |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps(AAC) |
| Smart Feature-set | |
| Behavioral Analysis | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection |
| Exception Detection | Audio exception detection, scene change detection, defocus detection |
| Face Detection | Yes |
| Region of Interest | Support 4 fixed region for each stream |
| Image | |
| Max. Resolution | 2560 x 1920 |
| Main Stream | 50Hz: 25fps (2560 1920, 2048 1536, 1920 1080, 1280 720) 60Hz: 24fps (2560 1920, 2048 1536, 1920 x 1080,1280 x 720) |
| Sub Stream | 50Hz: 25fps (704 576, 640 480) 60Hz: 24fps (704 480, 640 480) |
| Third Stream | 50Hz: 6fps (1920 1080, 1280 720, 704 576, 640 480) 60Hz: 8fps (1920 1080, 1280 720, 704 480, 640 480) |
| Image Enhancement | BLC, 3D DNR, EIS |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness, and white balance are adjustable by client software or web browser |
| SVC | H.264 Support |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In (-S) |
| Picture Overlay | LOGO picture can be overlaid on video with 128 x 128 24bit BMP format |
| Network | |
| Network Storage | Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP |
| General Function | One-key reset, anti-flicker, mirror, heartbeat, password protection, privacy mask, watermark, IP address filter |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
| Web Browser | IE8+, Chrome31-44, Firefox 30.0 - 51 |
| Interface | |
| Audio | 1-ch 3.5 mm input (line in/Mic in), 1-ch 3.5mm output, dual-track, stereo |
| Communication Interface | 1 RJ45 10M/100M/1000M Ethernet port 1 RS-485 interface |
| On-board Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| Audio | |
| Environment Noise Filtering | Support |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| General | |
| Operating Conditions | -30 C to 60 C (-22 F to 140 F). -H: -40 C to 60 C (-40 F to 140 F) Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC 20%, 24 VAC 20% (for customization), three-core terminal block, -IZ, -IZHS/NFC: Hi-PoE: 42.5 VDC to 57 VDC, -Z: PoE (802.3at) |
| Power Consumption and Current | 12 VDC 20%: max. 28 W/2.3 A 24 VAC 20%, max. 50 to 60 Hz/2.5 A (for customization) - IZ, -IZHS/NFC: Hi-PoE: 42.5 VDC to 57 VDC, max. 34W/0.9 A to 0.6 A - Z: PoE (802.3at): 42.5 VDC to 57 VDC, max. 17W |
| Protection Level | IP67, IK10 |
| Material | Aluminum alloy, engineering plastics |
| Dimensions | Camera: 290 mm 145.5 mm ( 11.42" 5.73") Package: 453 mm 393 mm 385 mm (17.8" 15.47" 15.16") |
| Weight | Camera: Approx. 4.7 kg (10.3 lb.) With package: Approx. 7.7 kg (16.8 lb.) |
