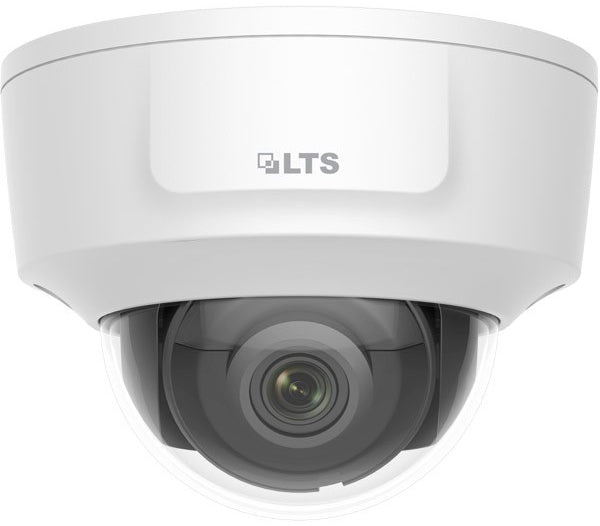

LTS CMIP7382W-28SH 8 MP IR Fixed Dome Network Camera

LTS CMIP7382W-28SH 8 MP IR Fixed Dome Network Camera

$201.30 $275.00

The 8 MP IR Fixed Dome Network Camera provides 4 behavior analyses and can easily detect the face. It features a 2.8 mm fixed lens and provides 3840 2160@20fps video quality. This network camera offers 3-Axis adjustment that gives a clear view of the objects from different angles. It has a built-in micro card slot that supports SD/SDHC/SDXC card slot and provides storage up to 128 GB.

  • 1/2.5" Progressive Scan CMOS
  • 3840 2160@20fps
  • 2.8 mm fixed lens
  • Color: 0.028 Lux @(F2.0, AGC ON), 0 Lux with IR
  • H.265, H.264
  • 120dB WDR
  • 4 Behavior analyses, and face detection
  • BLC/3D DNR/ROI/HLC
  • IK10
  • Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
  • 3-Axis adjustment
  • IR range: Up to 98ft(30 m)
Model CMIP7382W-28SH
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination Color: 0.028 Lux @(F2.0, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
WDR 120 dB
Angle Adjustment Pan: 0 to 355, tilt: 0 to 75, rotate: 0 to 355
Lens
Lens Type 2.8 mm
Aperture F2.0
FOV 2.8 mm, horizontal FOV: 102, vertical FOV: 53, diagonal FOV: 124
Lens Mount M12
Illuminator
IR Range Up to 98ft(30 m)
Wavelength 850 nm
Video
Max. Resolution 3840 2160
Main Stream 50Hz: 20fps (3840 2160), 25fps (3072 1728, 1920 1080, 1280 720)
60Hz: 20fps (3840 2160, 3072 1728, 1920 1080, 1280 720)
Sub-Stream 50Hz: 25fps (640 480, 640 360, 320 240)
60Hz: 20fps (640 480, 640 360, 320 240)
Video Compression Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
H.264 Type Main Profile/High Profile
H.264+ No
H.265 Type Main Profile
H.265+ No
Video Bit Rate 32 Kbps to 16 Mbps
* When the main stream resolution is 3840 2160, max frame rate is 20 fps for all streams.
Audio
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Smart Feature-Set
Smart Event Line crossing detection, intrusion detection, unattended baggage detection, object removal detection, face detection, scene change detection
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Linkage Method Upload to FTP/memory card, notify surveillance center, send email
Face Detection Yes
Linkage Method Trigger recording: memory card, network storage, pre-record and post-record
Trigger captured pictures uploading: FTP, HTTP, NAS, Email
Trigger notification: HTTP, ISAPI, Email
Region of Interest 1 fixed region for main stream and sub-stream
Image Enhancement BLC, HLC, 3D DNR
Image Settings Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In
Network
Network Storage microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR memory card encryption and health detection are supported.
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users, 3 levels: administrator, operator and user
Web Browser Plug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local Service: Chrome 41.0+, Firefox 30.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Audio 1 input (line in/mic in, terminal block), 1 output ( two-core terminal block), mono sound
Alarm 1 input, 1 output (max. 12VDC, 30 mA)
Video Output 1 HDMI, type D, female plug (-M)
On-board storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
HDMI Output 1920 1080 @50/60 fps(50/60 Hz), 1280 720 @50/60 fps(50/60 Hz)
General
General Function Anti-flicker, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
Reset Reset via reset button on camera body, web browser and client software
Startup and Operating Conditions IR on: -10 ℃ to 40 ℃ (14 ℉ to 104 ℉), humidity 95% or less (non-condensing)
IR off: -10 ℃ to 50 ℃ (14 ℉ to 122 ℉), humidity 95% or less (non-condensing)
Storage Conditions -10 ℃ to 40 ℃ (14 ℉ to 104 ℉), humidity 95% or less (non-condensing)
Power Supply Socket style interface: 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af, class 3)
Pigtail style interface: 12 VDC ± 25%, two-core terminal block; reverse polarity protection; PoE (802.3af, class 3)
Power Consumption and Current 12 VDC, 0.6 A, max. 7 W; PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 8. 5W
Material Metal
Dimension Camera: Φ 119 90 mm mm (Φ4.7" 3.5")
Weight Camera: Approx. 520 g (1.1 lb.)
With package: Approx. 750 g (1.7 lb.)
Approval
EMC 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
Safety UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
Chemistry 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
Protection Ingress protection: IP42(IEC 60529-2013), IK10 (IEC 62262:2002)
