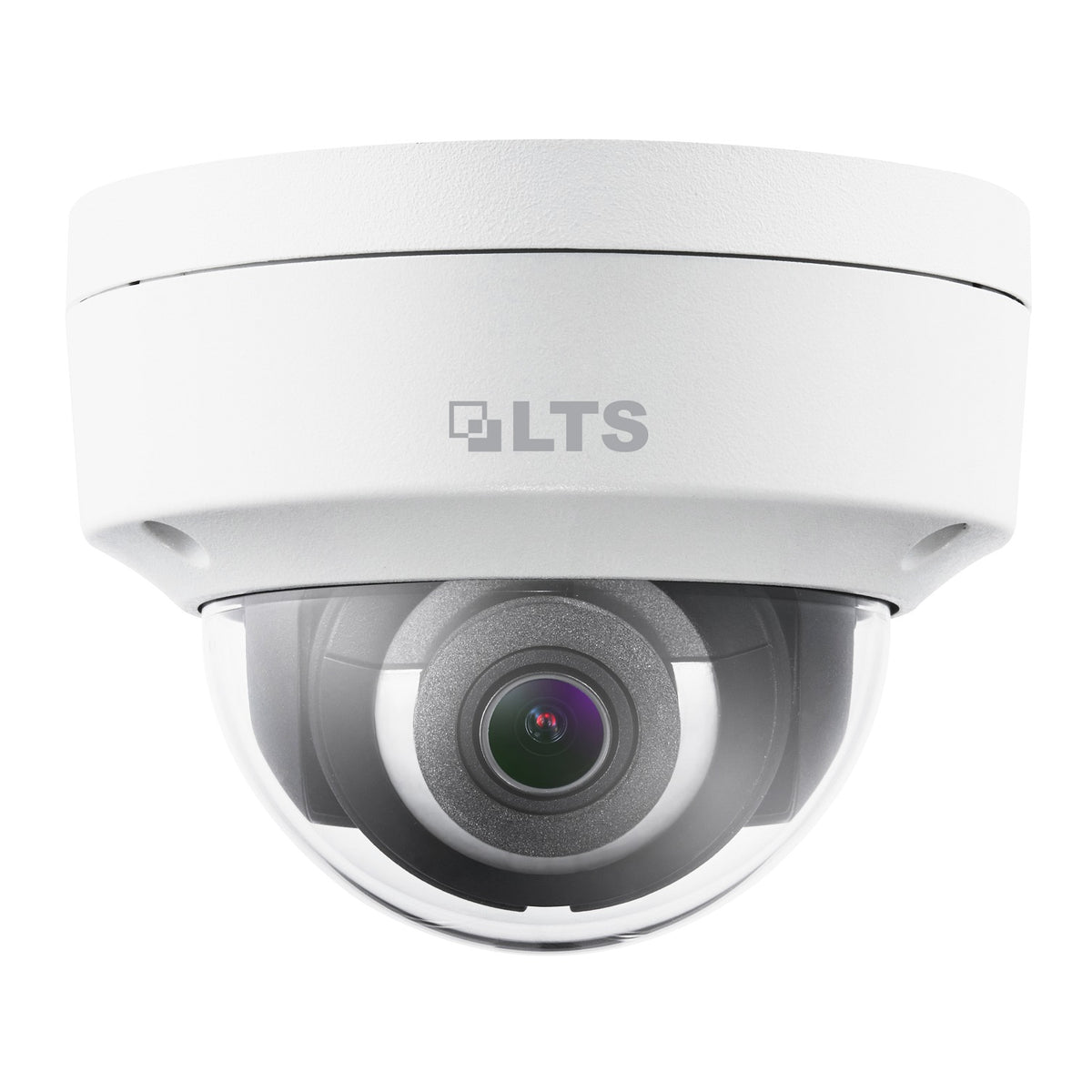

LTS CMIP7382NW-28M Platinum Network Vandal Dome IP Camera 8MP - 2.8mm
Sale price
$201.30
Regular price
$275.00
Platinum Network Vandal Dome IP Camera 8MP - 2.8mm requires DC 12V supply as it is a PoE enabled device. It offers excellent recording at night with its Matrix IR 2.0 that has IR Range up to 100 feet. With H.265, H.265+, H.264, H.264+ Ready, it has high image compression quality. Its 8MP/4K High Definition camera has recording resolution Up to 3840x2160@15fps.
- 8MP/4K High Definition
- Up to 3840x2160@15fps
- 2.8mm Fixed Lens
- Matrix IR 2.0
- IR Range up to 100 feet
- H.265, H.265+, H.264, H.264+ Ready
- True WDR 120dB
- IP67 & IK10
- MicroSD Slot up to 128GB
- DC 12V, PoE
| Model | CMIP7382NW-28M | |
| Camera Series | Platinum Series | |
| Camera Resolution | 4K | |
| Camera Technology | IP / Network | |
| Camera Housing | Dome | |
| Featured Product | No | |
| Camera | ||
| Image Sensor | 1/2.5" Progressive Scan CMOS | |
| Min. Illumination | 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR | |
| Shutter Speed | 1/3 s to 1/10,000 s | |
| Lens | 2.8mm, horizontal FOV: 102, vertical FOV: 53, diagonal FOV: 124 | |
| Lens Mount | M12 | |
| Day & Night | IR cut filter | |
| DNR | 3D DNR | |
| Wide Dynamic Range | 120dB | |
| Angle Adjustment | Pan:0 ~ 355, Tilt: 0 ~ 75, Rotation: 0 ~ 355 | |
| Compression Standard | ||
| Video Compression | Main stream: H.265/H.264 Sub stream: H.26 5/H.264/MJPEG Third stream: H.265/H.264 |
|
| H.264 Type | Main / High Profile | |
| H.265 Type | Main Profile | |
| Video Bit Rate | 32 Kbps ~ 16 Mbps | |
| Dual Stream | Support | |
| Image | ||
| Max. Resolution | 3840 2160 | |
| Main Stream | 50Hz: 20 fps (3840 2160), 25 fps (2560 1920, 2560 1440, 1920 1080, 1280 720) 60Hz: 20 fps (3840 2160), 30 fps (2560 1920, 2560 1440, 1920 1080, 1280 720) | |
| Sub Stream | 50Hz: 25fps (640 360, 352 288)60Hz: 30fps (640 360, 352 240) | |
| Others | Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software | |
| Network | ||
| Network Storage | Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR | |
| Alarm Trigger | Motion Detection, VideoTampering, Network Disconnected, IP Address Conflicted, Illegal Login, HDD Full, HDD error | |
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP, IGMP,802.1X,QoS,IPv6, Bonjour | |
| General | One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter | |
| Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI | |
| Interface | ||
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port | |
| Reset | Built-in microSD/SDHC/SDXC slot, up to 128 GB | |
| General | ||
| Working Temperature /Humidity |
-22 F ~+140 F(-30 C ~ +60 C ) Humidity 95% or less (non-condensing) |
|
| Power Supply | DC 12V 25%,PoE(802.3af) | |
| Power Consumption | Max. 5.5W (Max. 7.5W with ICR on) | |
| IR Range | Up to 100ft (30m) | |
| Weather Proof Ratings | IP67 | |
| Impact Protection | IK10 | |
| Dimensions | Φ4.4″ 3.2″ (Φ111 82.4 mm) | |
| Weight | 1.1lbs (500g) | |
