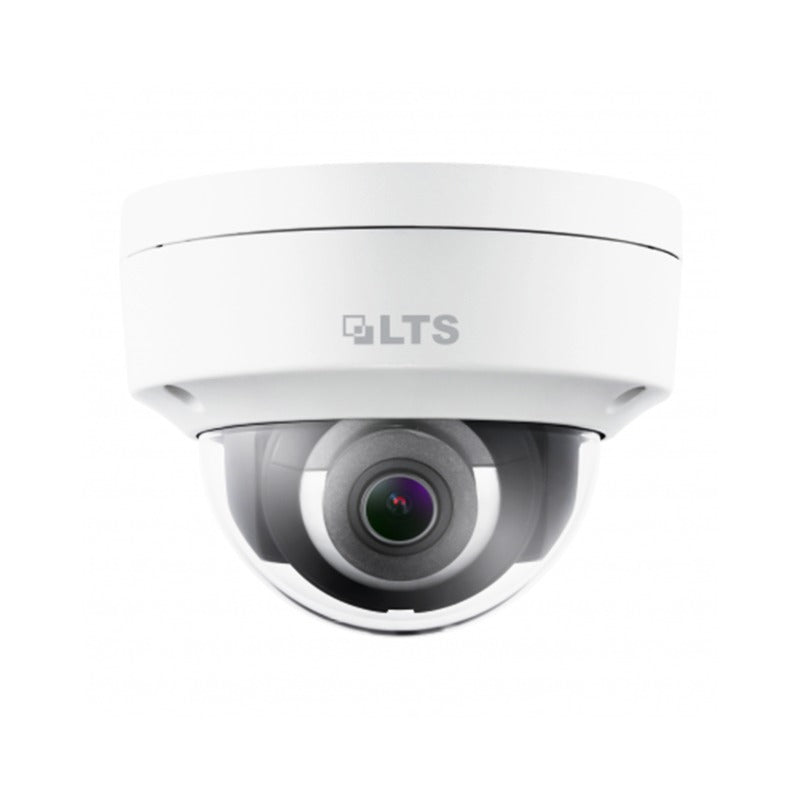

LTS CMIP7342W-28M Platinum Network Vandal Dome IP Camera 4MP - 2.8mm
Sale price
$140.59
Regular price
$190.00
CMIP7342W-28M Platinum Network Vandal Dome IP Camera 4MP - 2.8mm comes with an alarm function that works in case of Motion Detection, Video Tampering, Network Disconnected, IP Address Conflicted, Illegal Login, HDD error. It offers maximum image resolution of 2560 1440 @30fps. It has Micro SD card Slot up to 128GB which can store large sized videos and images.
- 4MP High Definition
- 2560x1440@30fps
- 2.8mm Fixed Lens
- 0.018 Lux @ F1.6
- Matrix IR 2.0, IR Range up to 100 feet
- H.265, H.265+, H.264, H.264+ Ready
- True WDR 120dB
- IP67 & IK10
- MicroSD Slot up to 128GB
- DC 12V, PoE
| Model | CMIP7342W-28M | |
| Camera Series | Platinum Series | |
| Camera Resolution | 4MP | |
| Camera Technology | IP / Network | |
| Camera Housing | Dome | |
| Featured Product | No | |
| Camera | ||
| Image Sensor | 1/3" Progres s ive S can CMOS | |
| Min. Illumination | 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR | |
| Shutter Speed | 1/3 s to 1/10,000 s | |
| Lens | 2.8 mm: horizontal FOV:98, vertical FOV: 55, diagonal FOV: 114 | |
| Lens Mount | M12 | |
| Day & Night | IR cut filter | |
| DNR | 3D DNR | |
| Wide Dynamic Range | 120dB | |
| Angle Adjustment | Pan:0 ~ 360, T ilt: 0 ~ 75, Rotation: 0 ~ 360 | |
| Compression Standard | ||
| Video Compression | Main stream: H.265+/H.265/H.264 Zip+/H.264 Sub stream: H.265+/H.265/H.264 Zip+/H.264/MJPEG Third stream: H.265+/H.265/H.264 Zip+/H.264 |
|
| H.264 / H.264+ Type | Main / High Profile | |
| H.265 / H.265+ Type | Main Profile / Sub-stream support | |
| Video Bit Rate | 32 Kbps ~ 16 Mbps | |
| Dual Stream | Support | |
| Image | ||
| Max. Resolution | 2560 1440 | |
| Main Stream | 50Hz:25fps (25601440,23041296,19201080) 60Hz: 30fps (25601440,23041296,19201080) | |
| Sub Stream | 50Hz: 25fps (640 360, 352 288)60Hz: 30fps (640 360, 352 240) | |
| Third Stream | 50Hz: 25fps (1280720, 640360, 352288) 60Hz: 30fps (1280720, 640360, 352240) | |
| Others | Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software | |
| Behavior Analysis | Line Crossing Detection, Intrusion Detection | |
| Network | ||
| Network Storage | Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR | |
| Alarm Trigger | Motion Detection, VideoTampering, Network Disconnected, IP Address Conflicted, Illegal Login, HDD Full, HDD error | |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 | |
| General | One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter | |
| Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI | |
| Interface | ||
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port | |
| Reset | Built-in microSD/SDHC/SDXC slot, up to 128 GB | |
| SVC | H.264 and H.265 encoding | |
| General | ||
| Working Temperature /Humidity |
-22 F ~+140 F(-30 C ~ +60 C ) Humidity 95% or less (non-condensing) |
|
| Power Supply | DC 12V 25%,PoE(802.3af) | |
| Power Consumption | Max.6W | |
| IR Range | Up to 100ft (30m) | |
| Weather Proof Ratings | IP67 | |
| Impact Protection | IK10 | |
| Dimensions | Φ4.4″ 3.2″ (Φ111 82.4 mm) | |
| Weight | 1.3lbs (610g) | |
