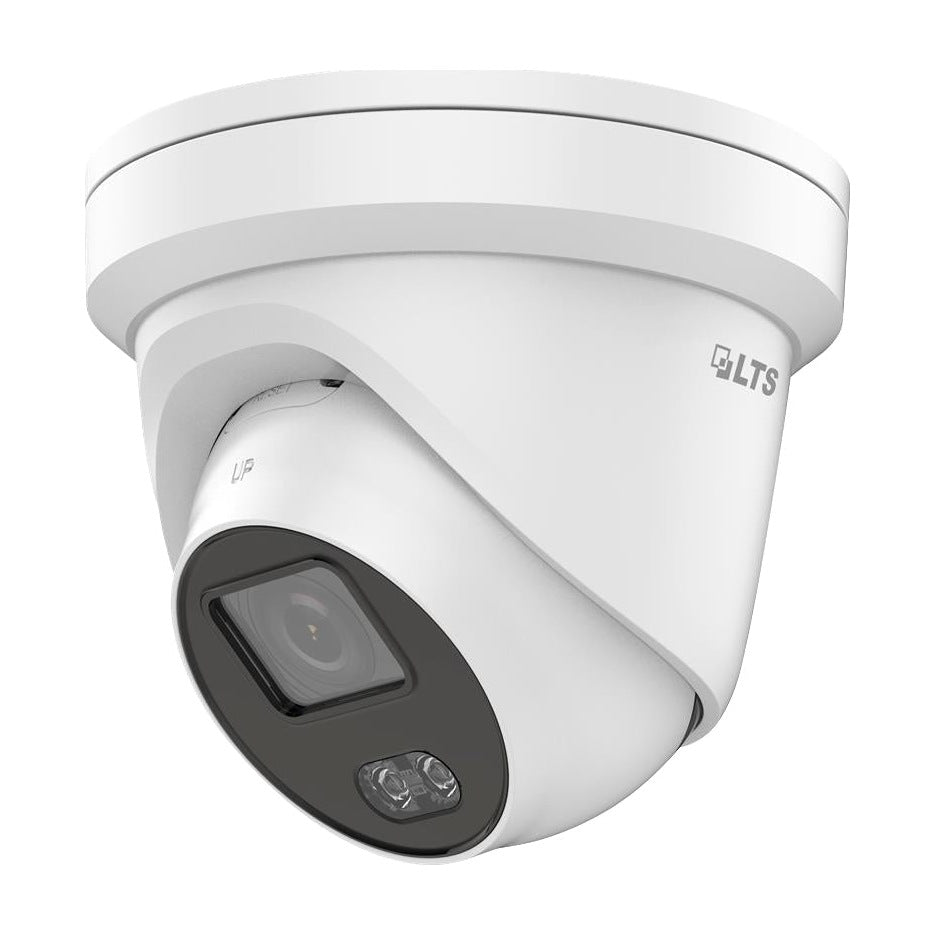

LTS CMIP3C42W-28M 4 MP Color247 2.8mm Fixed Lens Turret Network Camera White
Sale price
$256.45
Regular price
$335.00
Skip to product information
LTS CMIP3C42W-28M 4 MP Color247 2.8mm Fixed Lens Turret Network Camera White
Sale price
$256.45
Regular price
$335.00
This 4 MP Color247 2.8mm Fixed Lens Turret Network Camera White is a professional camera through which you can keep a track of everything in your absence. With the 2.8mm fixed lens, this camera offers a clear and crisp view. It features a built-in micro slot for SD/SDHC/SDXC and provides a storage of up to 128 GB. This network camera delivers 24-hour colorful video without any hindrance.
- Max. 2560 1440 @24fps
- 2.8 mm fixed lens
- H.265+, H.264+
- 120dB WDR
- 0.0014 @ F1.0 (1/30 s, AGC ON), 0.002 @F1.2 (1/30 s, AGC ON), 0 Lux with LED on
- 12 VDC & PoE (802.3af, class 3)
- Built-in micro SD/SDHC/SDXC slot, up to 128G
- IP67
- BLC/3D DNR/HLC/Defog
- 24-hour colorful video
| Model | CMIP3C42W-28M |
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination | 0.0014 @ F1.0 (1/30 s, AGC ON), 0.002 @ F1.2 (1/30 s, AGC ON), 0 Lux with LED on |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Focal length | 4 mm |
| Focus | Fixed |
| Aperture | F1.0 |
| FOV | 2.8 mm, horizontal FOV: 102, vertical FOV: 51, diagonal FOV: 125 |
| Lens Mount | M16 |
| Auto-Iris | No |
| DNR | 3D DNR |
| Wide Dynamic Range | 120dB |
| 3-Axis Adjustment | Pan: 0 to 355, tilt: 0 to 75, rotate: 0 to 355 |
| Compression Standard | |
| Video Compression | Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Image | |
| Max. Resolution | 2560 1440 |
| Main Stream | 50Hz: 25fps (2560 1440, 1920 1080, 1280 720) 60Hz: 24fps (2560 1440), 30fps (2304 1296, 1920 1080, 1280 720) |
| Sub Stream | 50Hz: 25fps (640 480, 640 360, 320 240) 60Hz: 30fps (640 480, 640 360, 320 240) |
| Third stream | 50Hz: 1fps (1280 720, 640 480, 640 360, 352 288, 320 240) 60Hz: 1fps (1280 720, 640 480, 640 360, 352 288, 320 240) |
| Image Enhancement | BLC/3D DNR/HLC/Defog |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| ROI (Region of Interest) | No |
| Network | |
| Network Storage | Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| General Function | One-key reset, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
| Web Browser | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| SVC | H.265 encoding and H.264 encoding support |
| Smart Feature-set | |
| Behavior Analysis | Line crossing detection, intrusion detection |
| General | |
| Operating Conditions | -30 C to +60 C (-22 F to +140 F), humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) |
| Power Consumption | 12 VDC, 0.5 A, max: 6 W PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max: 7.5 W |
| Visible Light Range | Warm white LEDs (3000K), up to 98ft(30m) |
| Protection Level | IP67 |
| Material | Camera body: Front cover: plastic, back cover: metal Bottom base: plastic |
| Dimensions | Camera: 500 g (1.1 lb.) |
