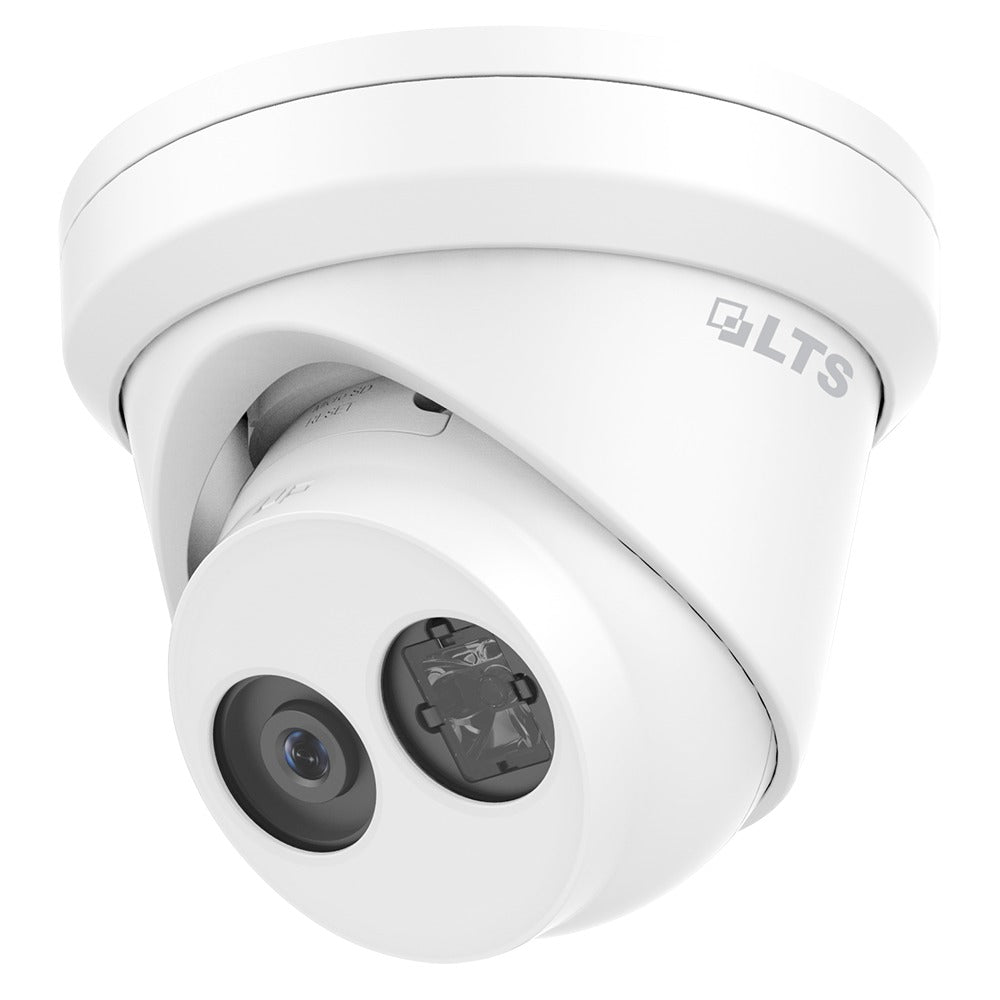

LTS CMIP3382W-28M 8 Megapixel 4KPlatinum Turret Network IP Camera - 2.8mm
Sale price
$222.30
Regular price
$305.00
Skip to product information
LTS CMIP3382W-28M 8 Megapixel 4KPlatinum Turret Network IP Camera - 2.8mm
Sale price
$222.30
Regular price
$305.00
Bring an excellent addition to your surveillance system in the form Platinum Turret Network IP Camera 4K - 2.8mm. With a maximum IR range up to 100 feet, this IP67 ingress protected device comes with 2.8mm fixed lens. It comes with minimum illumination of 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR and 1/2.5" progressive scan CMOS image sensor. The 4K high definition turret camera uses 8MP sensors, the cameras offer recording resolution up to 3840x2160@20fps.
- 8MP/4K High Definition Turret Camera
- 2.8mm Fixed Lens
- Matrix IR 2.0, IR Range up to 100 feet
- Up to 3840x2160@20fps
- H.265, H.265+, H.264, H.264+ Ready
- True WDR 120dB
- IP67
- MicroSD Slot up to 128GB
- DC 12V, PoE
| Model | CMIP3382W-28M | |
| Camera Series | Platinum Series | |
| Camera Resolution | 8MP | |
| Camera Technology | IP / Network | |
| Camera Housing | Turret | |
| Featured Product | No | |
| Camera | ||
| Image Sensor | 1/2.5" Progressive Scan CMOS | |
| Min. Illumination | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR | |
| Shutter Speed | 1/3 s to 1/10,000 s | |
| Lens | 2.8mm | |
| Lens Mount | M12 | |
| Day & Night | IR cut filter with auto switch | |
| DNR | 3D DNR | |
| Wide Dynamic Range | True WDR 120dB | |
| Angle Adjustment | Pan:0 ~ 360, Tilt: 0 ~ 75, Rotation: 0 ~ 360 | |
| Compression Standard | ||
| Video Compression | Main stream: H.265/ H.264 Sub stream: H.265/H.264/ MJPEG Third stream: H.265/ H.264 |
|
| H.265 Type | Main Profile | |
| Video Bit Rate | 32 Kbps ~ 16 Mbps | |
| Dual Stream | Support | |
| Image | ||
| Max. Resolution | 38402160 | |
| Main Stream | 60Hz: 20fps(38402160), 30fps(25601920, 25601440, 19201080, 1280720) 50Hz: 20fps(38402160), 25fps(25601920, 25601440, 19201080, 1280720) |
|
| Sub Stream | 60Hz: 30fps(640360, 352240)/ 50Hz: 25fps(640360, 352288) | |
| Third Stream | 60Hz: 30fps(1280720) / 50Hz: 25fps(1280720) | |
| Others | Saturation, Brightness, Contrast adjustable by client software or web browser, Mirror, BLC, ROI, Dual Stream, Anti-Flicker, Privacy Mask | |
| Network | ||
| Network Storage | NAS (Support NFS,SMB/CIFS), ANR | |
| Alarm Trigger | Motion Detection, Tampering Alarm, Intrusion Detection, Line Crossing Detection, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted | |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE,NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | |
| General | Password Protection, IP Address Filtering, Anonymous Access, Watermark | |
| Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI | |
| Interface | ||
| Communication Interface | 1 RJ45 10M / 100M Ethernet port | |
| Reset | Yes | |
| General | ||
| Working Temperature /Humidity |
-22F ~ 140F (-30C ~ 60C) Humidity 95% or less (non-condensing) |
|
| Power Supply | DC 12V 25%, PoE (802.3af) | |
| Power Consumption | Max. 5.5W (Max. 7.5W with ICR on) | |
| IR Range | Up to 100ft | |
| Weather Proof Ratings | IP67 | |
| Dimensions | 5.01"3.78" (Φ 127.395.9 mm) | |
| Weight | 1.4 lbs (620g) | |
