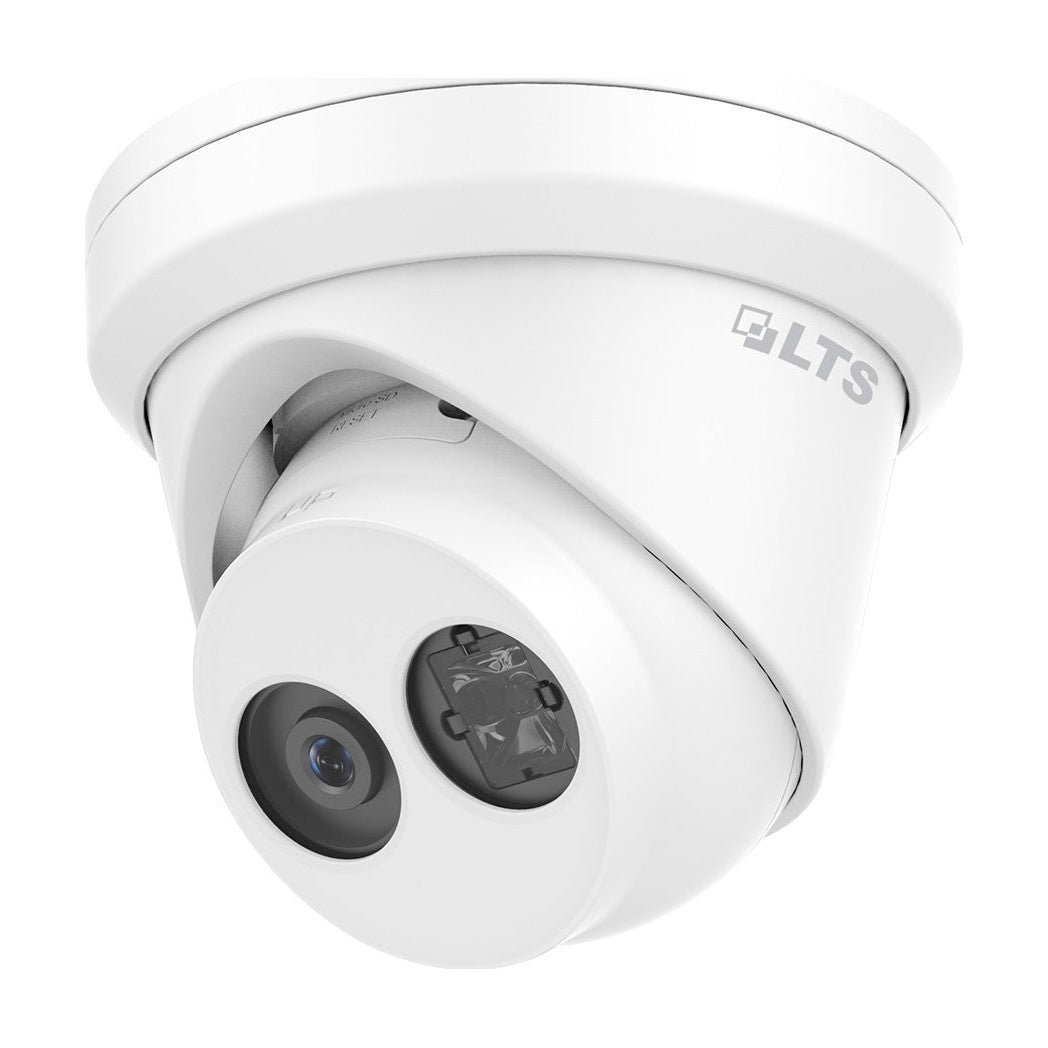

LTS CMIP3382NW-28MA 8MP Network Matrix IR Turret Camera w/ Built-in Microphone
Sale price
$222.30
Regular price
$305.00
This platinum series 6-megapixel Network Matrix IR Turret Camera w/ Built-in Microphone camera features a 2.8 mm fixed lens. It has a dust and water resistance of IP66. This camera contains a Micro SD/SDHC/SDXC Card Slot for up to 128GB. It features an advanced compression of H.265/H.265+. Furthermore, it captures a high-quality image with its 8-megapixel 3840 2160 @15fps resolution.
- 1/2.5" Progressive Scan CMOS
- 3840 2160 @15fps
- 2.8 mm fixed lens
- Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
- H.265, H.265+, H.264, H.264+
- Three streams
- 120dB WDR
- BLC/3D DNR/ROI/HLC
- IR range: Up to 98ft(30 m)
- Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
- 3-Axis adjustment
- Built-in microphone
| Model | CMIP3382NW-28MA |
| Camera Series | Platinum Series |
| Camera Resolution | 8MP |
| Camera Technology | IP / Network |
| Camera Housing | Turret |
| Camera | |
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Min. Illumination | Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day & Night | IR cut filter |
| Wide Dynamic Range | 120 dB |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Lens Type | Fixed lens, 2.8 mm |
| Aperture | F2.0 |
| FOV | 2.8 mm, horizontal FOV 102°, vertical FOV 53°, diagonal FOV 124° |
| Lens Mount | M12 |
| Illuminator | |
| IR Range | Up to 98ft(30 m) |
| Wavelength | 850 nm |
| Video | |
| Max. Resolution | 3840 2160 |
| Main Stream | 50Hz: 12.5fps (3840 2160), 20fps (3072 1728), 25fps (2560 1440, 1920 1080, 1280 720) 60Hz: 15fps (3840 2160), 20fps (3072 1728), 30fps (2560 1440, 1920 1080, 1280 720) |
| Sub-Stream | 50Hz: 25fps (640 480, 640 360, 320 240) 60Hz: 30fps (640 480, 640 360, 320 240) |
| Third Stream | 50Hz: 25fps (1280 720, 640 360, 352 288) 60Hz: 30fps (1280 720, 640 360, 352 240) |
| Video Compression | Main stream/third stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Audio | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3 |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3) |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Smart Feature-Set | |
| Smart Event | Line crossing detection, intrusion detection and face detection |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Face Detection | Yes |
| Linkage Method | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture |
| Region of Interest | 1 fixed region for main stream and sub-stream |
| Image | |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser |
| Day/Night Switch | Day/Night/Auto/Schedule |
| Network | |
| Network Storage | microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5) , watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users, 3 levels: administrator, operator and user |
| Web Browser | Plug-in required live view: IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome 45.0+, Mozilla Firefox52.0+ |
| Interface | |
| Communication Interface | 1 RJ45 100M self-adaptive Ethernet port |
| Audio | 1 audio input (built-in microphone), mono sound |
| Video Output | No |
| Interface Style | Pigtail style interface |
| On-board storage | Built-in micro SD/SDHC/SDXC slot, up to 128 GB |
| General | |
| General Function | Anti-flicker, three streams, heartbeat, mirror, 4 regions of privacy mask |
| Reset | Reset via reset button on camera body, web browser and client software |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, ø 5.5 mm coaxial power plug; PoE (802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.5 A, max. 6 W; PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 7.5 W |
| Material | Metal |
| Dimension | Camera: ø 127.3 95.9 mm (ø 5" 3.8") With package: 150 150 141 mm (5.9" 5.9" 5.6") |
| Weight | Camera: Approx. 635 g (1.4 lb.) With package: Approx. 890 g (1.96 lb.) |
| Approval | |
| EMC | 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015 |
| Safety | UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015 |
| Chemistry | 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006 |
| Protection | Ingress protection: IP66 (IEC 60529-2013) |
