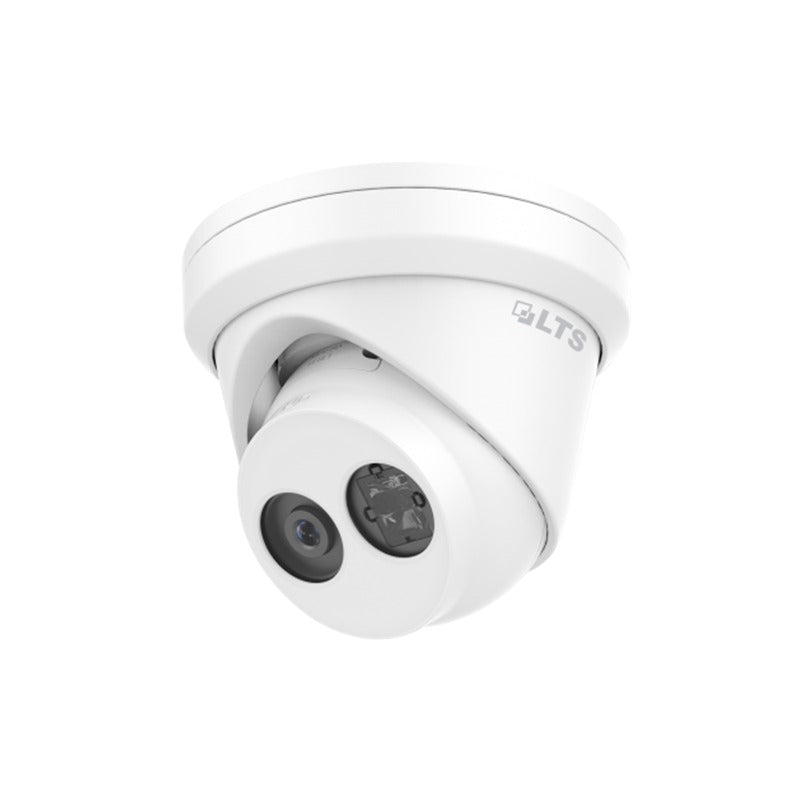

LTS CMIP3342W-28M Platinum Turret Network IP Camera 4MP - 2.8mm
Sale price
$176.61
Regular price
$240.00
Protect your home by including Platinum Turret Network IP Camera 4MP - 2.8mm. It is very easy to install and it offers IR Range up to 100 feet. The true WDR 120dB gives you glare free images. It has a 4MP camera with 2.8mm fixed lens. It has a micro SD card slot up to 128GB.
- 4MP High Definition
- Up to 2688x1520@30fps
- 2.8mm Fixed Lens
- 0.018 Lux @ F1.6
- Matrix IR 2.0, IR Range up to 100 feet
- H.265, H.265+, H.264, H.264+ Ready
- True WDR 120dB
- IP67
- MicroSD Slot up to 128GB
- DC 12V, PoE
| Model | CMIP3342W-28M | |
| Camera Series | Platinum Series | |
| Camera Resolution | 4MP | |
| Camera Technology | IP / Network | |
| Camera Housing | Turret | |
| Featured Product | No | |
| Camera | ||
| Image Sensor | 1/3" Progressive Scan CMOS | |
| Min. Illumination | 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR | |
| Shutter Speed | 1/3 s to 1/10,000 s | |
| Lens | 2.8mm, horizontal FOV:98, vertical FOV: 55, diagonal FOV: 114 | |
| Lens Mount | M12 | |
| Day & Night | IR cut filter with auto switch | |
| DNR | 3D DNR | |
| Wide Dynamic Range | True WDR 120dB | |
| Angle Adjustment | Pan:0 ~ 360, Tilt: 0 ~ 75, Rotation: 0 ~ 360 | |
| Compression Standard | ||
| Video Compression | Main stream: H.265/ H.264 Sub stream: H.265/H.264/ MJPEG Third stream: H.265/ H.264 |
|
| H.265 / H.265+ Type | Main Profile / Main stream and sub stream support | |
| H.264 / H.264+ Type | Main Profile / High Profile / Main Stream and Sub Stream Support | |
| Video Bit Rate | 32 Kbps ~ 16 Mbps | |
| Dual Stream | Support | |
| Image | ||
| Max. Resolution | 2560 1440 | |
| Main Stream | 50Hz:25fps (25601440,23041296,19201080) 60Hz: 30fps (25601440,23041296,19201080) | |
| Sub Stream | 50Hz: 25fps (640 480, 640 360, 320 240) 60Hz: 30fps (640 480, 640 360, 320 240) | |
| Third Stream | 50Hz: 25fps (1280720, 640360, 352288) 60Hz: 30fps (1280720, 640360, 352240) | |
| Behavior Analysis | Line Crossing Detection, Intrusion Detection | |
| Network | ||
| Network Storage | Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR | |
| Alarm Trigger | Motion Detection, Tampering Alarm, Intrusion Detection, Line Crossing Detection, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted | |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | |
| General | One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter | |
| Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI | |
| Interface | ||
| Communication Interface | 1 RJ45 10M/100M Ethernet port | |
| Reset | Yes | |
| General | ||
| Working Temperature /Humidity |
-22 F ~ 140 F (-30 C ~ 60 C) Humidity 95% or less (non-condensing) |
|
| Power Supply | DC12V 25%, | |
| Power Consumption | 12 VDC, 0.5A, Max. 6W | |
| IR Range | Up to 100ft | |
| Weather Proof Ratings | IP67 | |
| Dimensions | 5.01″ 3.78″ (Φ 127.3 95.9 mm) | |
| Weight | 1.3 lb. (610g) | |
